Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-84 Sub-Covers Assembly 990166 Parts Listing Key # Part # Description Quantity 1 001849 SUB FRAME BEZEL, RIGHT HAND 1 2 001850 SUB FRAME BEZEL…
Illustrated Parts Breakdown
1-83

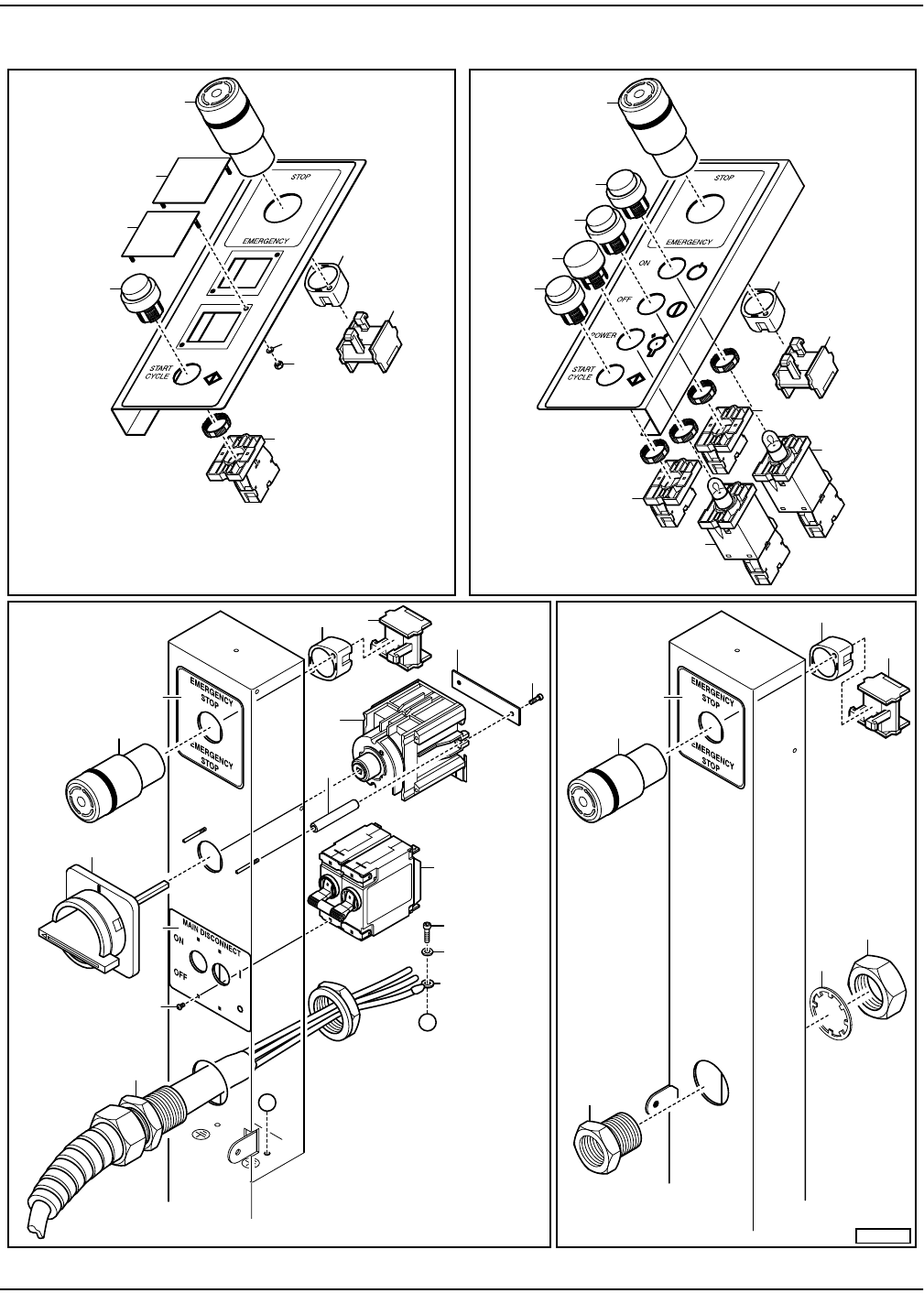

Sub-Covers Assembly 990166 (2 of 2)
12
24
28
26
11
26
25
15
13
38
12
26
25
A
A
Green
Ground Wire
FRONT LEFT FRONT RIGHT
REAR LEFT REAR RIGHT
990166_2
26
20
18
22
21
23
23
19
19
*
29
*
31
*
30
39
35
40
*
*
Note: These parts are not part
of 990166. Shown here for
mounting locations
31
*
31
*
26
9
9
20
19
37
36
26
25
26
25
26
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-84
Sub-Covers Assembly 990166 Parts Listing
Key # Part # Description Quantity
1 001849 SUB FRAME BEZEL, RIGHT HAND 1
2 001850 SUB FRAME BEZEL, LEFT HAND 1
3 001854 BRACKET, PANEL, FRONT RIGHT 1
4 001855 BRACKET, PANEL REAR 1
5 001856 BRACKET, PANEL REAR 1
6 001859 BRACKET, PANEL LEFT 1
7 001865 BRACKET, STIFFENER, BACK RIGHT HAND 1
8 001866 BRACKET, STIFFENER, BACK LEFT HAND 1
9 001901 PANEL, FILLER, TEMP 2
10 1005594 SUPPORT, CROSS-BRACE, SOLVENT 1
11 P0947 LABEL, ‘CIRCUIT BREAKER’ 1
12 P0964 DECAL, EMERGENCY STOP 2
13 P2052 CABLE, STRAIN RELIEF 1
14 P2596 SWITCH, SELECTOR, ROTATING, ON-OFF 1
15 P2597 HANDLE, POWER SWITCH 1
16NS P2977 OUTLET, AC POWER 1
17NS P3020 FITTING, UNION "Y" 6
18 P3175 LIGHT, WHITE PILOT 1
19 P3180 BLOCK, CONTACT 3
20 P3181 PUSH BUTTON, GREEN, ILLUMINATED 2
21 P3185 PUSH BUTTON, GREEN, NON-ILLUMINATED 1
22 P3186 PUSH BUTTON, RED, ILLUMINATED 1
23 P3187 COLLAR, MOUNTING 2
24 P3302 STANDOFF, 3/8" RD. ,F/F, 8-32 ALUMINUM 2
25 P7062 SWITCH, CONTACT 2XNC, GOLDFLASHED SILVER 4
26 P7061 ACTUATOR, EMERGENCY PUSH BUTTON 4
27NS P5537 TUBING, POLYURATHANE 24.0 IN.
28 P2596 SWITCH, SELECTOR, ROTATING, ON-OFF 1
29 P2560
P2561
30 AMP CIRCUIT, BREAKER
20 AMP CIRCUIT, BREAKER
1
1
quantities are of entire assembly
NS not shown
Illustrated Parts Breakdown
1-85
30 001365 STRAP, BACKING POWERS 1
31 P5159 FITTING, ANCHOR COUPLING 1
32 #8 LOCK NUT —
33 8-32 X 3/8" FHS —
34 8-32 X 1/4" BHS —
35 8-32 X 3/8" SHCS —
36 #10 FLAT WASHER —
37 #10 NYLOCK NUT —
38 6-32 X 3/8" BHS —
39 8-32 X 5/8" SHCS —
40 #8 STAR WASHER —
41 #8 FLAT WASHER —
42 #8 LOCK WASHER —
Sub-Covers Assembly 990166 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
