Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-86 Main Cover Assembly 9900241 (1 of 5) 5 19 60 60 20 56 55 2 Note: Mounting of Left (#5) and Right Hinged Bezel (#6) is identical Mounts to …
Illustrated Parts Breakdown
1-85
30 001365 STRAP, BACKING POWERS 1
31 P5159 FITTING, ANCHOR COUPLING 1
32 #8 LOCK NUT —
33 8-32 X 3/8" FHS —
34 8-32 X 1/4" BHS —
35 8-32 X 3/8" SHCS —
36 #10 FLAT WASHER —
37 #10 NYLOCK NUT —
38 6-32 X 3/8" BHS —
39 8-32 X 5/8" SHCS —
40 #8 STAR WASHER —
41 #8 FLAT WASHER —
42 #8 LOCK WASHER —
Sub-Covers Assembly 990166 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-86

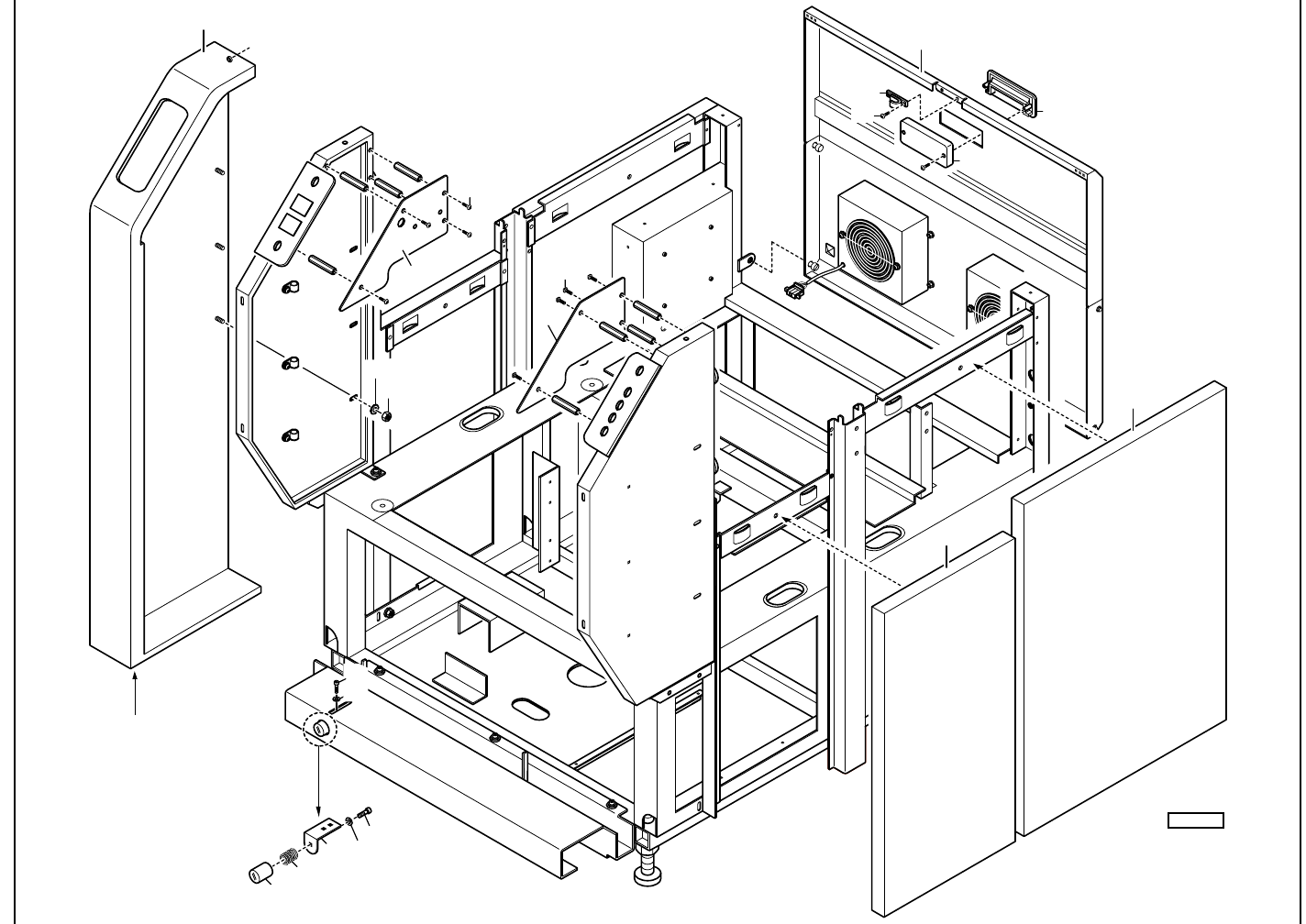

Main Cover Assembly 9900241 (1 of 5)
5
19
60
60
20
56
55
2
Note: Mounting of Left (#5)
and Right Hinged Bezel (#6)
is identical
Mounts to Main Hood Assembly
here - See Sheet 2
4
16
43
46
990241_1
46
11
65
69
41
49
70
67
39
Illustrated Parts Breakdown
1-87
Main Cover Assembly 9900241 (2 of 5)
990241_2
3
77
4
6
61
61
7
72
77
