Ultraprint 2000 Hi

Series Illustrated Parts Breakdown/Engineering Drawings

1-90

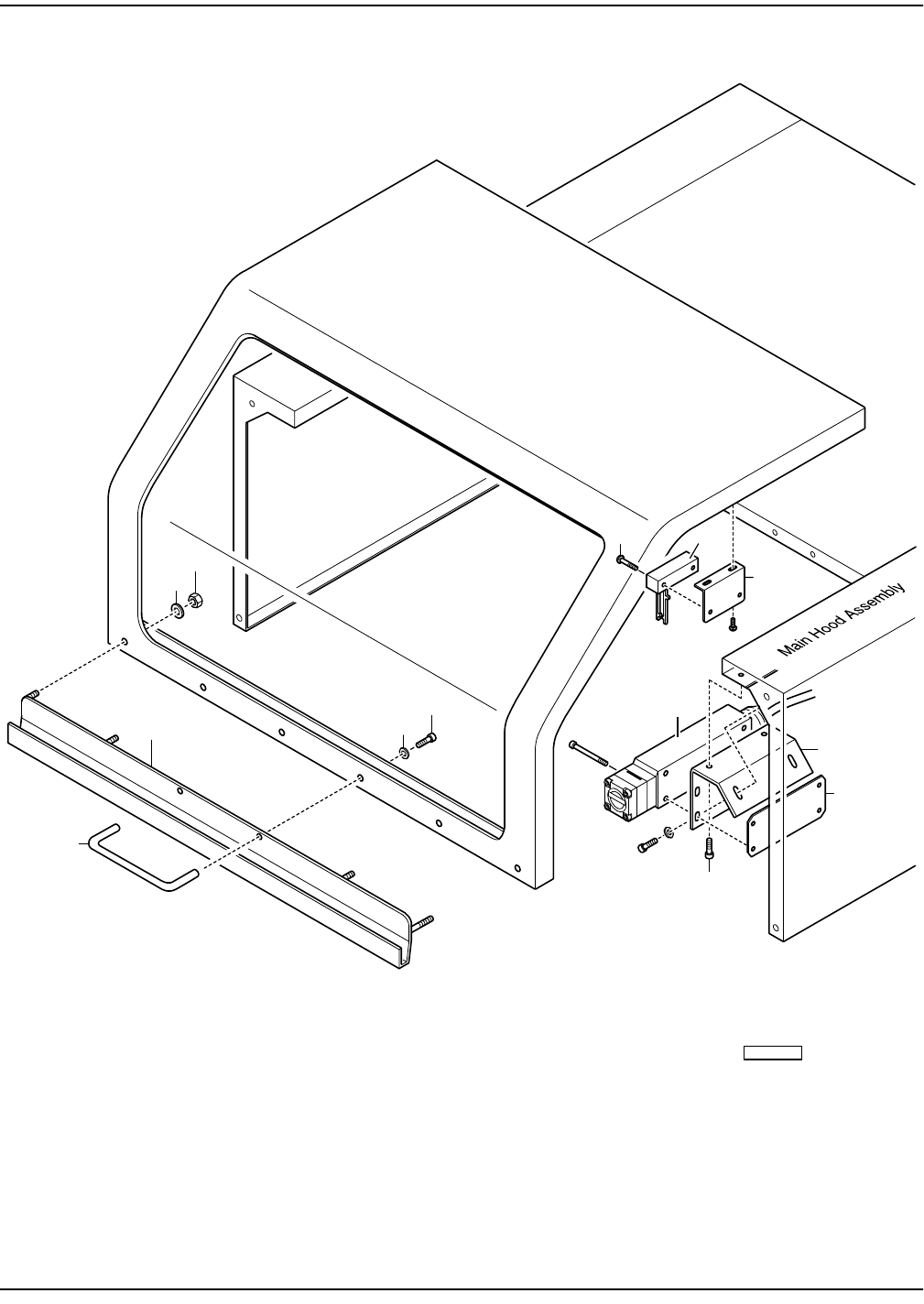

Main Cover Assembly 9900241 (5 of 5)

990241_5

Illustrated Parts Breakdown

1-91

Main Cover Assembly 9900241 Parts Listing

Key # Part # Description Quantity

1 001361 BRACKET, MONITOR ARM 1

2 001844 PANEL, REAR RIGHT 1

3 001845 PANEL, REAR LEFT 1

4 001846 PANEL, FRONT LEFT AND RIGHT 2

5 1000744 BEZEL HINGED LEFT 1

6 1000745 BEZEL HINGED RIGHT 1

7 1005750 DOOR, LOWER, UP2000 1

11 1000752 BRACKET, MAGNET DOOR 2

12 1006064 HOOD LIFT, HINGED 1

15 1005955 ASSEMBLY, MAIN HOOD, HANDLE 1

16 1001021 DOOR, REAR ACCESS, HINGED 1

17 1001392 ASSEMBLY, MAIN HOOD 1

18 1003570 HINGE, HOOD, LOW PROFILE 1

19 1001986 PANEL, WIRING COVER, LEFT 1

20 1001987 PANEL, WIRING COVER, RIGHT 1

21 A2-1017 PLATE, MOUNT TRACKBALL 1

22 A2-1020 COVER, MONITOR WIRING 1

23 A2-315 SHUTTLE, CRT ASSEMBLY 1

24 A2-402 BRACKET, MONITOR CONTROL UNIT 1

25 P2230 TRACKBALL 1

26 P2231 DECAL, TRACKBALL 1

27 P2232 DECAL, MACHINE AXIS, TRACKBALL 1

28 P3584 MONITOR, 14" , COLOR 1

29 1002805 LOGO, "HI E" 1

30 1003568 LAMP, FLUORESCENT, ASSEMBLY 1

31 001415 COVER, DRIVE 1

32 1000753 STOP, TAB HOOD 2

33 1000755 WINDOW, HOOD LIFT 1

36 1001409 LOGO, "COOKSON" 1

37 5 X 48 WASHER, TEFLON 2

quantities are of entire assembly

NS not shown

Ultraprint 2000 Hi

Series Illustrated Parts Breakdown/Engineering Drawings

1-92

38 A2-1018 PAD, MONITOR 1

39 P0050 #10 HARDENED WASHER 4

40 P0054 STUD, 10MM BALL 4

41 P1454 MAGNET, BUNTING 1

42 P2109 GROMMET, 5/8" OD X D X 1/16" PANEL 1

43 P3028 CATCH, GRABBER DOOR 1

44 P3799 LOGO, "ULTRAPRINT 2000" 1

45 P3800 LOGO, "MPM CORPORATION" 1

46 P3937 HANDLE, FLUSH, PULL 1

49 P4675 SPRING, COMPRESSION 1

50 P4682 SPRING, GAS 120 LBS. 15.5" EXT LENGTH 2

51NS P4686 RELIEF, STRAIN, TIGHT FITTING 1

52 1005955 HANDLE, MAIN HOOD 1

53 8-32 X 3/8" SHCS

—

54 #8 FLAT WASHER

—

55 #10 LOCK NUT

—

56 #10 FLAT WASHER

—

57 #8 LOCK NUT

—

58 10-32 X 3/8" SHCS

—

59 10-32 X 1/2" FHS

—

60 10-32 X 1/4" BHS

—

61 8-32 X 3/8" BHS

—

62 8-32 X 1/4" BHS

—

63 1/4-20 X 5/8" SHCS

—

64 1/4" LOCK WASHER

—

65 1/4" FLAT WASHER

—

66 8-32 X 3/8" LOW HEAD CAP SCREW

—

67 8-32 X 1/2" SHCS

—

68 #8 LOCK WASHER

—

69 1/4-20 X 3/4" SHCS

—

Main Cover Assembly 9900241 Parts Listing (continued)

Key # Part # Description Quantity

quantities are of entire assembly

NS not shown
