Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-98

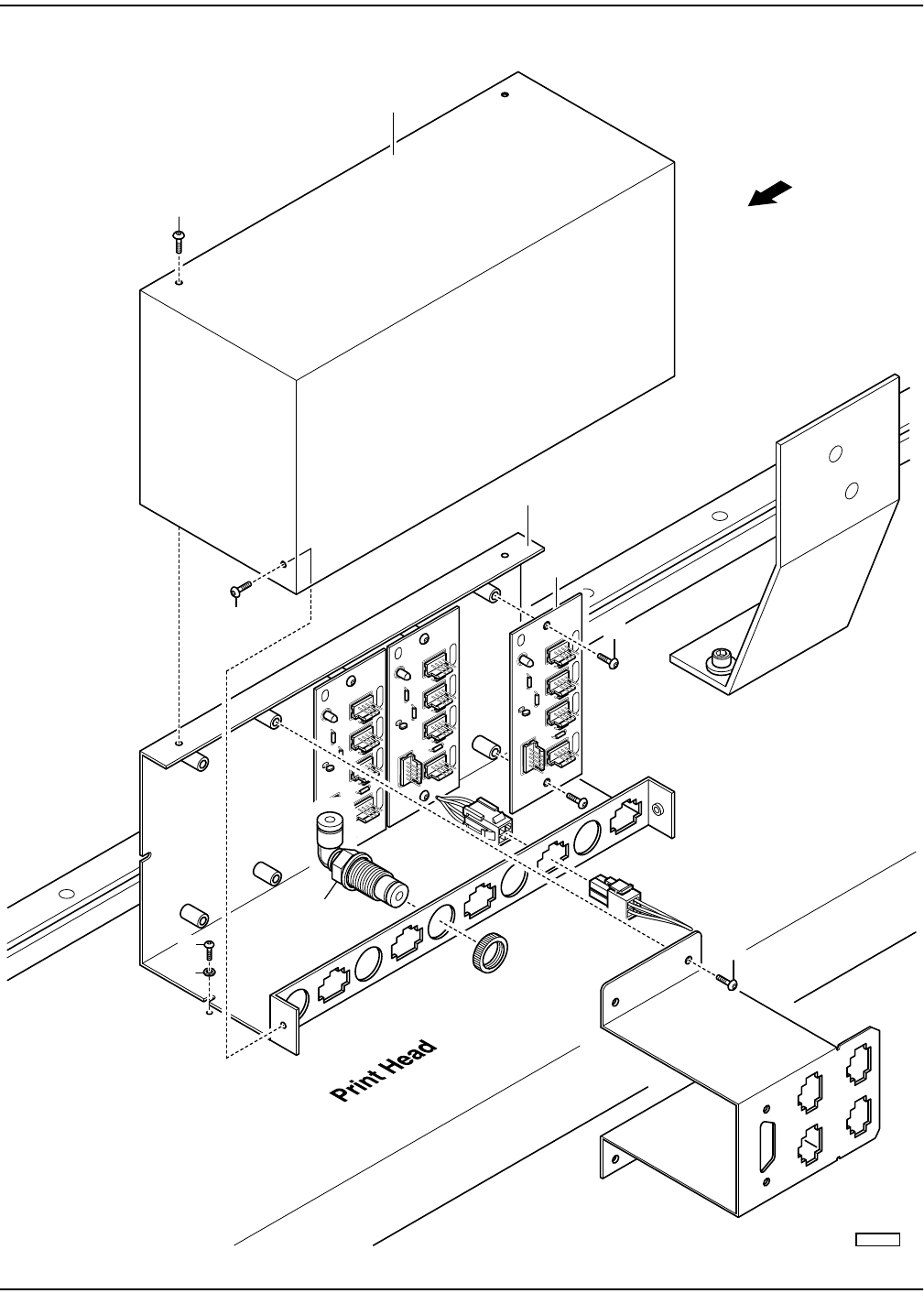

Distribution/Junction Box Assembly 990136 (1 of 1)
1
2
7
6
3
4
4
Junction Box #3
5
990136
7
7
Front of
Printer
Illustrated Parts Breakdown
1-99
Distribution/Junction Box Assembly 990136Parts Listing
Key # Part # Description Quantity
1 001373 BRACKET, JUNCTION BOX 1
2 PC-200 I/O DISTRIBUTION BOARD ASSEMBLY 3
3 P3678 FITTING, ELBOW, BULKHEAD, UNION, 5/32" 5
4 4-40 X 3/8" BHS —
5 #8 FLAT WASHER —
6 001374 COVER, JUNCTION BOX 1
7 8-32 X 3/8" BHS —
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-100

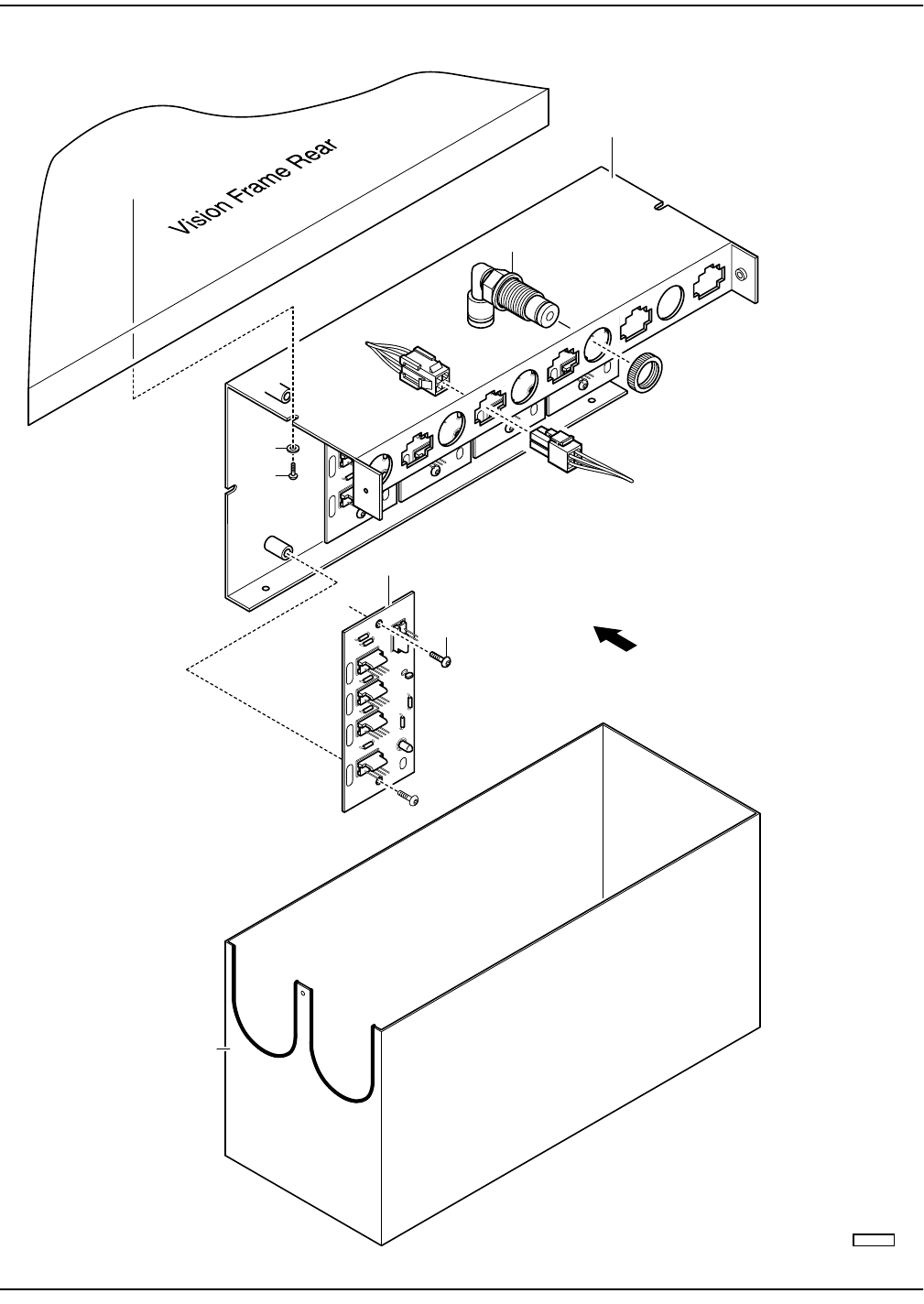

Distribution/Junction Box Assembly 990138 (1 of 1)
1
3
4
6
990138
Junction Box #4
2
7
5
Front of
Printer
