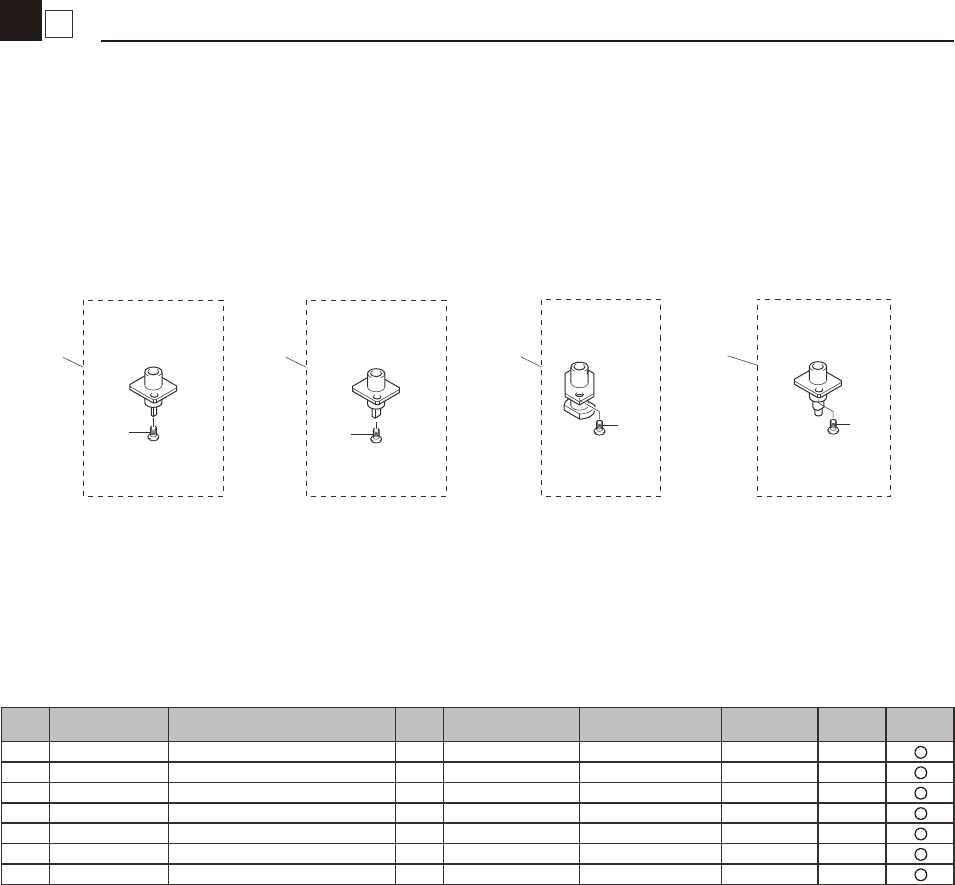

2 6 Nozzle (FNC) Nozzle KV1-080422 1 2 6 7 T ype71F T ype72F 13 T ype79F 11 12 T ype73F 12 No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KV8-M71N1-A1X NOZZLE 71F ASSY . 1 (2004/8/2) OK E 2…
1
6
Nozzle (ST)
6 Nozzle
KV1-080422
4
5
1 2
3
6
Type71A Type72A Type73A Type76AType74A
7
Type79A/89A
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M7710-A1X NOZZLE 71A/81A ASSY 1 (2000/4/10) OK E
2 KV8-M7720-A1X NOZZLE 72A ASSY. 1 E
3 KV8-M7730-00X NOZZLE 73A/83A/93A 1 E
4 KV8-M7740-A0X NOZZLE 74A/84A/94A ASSY. 1 E
5 90990-17J013 O-RING 5 (2002/7/10) OK E
6 KV8-M7760-00X NOZZLE 76A/86A/96A 1 E
7 KV8-M7790-A0X NOZZLE 79A/89A ASSY 1 E
2
6
Nozzle (FNC)
Nozzle
KV1-080422
1
2
6
7
Type71F Type72F
13
Type79F
11
12
Type73F
12
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) OK E
2 KV8-M71U5-00X SCREW 2 E
6 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) OK E
7 KV8-M71U5-00X SCREW 2 E
11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F E
12 KV8-M71U5-00X SCREW 2 E
13 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) E
1
7
Push-In

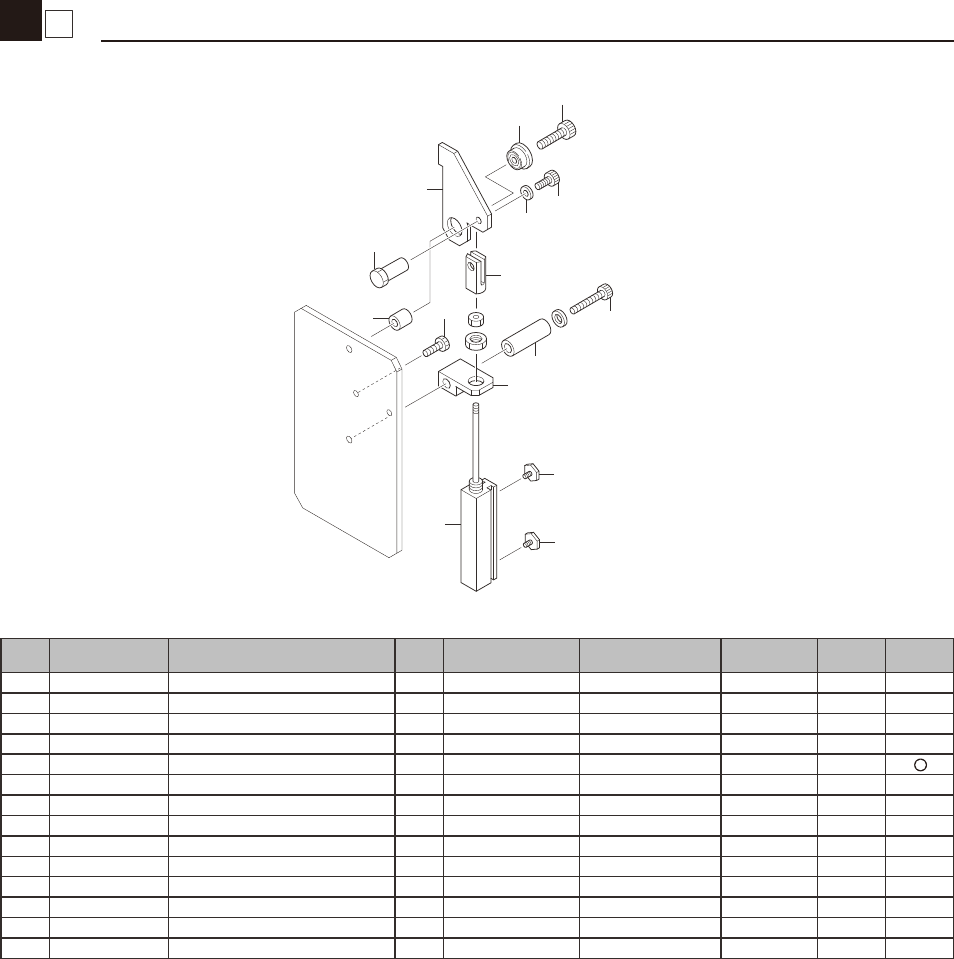

7 Conveyor Unit
KV1-080423
10
11
8
7
5
2
1
12
14
13
4
3
6
9
9
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV1-M9221-00X PLATE,PUSH IN 1 /
2 90990-41J048 COLLAR 1 (2008/4/14) /
3 KV1-M9223-00X HOLDER,CYLINDER 1 /
4 90990-41J049 COLLAR 1 (2008/4/14) /
5 KH4-M9166-00X CYL.,MAIN STOP 1 NDA6-30 B
6 KV1-M9224-00X JOINT,PUSH IN 1 /
7 KV1-M9225-00X PIN,PUSH IN 1 /
8 90933-03J694 BEARING 1 (2001/7/6) OK /
9 KV1-M8502-00X JOINT 2 (2001/3/5) OK /
10 91317-04010 BOLT HEX.SOCKET HEAD 2 /
11 91317-04016 BOLT HEX.SOCKET HEAD 1 /
12 91317-04025 BOLT HEX.SOCKET HEAD 1 /
13 98902-03005 SCREW BINDING HEAD 1 (2006/1/9) OK /
14 92903-03200 WASHER,PLAIN 1 /
