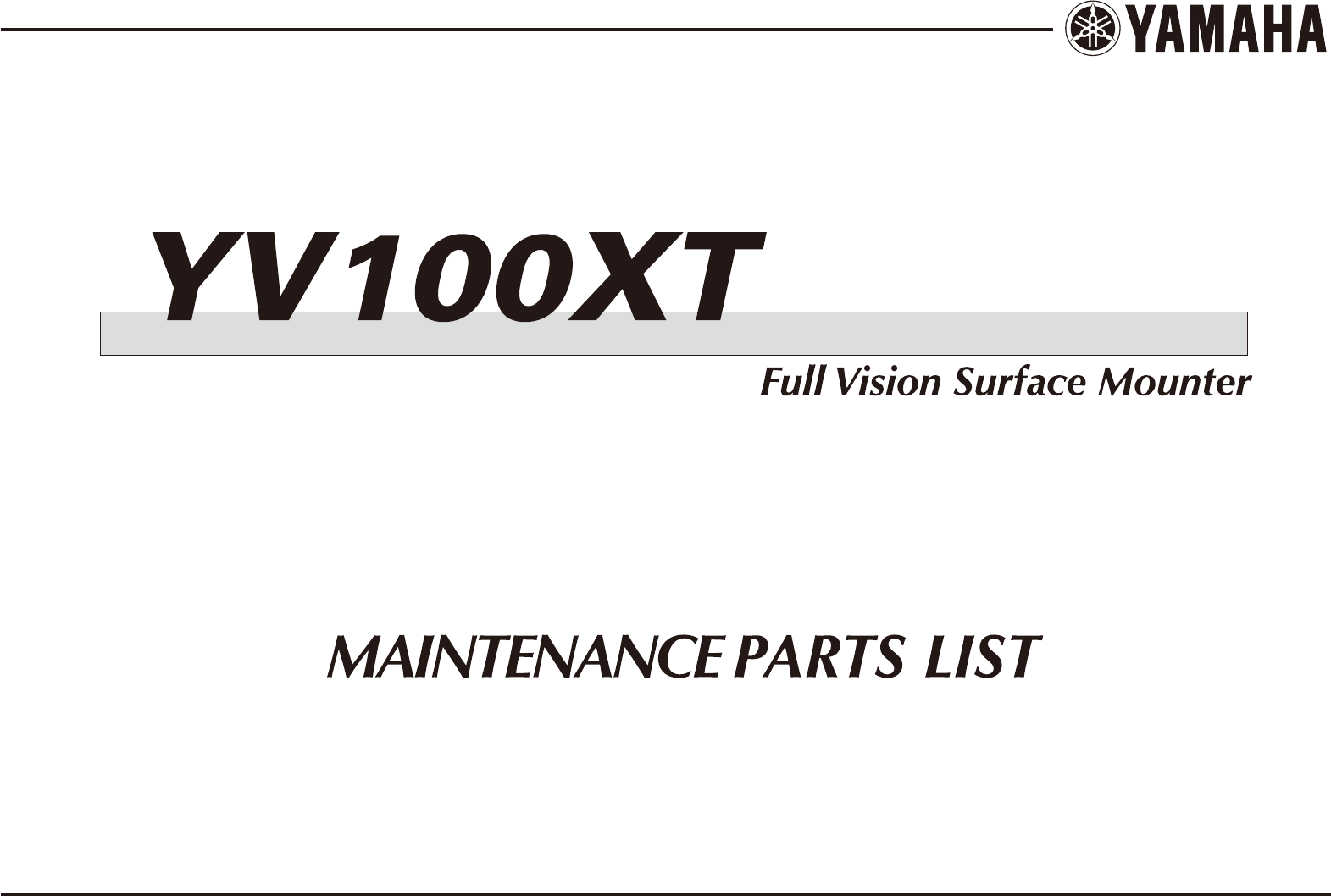

yv100xt_je - 第2页
N ote Rank A : The f unct ion s of thes e par t s gradu ally deter io rate wit h ope ratin g time. Rank B : The mac hine s tops imm ediate ly if the f unc tio ns of the se par ts are di sabl ed. Rank C : The m achin e st…
Note
Rank A : The functions of these parts gradually deteriorate with operating time.
Rank B : The machine stops immediately if the functions of these parts are disabled.
Rank C : The machine still operates even if the functions of these parts are disabled,
because there are many parts.
Rank E : The functions of consumable part gradually deteriorate with operating time.
/ : Maintenance is excluded (The screws are also equal, display is omitted)
Level
: Aims to undergo basic maintenance training and have the capability to do
the job.
Level : Yamaha Corp. aims to render exclusive training
Level : Yamaha Corp. Service Engineering
Level column
Make use of these as reference, “
•
•
”, as mentioned in the Level column.
“
” It is based on taking the basic maintenance training, and being able to do
equal work.
“
” Please contact our company service when it is judged that the customer’s
condition difcult.
From the problem that arises from these, we cannot assume responsibility such as
accidents.
NOTE
Rank A : 機能が徐々に失われる可能性のある部品。
Rank B : 機能を失うとマシンの即停止に繋がる部品。
Rank C : 機能を失っても複数あるのでマシンの即停止とはならない部品。
Rank E : 機能が徐々に失われていく消耗部品。
／ :メンテナンス対象外（ネジ類も同等、但し表示省略）
Level : 基礎メンテナンストレーニングを受けた方、又は同等の作業ができる方が対象。
Level : ヤマハの専用トレーニングを受けた方が対象です。
Level : ヤマハのサービスマンが対象です。
Level 欄について
Level 欄に記載されている
“
•
•
”
はご 参 考としてご 活 用ください 。
“
”
は基礎メンテナンストレーニングを受けた方、又は同等の作業ができる方を
基 準 にして おりま す。
“
”
であってもお客 様が 難しいとご判断された時は弊社サービスまでご連絡ください。
これらに起因する不具合、事故等についての責任は負いかねます。
KV1-0807
Contents
1 Base Section
Base ................................................................1-1
2 Cover Section
Top Cover ........................................................2-1
Base Cover ......................................................2-2
3 Feeder Section
Feeder Holder H (20) ......................................3-1
4 Moving-axis Section
X-axis ...............................................................4-1
Y-axis ...............................................................4-2
YT-axis .............................................................4-3
5 Head Section
Head (SF) .......................................................5-1
Head (FNC) ....................................................5-2
Head Combination ..........................................5-3
6 Nozzle Section
Nozzle (ST) .....................................................6-1
Nozzle (FNC)..................................................6-2
7 Conveyor Unit Section
Push-In ............................................................7-1
Push-Up ..........................................................7-2
Locate-pin .......................................................7-3
Stopper ...........................................................7-4
Edge Clamp .....................................................7-5
Fixed Conveyor (1) ..........................................7-6
Fixed Conveyor (2) ..........................................7-7
Moving Conveyor (1) ......................................7-8
Moving Conveyor (2) ......................................7-9
8 Light Section
Front Light .......................................................8-1
9 Control Section
Control ............................................................9-1
10
Exterior,etc Section
Moniter,etc. ...................................................10-1
