QP-351E-MM P ARTS LIST 2 5 - 5 2 5 . 2 . M F U - 6 E ( D B U N ) 2 5 . 2 . M F U - 6 E ( D B U N ) ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7 x 9 2 0 8 1 7 6 1 6 5 1 7 5 1 6 1 1 7…

100%1 / 221
25.1.MFU-6E(DBUN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
77 S5021M 24
SOCKET
ｿｹｯﾄ SMK-015 OT
78 S2171A 1
JOINT, ONE-TOUCH
ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
79 H3085T 2
BUSHING, RUBBER
ﾌﾞｯｼｭ ｺﾞﾑ G-12 OT
80 H1051Z 1
VALVE, CHECK
ﾊﾞﾙﾌﾞ ﾁｪｯｸ HT-720-02 OT
81 W1089A 6 WASHER ﾜｯｼｬ WSSB20-6-3 FE
82 T50127 2
HANDLE
取手             
0052-60ｸﾛ OT
83 A10208 1 ADAPTER ｱﾀﾞﾌﾟﾀ 1010-6-1/4 OT
84 A1022E 2 ADAPTER ｱﾀﾞﾌﾟﾀ 1034-6-1/4 OT
85 A1022C 1 ADAPTER ｱﾀﾞﾌﾟﾀ 1033-6-1/4 OT
86 Y3069H 1 UNION ﾕﾆｵﾝ KQ2R06-08 OT
87 H1018G 1
HANDLE
ﾊﾝﾄﾞﾙ THA-225-1 OT
88 Y3079A 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-02S OT
89 T2123E 2
HINGE
蝶番             
TH-10R OT
90 K5357H 4 SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X5L FE
91 K5358A 4 SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X10L FE
92 N1076A 4
NUT, HEX
ﾅｯﾄ 六角         
M3 P=0.5 OT
93 W1021A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
94 Y3081K 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2VD08-02S OT
95 DBVH0500 1 NAMEPLATE, CAUTION 銘板 注意 French/English PL
96 DBVH0510 1 SEAL ｼｰﾙ French/English PL
97 BHUF0830 2 NAMEPLATE, CAUTION 銘板 注意 French/Japanese PL
98 BHUF0840 1 NAMEPLATE, CAUTION 銘板 注意 French/Japanese PL
99 DBUN1070 1 COVER ｶﾊﾞｰ FE
100 K5208A 2
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X6L FE
101 DBVH0540 2 NAMEPLATE 銘板 PL
102 DBVH0410 1 SEAL ｼｰﾙ Japanese/English PL
103 DBHV0420 1 MANEPLATE 銘板 OT
104 Y3079A 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQL06-02S OT
105 1 UNION ﾕﾆｵﾝ KQ2T08-06 OT
106 DBUF3030 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
107 K51721 4
SCREW, C/R TRUSS
小ﾈｼﾞ 十穴ﾄﾗｽ M3X5L FE
108 K5215N 2
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M5X25L FE
109 DBVH0560 1 SEAL ｼｰﾙ PL
QP-351E-MM PARTS LIST
25 - 4 25.1.MFU-6E(DBUN)
QP-351E-MM PARTS LIST
25 - 5

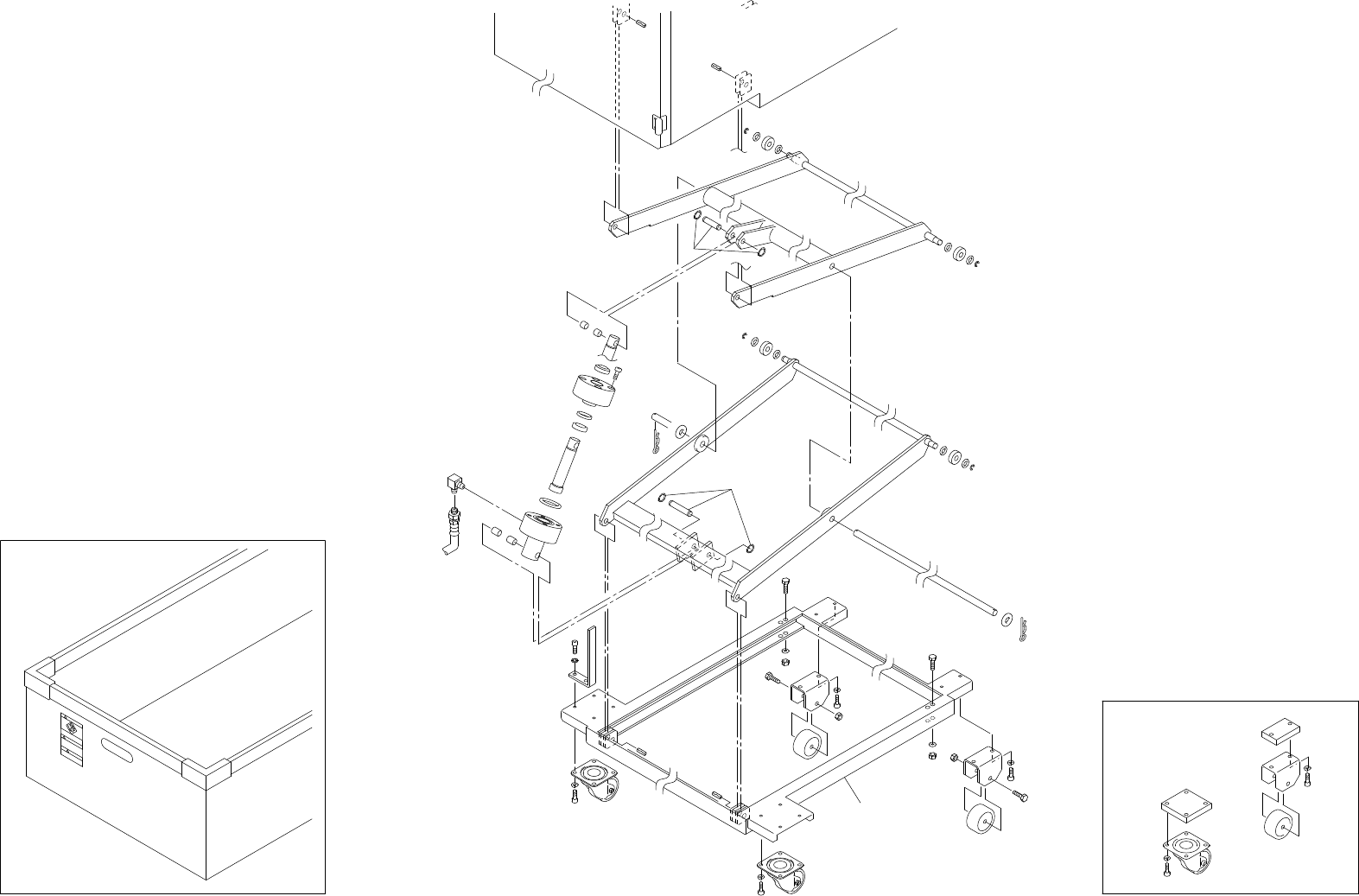

25.2.MFU-6E(DBUN)
25.2.MFU-6E(DBUN)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
26
43
41
11
13
23
43
H=962mm
2
2
4
3
14
10
13
11
38
4
3
21
18
39
39
33
12
10
38
13
14
33
42
43
40
45
44
22
20
1
28
28
19
35
16
36
37
17
34
27
27
41
24
32
40
29
30
5
25
2
25
32
39
39
6
26
26
31
15
31
31
15
31
26
31
15
31
15
31
31
8
Waste tape cutter(Option)
残テ−プカッタ（オプション）
25.2.MFU-6E(DBUN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBUN0010 1 FRAME ﾌﾚｰﾑ FE
2 H5200A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X45L10.9 FE
3 W1052A 2 WASHER, FLAT ﾜｯｼｬ 平 8M/MX1.6X17(1W-8) FE
4 N1089A 2
NUT, HEX
ﾅｯﾄ 六角         
M8 P=1.25 OT
5 DBUN0020 1 LINK ﾘﾝｸ FE
6 DBUN0030 1 LINK ﾘﾝｸ FE
7 DBUN0040 1 SHAFT ｼｬﾌﾄ FE
8 ADBUN8010 1 BOX, DUST BOX ﾀﾞｽﾄ DBUN1010+CGWM0380 OT
10 BHTA0860 2 BKT, ROLLER BKT ﾛｰﾗ FE
11 H5319H 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X8L H=900mm FE
12 H5324A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X20L FE
13 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
14 H5201A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X50L10.9 FE
15 BHUF0550 4 ROLLER ﾛｰﾗ FE
16 BHUF0680 1 ROD ﾛｯﾄﾞ FE
17 BHUF0690 1 COVER 蓋 FE
18 H5344A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X35L FE
19 BHUF0700 1 CYLINDER ｼﾘﾝﾀﾞ FE
20 BHUF0760 1 BKT BKT FE
21 H5321A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L FE
22 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 BHUF1080 2 BLOCK ﾌﾞﾛｯｸ FE
24 BHUF6210 2 BLOCK ﾌﾞﾛｯｸ FE
25 W1057A 2 WASHER, FLAT ﾜｯｼｬ 平 12M/MX2.5X24(1W-12) FE
26 S1026A 4
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-8 OT
27 H4332A 2
BEARING, DRY
ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB1010DU OT
28 H4333A 2
BEARING, DRY
ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB1015DU OT
29 H20151 1
PIN
ﾋﾟﾝ CCG10-45 OT
30 H20150 1
PIN
ﾋﾟﾝ CCG10-33 OT
31 W1061X 8 WASHER, FLAT ﾜｯｼｬ 平 SSWA17-2.0 FE
32 H2099T 2 PIN, SPLIT ﾋﾟﾝ 割 2.5ﾟX15 FE
33 K2023 2 CASTER ｷｬｽﾀ PH-50 OT
34 S3003A 1
SCRAPER
ｽｸﾚｰﾊﾟ SDR-20 OT
35 A5156A 1 O RING Oﾘﾝｸﾞ P35 OT
36 H1184T 1
PACKING
ﾊﾟｯｷﾝ ISI-20 OT
37 R2063W 1 RING, BACKUP ﾘﾝｸﾞ ﾊﾞｯｸｱｯﾌﾟ GN4780V-0 OT
38 N1068A 2 NUT, U ﾅｯﾄ U M8 OT
QP-351E-MM PARTS LIST
25 - 6 25.2.MFU-6E(DBUN)
