27.MFU-6E フェンス(Side2)(DBAL) 27.MFU-6E Fence(Side2)(DBAL) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBAK2040 1 BKT BKT FE 2 H5299A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 …

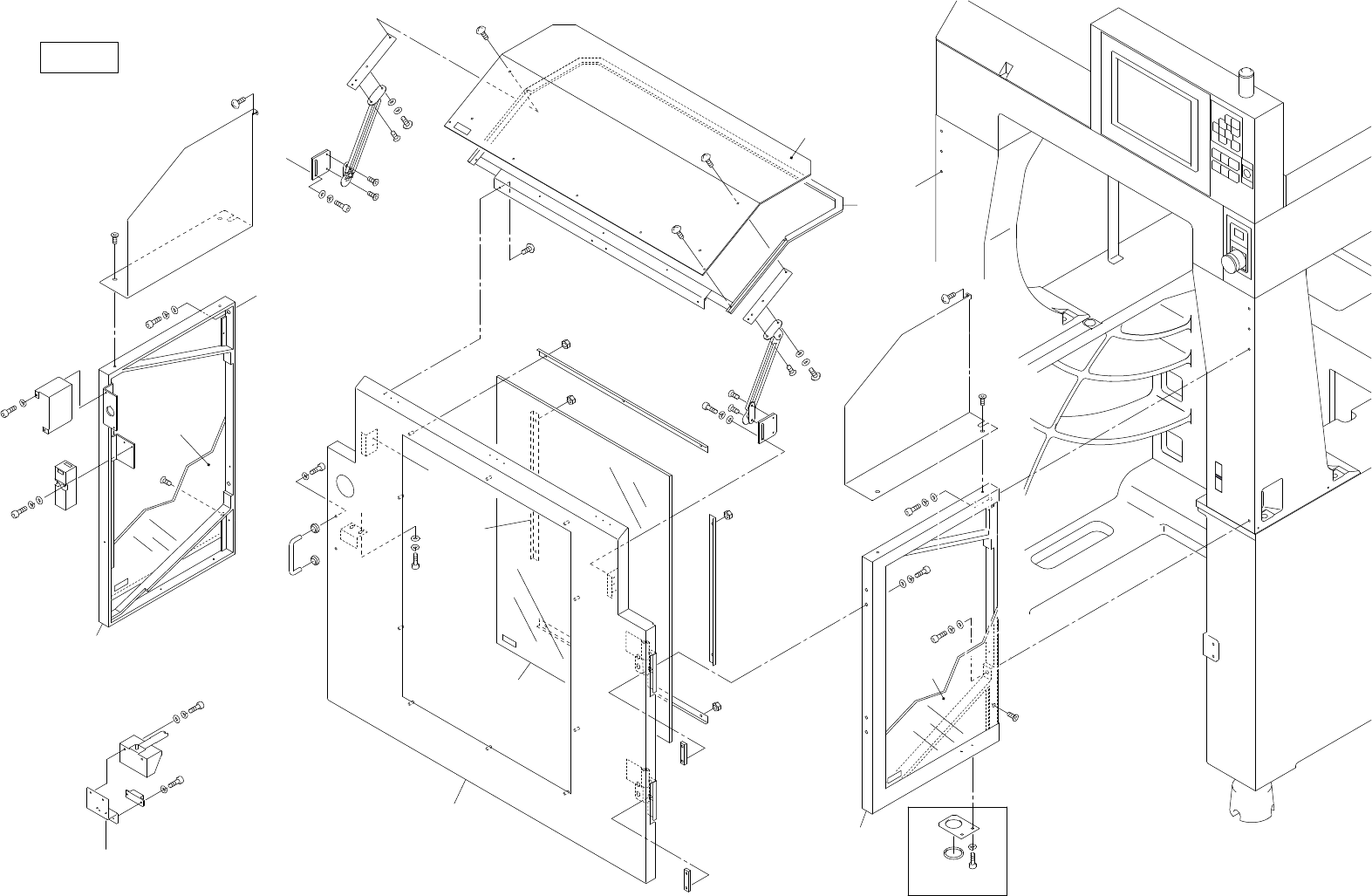

27.MFU-6E Fence(Side2)(DBAL)
27.MFU-6E フェンス(Side2)(DBAL)
27.MFU-6E Fence(Side2)(DBAL)
27.MFU-6E フェンス(Side2)(DBAL)
27 - 1
QP-351E-MM PARTS LIST
1.1.ノズル一覧 (DBPN)
6.1.基板クランプ(CSSS)
6.1.Board clamping unit(CSSS)
Antistatic
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
B
C
A
C
B
Option
30
53
54
55
59
56
58
62
60
1
61
57
69
72
72
71
70
4
7
7
8
8
6
5
3
2
38
39
6
9
9
5
76
41
49
14
13
12
11
15
35
64
68
68
67
36
37
34
63
32
73
33
33
74
32
65
68
68
67
66
66
66
37
34
36
35
45
47
64
17
18
25
24
23
16
17
18
78
77
79
10
20
21
22
28
27
75
26
52
19
42
50
40
48
44
46
43
51
31
29
A
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x10
64
80
27.MFU-6E フェンス(Side2)(DBAL)
27.MFU-6E Fence(Side2)(DBAL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBAK2040 1 BKT BKT FE
2 H5299A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
3 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
4 W1044A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
5 DBAK2050 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ FE
6 N1082A 6
NUT, HEX
ﾅｯﾄ 六角
M5 P=0.8 OT
7 DBAK2060 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ FE
8 N1082A 4
NUT, HEX
ﾅｯﾄ 六角
M5 P=0.8 OT
9 BHAK0541 2 NUT ﾅｯﾄ FE
10 DBAL0470 1 DOOR 扉 FE
11 H5326A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X25L FE
12 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
13 W1045A 4 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
14 DBAK2661 1 COVER ｶﾊﾞｰ FE
15 H5324A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L FE
16 H5327A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X30L FE
17 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
18 W1045A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
19 DBAK2671 1 COVER ｶﾊﾞｰ FE
20 H5324A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L FE
21 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
22 W1045A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
23 DBAK2680 1 COVER ｶﾊﾞｰ FE
24 K5208A 1
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X6L FE
25 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L FE
26 DBAK2690 1 COVER ｶﾊﾞｰ FE
27 K5208A 1
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X6L FE
28 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L FE
29 DBAK2550 1 COVER ｶﾊﾞｰ FE
30 H5286A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X6L FE
31 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
32 DBAK2570 2 NUT ﾅｯﾄ FE
33 K5209A 4
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X8L FE
34 DBAK2630 2 PLATE ﾌﾟﾚｰﾄ FE
35 H5289A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
36 W1022A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
37 W1043A 4 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
QP-351E-MM PARTS LIST
27 - 2
27.MFU-6E フェンス(Side2)(DBAL)
27.MFU-6E Fence(Side2)(DBAL)
27.MFU-6E フェンス(Side2)(DBAL)
27.MFU-6E Fence(Side2)(DBAL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
38 ADBAK8210 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Brown OT
39 ADBAK8300 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Clear OT
40 ADBAK8270 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Brown OT
41 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L Brown FE
42 ADBAK8280 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Brown OT
43 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L Brown FE
44 ADBAL8210 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Brown OT
45 K5204A 5
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M3X8L Brown FE
46 ADBAL8220 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Clear OT
47 K5204A 5
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M3X8L Clear FE
48 ADBAK8330 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Clear OT
49 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L Clear FE
50 ADBAK8340 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ Clear OT
51 K5359E 2
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L Clear FE
52 S31991 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-PA591 OT
53 H5294A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X30L FE
54 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
55 W1041A 2 WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
56 S31975 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z13 OT
57 H5295A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X35L FE
58 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
59 W1041A 2 WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
60 M1012B 1 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-272-2(1787) OT
61 H5274A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6L FE
62 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
63 S3242A 1 STAY ｽﾃｰ TM-81-2R(5104) OT
64 K5359A 3
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M4X6L FE
65 S3241A 1 STAY ｽﾃｰ TM-81-2L(5107) OT
66 K5359A 3
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M4X6L FE
67 K5210A 2
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X10L FE
68 W1043A 4 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
69 T50125 1
HANDLE
取手
THA-31NO.4-3404A OT
70 H5300A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
71 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
72 W1004B 2
WASHER
ﾜｯｼｬ THA-268-2(3452) FE
73 DBAL0570 1 FRAME ﾌﾚｰﾑ FE
74 K5203A 4
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M3X6L FE
QP-351E-MM PARTS LIST
27 - 3
27.MFU-6E フェンス(Side2)(DBAL)
27.MFU-6E Fence(Side2)(DBAL)
