QP-351E-MM P ARTS LIST 3 1 - 1 3 1 . 残テープカッタ( P F U - 3 E , M F U - 6 E ) ( オプション) ( D B V C ) 3 1 . W a s t e t a p e c u t t e r ( P F U - 3 E , M F U - 6 E ) ( O p t i o n ) ( D B V C ) 3 1 . 残テープカッタ( P F U - 3 E , M …

100%1 / 221
30.MFU-6E エアー配管図(DBWB)
30.MFU-6E Pneumatic circuit diagram(DBWB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 Y3079A 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-02S FE
2 S2173B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01 FE
3 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL F15T1-F3-PL3DC24V OT
4 DBVH0180 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL OT
5 S1053E 2 SILENCER ｻｲﾚﾝｻ KM-10 OT
6 2 UNION ﾕﾆｵﾝ F15Z-J OT
7 K5348D 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS3001F-06 OT
8 Y3020F 2 UNION ﾕﾆｵﾝ TL6-01M OT
9 S2204A 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MDUB40-150DM-A73HLS OT
10 Y3069H 1 UNION ﾕﾆｵﾝ KQ2R06-08 OT
11 S2171A 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
12 DBUF3030 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
13 S5021M 12
SOCKET
ｿｹｯﾄ SMK-015 OT
14 Y3077H 2 UNION ﾕﾆｵﾝ KQ2LU08-02S OT
QP-351E-MM PARTS LIST
30 - 2
30.MFU-6E エアー配管図(DBWB)
30.MFU-6E Pneumatic circuit diagram(DBWB)
QP-351E-MM PARTS LIST
31 - 1

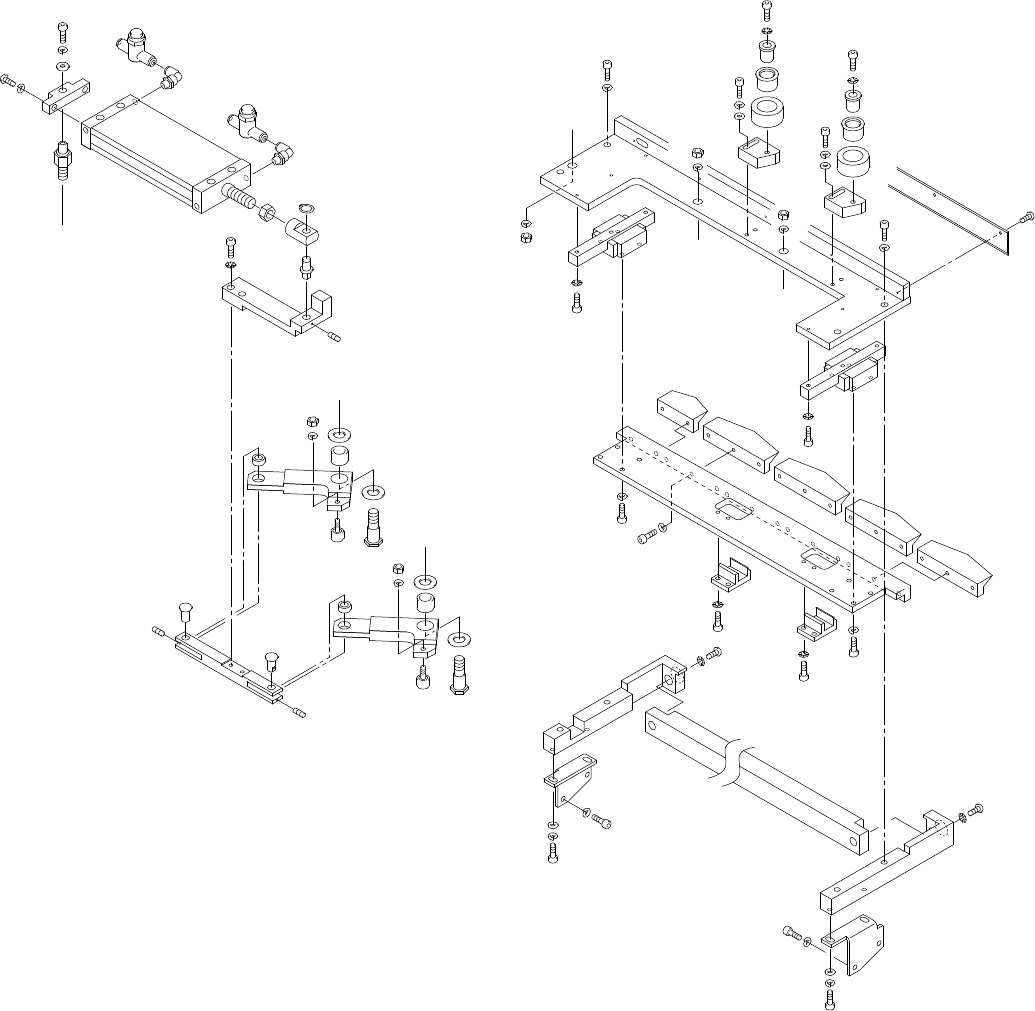

31.残テープカッタ(PFU-3E,MFU-6E)(オプション)(DBVC)
31.Waste tape cutter(PFU-3E,MFU-6E)(Option)(DBVC)
31.残テープカッタ(PFU-3E,MFU-6E)(オプション)(DBVC)
31.Waste tape cutter(PFU-3E,MFU-6E)(Option)(DBVC)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
64
65
3
1
27
28
31
32
33
12
13
15
16
31
32
29
28
27
42
30
11
26
14
45
51
50
49
69
58
68
67
68
34
66
54
2
20
21
6
7
40
41
39
48
47
46
53
52
51
50
49
45
7
6
36
37
36
37
6
7
40
41
59
60
60
59
48
47
46
53
52
10
9
10
9
71
70
71
70
55
55
25
24
23
63
62
43
43
43
C
B
B
C
58
67
68
68
66
69
34
54
38
18
22
17
65
64
4
61
72
A
A
19
44
43
35
35
5
39
8
56
57
x7
31.残テープカッタ(PFU-3E,MFU-6E)(オプション)(DBVC)
31.Waste tape cutter(PFU-3E,MFU-6E)(Option)(DBVC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBVC0050 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
2 K52621 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M8X25L FE
3 W1025A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
4 DBVC0060 1 JOINT, KNUCKLE ｼﾞｮｲﾝﾄ ﾅｯｸﾙ FE
5 DBVC0071 1 PLATE ﾌﾟﾚｰﾄ FE
6 H5302A 22
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L FE
7 W1023A 22
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
5M/M FE
8 DBVC0081 1 BKT BKT FE
9 H5341A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X20L FE
10 W1025A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
11 DBVC0091 1 BKT BKT FE
12 K5263A 1
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M12X20L FE
13 W1016A 1
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-12-H FE
14 DBVC0101 1 BKT BKT FE
15 K5263A 1
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M12X20L FE
16 W1016A 1
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-12-H FE
17 DBVC0121 1 BOLT ﾎﾞﾙﾄ FE
18 S1031A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ STW10 OT
19 DBVC0130 1 PIN, PIVOT ﾋﾟﾝ 支点 FE
20 N1096A 1
NUT, HEX
ﾅｯﾄ 六角         
M12 P=1.75 OT
21 W1027A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M FE
22 DBVC0140 1 BLOCK ﾌﾞﾛｯｸ FE
23 H5263C 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X16L FE
24 W1012A 2
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
25 N4021A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X6L FE
26 DBVC0171 1 BKT, SUPPORT BKT 支え FE
27 H5322A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L FE
28 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
29 W1045A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
4W-6 FE
30 DBVC0181 1 BKT, SUPPORT BKT 支え FE
31 H5322A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L FE
32 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
33 W1045A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
4W-6 FE
34 DBVC0190 2 LEVER ﾚﾊﾞｰ FE
35 DBVC0201 2 BLOCK ﾌﾞﾛｯｸ FE
36 H5299A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
37 W1012A 4
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
QP-351E-MM PARTS LIST
31 - 2
31.残テープカッタ(PFU-3E,MFU-6E)(オプション)(DBVC)
31.Waste tape cutter(PFU-3E,MFU-6E)(Option)(DBVC)
