32.MTU-9E TZ軸(DBTN) 32.MTU-9E TZ-axis(DBTN) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 114 H5300A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE 115 DBTN0391 1 GUIDE ｶﾞｲﾄ…

100%1 / 221
32.MTU-9E TZ軸(DBTN)
32.MTU-9E TZ-axis(DBTN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
75 N4028A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X6L FE
76 BHTA0651 2 PULLEY ﾌﾟｰﾘ OT
77 BHTA0660 1 PULLEY ﾌﾟｰﾘ AL
78 BHTC0120 1 SHAFT ｼｬﾌﾄ FE
79 N1089A 1
NUT, HEX
ﾅｯﾄ 六角         
M8 P=1.25 OT
80 W1025A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
81 W1052A 1 WASHER, FLAT ﾜｯｼｬ 平 8M/MX1.6X17(1W-8) FE
82 BHTC0130 1 BLOCK ﾌﾞﾛｯｸ FE
84 IPA5260 2 COLLAR ｶﾗｰ FE
85 IPB0420 1 COLLAR ｶﾗｰ FE
86 ABHTA2080 60 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ OT
87 ABHTB1030 20 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ OT
88 SAM6590 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
89 H5300A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
90 W1012A 4
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
91 N4001W 1 SCREW ﾈｼﾞ M4X8 No.1型(ﾕﾘｱﾈｼﾞ) FE
92 H4567A 2
BEARING UNIT
ﾍﾞｱﾘﾝｸﾞﾕﾆｯﾄ WBK08-11-DB OT
93 H5276A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
94 W1010A 8
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L FE
95 H30712 2 BUSHING ﾌﾞｼｭ PL006X017KE OT
96 A10105 1 ADJUSTER ｱｼﾞｬｽﾀ AJST6-30 OT
97 H4116D 2
BEARING
ﾍﾞｱﾘﾝｸﾞ RF-2280ZZ OT
98 S1024A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-6 OT
99 A10624 1 AMPLIFIER, SENSOR ｱﾝﾌﾟ ｾﾝｻ PS-T1 OT
100 A10627 3 AMPLIFIER, SENSOR ｱﾝﾌﾟ ｾﾝｻ PS-T2 OT
102 H4567H 1 BELT ﾍﾞﾙﾄ 1422-3GT-5 OT
103 H3001T 1 FIBER, UNIT ﾌｧｲﾊﾞ ﾕﾆｯﾄ E32-M21 2M OT
104 A1038D 1 AMPLIFIER ｱﾝﾌﾟ E3X-DA11-N 2M OT
105 N4016A 8
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M2X2L FE
106 H5299A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L FE
107 W1023A 9
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
108 DBTN0340 1 GUIDE ｶﾞｲﾄﾞ FE
109 K5257A 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L FE
110 W1011A 2
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
111 DBTN0360 1 GUIDE ｶﾞｲﾄﾞ FE
112 K5257A 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L FE
113 W1011A 2
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
QP-351E-MM PARTS LIST
32 - 4
32.MTU-9E TZ軸(DBTN)
32.MTU-9E TZ-axis(DBTN)
32.MTU-9E TZ軸(DBTN)
32.MTU-9E TZ-axis(DBTN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
114 H5300A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
115 DBTN0391 1 GUIDE ｶﾞｲﾄﾞ FE
116 K5257A 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L FE
117 W1011A 2
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
118 DBTN0401 1 GUIDE ｶﾞｲﾄﾞ FE
119 K5257A 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L FE
120 W1011A 2
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
121 DBTN0430 8 BKT, SENSOR BKT ｾﾝｻ FE
122 K5255T 16
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L FE
123 W1010A 16
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L FE
124 H5324A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X20L FE
125 W1024A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
126 W1013A 3 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H FE
127 DBTN0470 60 SHAFT, ECCENTRIC ｼｬﾌﾄ 偏心 FE
128 DBTN0450 70 ROLLER ﾛｰﾗ PL
129 W1004G 140 WASHER, FLAT ﾜｯｼｬ 平 LRB6-0.5 FE
130 H45836 70 BEARING, ROLLER ﾍﾞｱﾘﾝｸﾞ ﾛｰﾗ SSFY6-12ZZ OT
131 DBTN0440 2 SEAL ｼｰﾙ . PL
QP-351E-MM PARTS LIST
32 - 5
32.MTU-9E TZ軸(DBTN)
32.MTU-9E TZ-axis(DBTN)
QP-351E-MM PARTS LIST
33 - 1

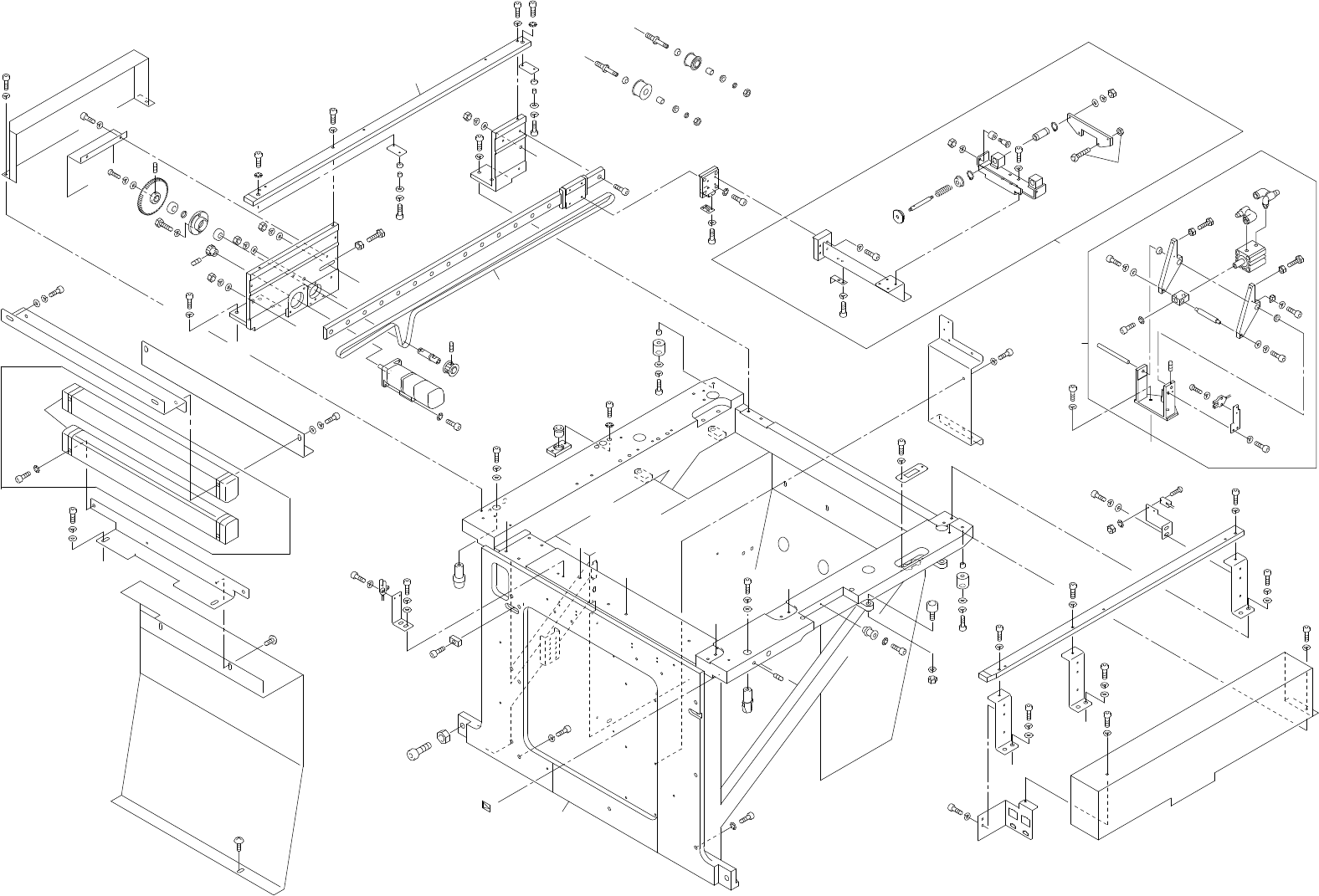

33.MTU-9E シャトル(DBTN)
33.MTU-9E Suttle(DBTN)
33.MTU-9E シャトル(DBTN)
33.MTU-9E Suttle(DBTN)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
68
69
66
67
68
69
66
6
77
111
67
111
79
78
163
162
161
59
158
157
156
172
171
170
169
155
62
53
56
55
54
64
63
53
56
55
54
64
63
53
56
55
54
64
63
71
72
70
105
106
104
136
137
135
132
133
134
145
146
147
150
141
152
153
140
139
149
148
151
138
152
142
143
144
131
125
110
124
103
124
39
125
110
124
154
124
39
107
10843
112
113
114
118
33
32
65
61
60
59
58
50
52
51
42
41
40
57
34
37
38
58
61
60
42
41
40
65
164
165
42
41
40
36
35
126
46
45
44
109
126
159
160
49
48
47
A
E
F
D
C
E
F
F
E
202
92
90
27
5
25
26
24
95
94
8
10
98
97
93
2
3
4
1
1
5
2
3
4
166
7
167
168
179
101
100
15
12
30
31
127
10
8
22
127
95
94
91
29
28
19
23
76
75
74
73
115
117
116
120
119
121
18
88
102
89
80
83
82
81
129
130
128
Option
84
85
86
87
96
B
C
B
D
A
9
10
9
11
X8
200
201
174
174
173
204
203
G
G
175
184
183
177
182
176
197
199
198
188
189
187
193
186
178
181
193
196
195
194
195
196
191
192
190
184
183
182
181
185
180
205
