36.MTU-9E リムーバ(DBTN) 36.MTU-9E Remover(DBTN) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBTN5010 1 RECEPTACLE ﾚｾﾌﾟﾀｸﾙ FE 2 H5275A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M…
QP-351E-MM PARTS LIST
36 - 2

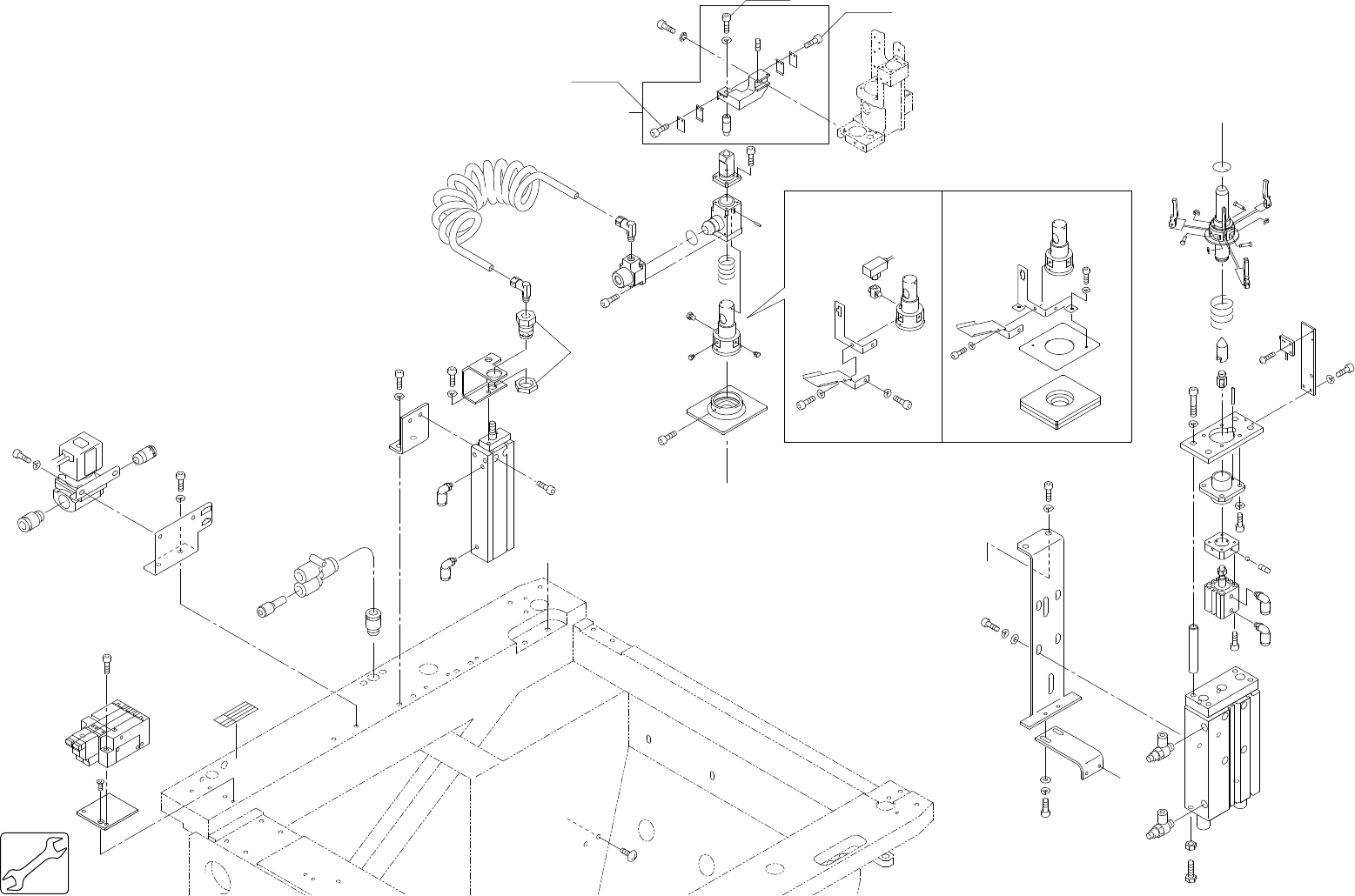

36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
B
A
Empty tray pick-up check
(Option)
A
B
A
B
C
C
Soft remover pad (Option)
x5.5
0.7N･m
0.7N･m
3.9N･m
36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBTN5010 1 RECEPTACLE ﾚｾﾌﾟﾀｸﾙ FE
2 H5275A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L FE
3 DBTN5020 1 HOLDER ﾎﾙﾀﾞ AL
4 DBTN5030 1 PAD ﾊﾟｯﾄ PL
5 H5265A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2X5L FE
6 DBTN5040 1 PANEL, CONNECTOR ﾊﾟﾈﾙ ｺﾈｸﾀ FE
7 H5274A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6L FE
8 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
9 DBTN5050 1 NUT ﾅｯﾄ FE
10 N4019A 4
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M3X4L FE
11 DBTN5060 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE
12 H5334T 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X75L FE
13 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
14 DBTN5070 4 SPACER ｽﾍﾟｰｻ FE
15 DBTN5080 1 PLATE, SENSOR ﾌﾟﾚｰﾄ ｾﾝｻ FE
16 H5275A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L FE
17 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
18 DBTN5090 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
19 H5322A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
20 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
21 H5322A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
22 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 W1045A 4
WASHER, FLAT
ﾜｯｼｬ 平 4W-6 FE
24 DBTN5100 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
25 K5208A 2 SCREW, TRUSS ｺﾈｼﾞ ﾄﾗｽ M4X6L FE
26 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
27 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
28 W1043A 2
WASHER, FLAT
ﾜｯｼｬ 平 4W-4 FE
29 DBTN5111 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
30 H5322A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
31 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
32 DBTN5121 1 PLATE ﾌﾟﾚｰﾄ FE
33 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
34 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
35 DBTN5130 1 BKT BKT FE
36 H5299A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
37 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
QP-351E-MM PARTS LIST
36 - 3
36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
38 DBTN5211 1 NAMEPLATE, SOL 銘板 SOL PL
39 BHTC6030 1 CASE ｹｰｽ AL
40 BHTC6050 1 HOUSING ﾊｳｼﾞﾝｸﾞ AL
41 H5268Z 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2.5X8L FE
42 BHTC6060 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
43 BHTC6530 1 HOLDER ﾎﾙﾀﾞ FE
44 H5289A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
45 W1022A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
46 BHTC6560 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
47 BHTC6580 3 PIN, PIVOT ﾋﾟﾝ 支点 FE
48 BHTC6610 1 PIN ﾋﾟﾝ FE
49 BHTC6650 1 PIN ﾋﾟﾝ FE
50 BHTC6660 3 JAW, FINGER 爪 ﾌｨﾝｶﾞ FE
51 BHTC6670 1 KNUCKLE ﾅｯｸﾙ FE
52 BHTC6680 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
53 IPH0881 4 BLOCK 駒 CO
54 A4066C 2 ELBOW ｴﾙﾎﾞ DL08-01 OT
55 A5100A 1
O RING
Oﾘﾝｸﾞ P18 OT
56 H2044A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 2ﾟX15 OT
57 A4090A 1
ELBOW, UNIVERSAL
ｴﾙﾎﾞ ﾕﾆﾊﾞｰｻﾙ M-5UL OT
58 S4033H 1 SENSOR, PRESSURE ｾﾝｻ 圧力 RSE511-M5 OT
59 Y3066Z 1 UNION ﾕﾆｵﾝ KQ2E08-01 OT
60 H5303A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X22L FE
61 A4066L 2 ELBOW ｴﾙﾎﾞ KQ2LU04-M5 OT
62 M1034Y 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ VV5Q14-02-X106 OT
63 H5294A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X30L FE
64 S2081K 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDAS16X5-B-R-ZE102B1 OT
65 H5283A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X35L FE
66 A4066M 2 ELBOW ｴﾙﾎﾞ KQ2L04-M5 OT
67 A21275 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ SGDA20X100-ZE102B2 OT
68 H5183A 2
BOLT, HEX
ﾎﾞﾙﾄ 六角
M6X20L FE
69 N1085A 2
NUT, HEX
ﾅｯﾄ 六角
M6 P=1.0 OT
70 K5342D 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-06S OT
72 R5014A 1 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ3X21.8 OT
73 S1020A 3
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-2 OT
74 H1130A 1
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL VXD2130-02-5G-B OT
75 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X8L FE
QP-351E-MM PARTS LIST
36 - 4
36.MTU-9E リムーバ(DBTN)
36.MTU-9E Remover(DBTN)
