39.2.グルーヘッド(オプション)(DBHG) 39.2.Glue head(Option)(DBHG) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 118 1 UNION ﾕﾆｵﾝ KQ2H06-01S OT 119 B6982DBHG7310 1 BKT, MOTOR BK…
39.2.グルーヘッド(オプション)(DBHG)
39.2.Glue head(Option)(DBHG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
78 B6982DBHG5400 1 BLOCK ﾌﾞﾛｯｸ AL
79 H5290A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15 FE
80 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
81 A4126A 1 ELBOW ｴﾙﾎﾞ KJW06-M5 OT
82 1 SENSOR ｾﾝｻ E52-CA3AE-2 OT
83 K5268C 1 BLOCK, CLAMP 駒 ｸﾗﾝﾌﾟ SEPN-4 OT
84 N4021A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M3X6 FE
85 B6982DBHG5421 1 FLANGE ﾌﾗﾝｼﾞ AL
86 3 SCREW, COUNTERSUNK 小ﾈｼﾞ 皿(0番1種) M2X2.5 FE
87 B6982DBHG5410 1 COVER 蓋 AL
88 2 SCREW, COUNTERSUNK 小ﾈｼﾞ 皿(0番1種) M2X2.5 FE
89 B6982DBHG3381 1 CAP ｷｬｯﾌﾟ AL
90 B6982DBHG7271 1 PLATE ﾌﾟﾚｰﾄ FE
91 H5276A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X10 FE
92 1 BEARING ﾍﾞｱﾘﾝｸﾞ RB2508UUCC0P5 OT
93 B6982DBHG1021 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ FE
94 Y9420DBHG1091 4 BLOCK, CLAMP 駒 ｸﾗﾝﾌﾟ CO
95 N4016A 2
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M2X2 FE
96 B6982DBHG5523 1 GEAR ｷﾞﾔ FE
97 B6982DBHG5850 2 PIN DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ OT
98 B6982DBHG3750 1 PIN, PARALLEL ﾋﾟﾝ 平行 FE
101 1 O RING Oﾘﾝｸﾞ S5，ﾌｯ素ｺﾞﾑ ﾃﾌﾛﾝｺｰﾃｨﾝｸﾞ OT
102 B6982DBHG7141 1 HOLDER ﾎﾙﾀﾞ OT
103 1 O RING Oﾘﾝｸﾞ S6，ﾌｯ素ｺﾞﾑ ﾃﾌﾛﾝｺｰﾃｨﾝｸﾞ OT
104 B6982ADBHG8031 1 HOLDER ROTATION ﾎﾙﾀﾞ ｶｲﾃﾝ OT
105 1 O RING Oﾘﾝｸﾞ S10，ﾌｯ素ｺﾞﾑ ﾃﾌﾛﾝｺｰﾃｨﾝｸﾞ OT
107 BTRG0750 1 SYRINGE ｼﾘﾝｼﾞ PL
108 ANRG1202 1 FLOAT ﾌﾛｰﾄ OT
109 1 O RING Oﾘﾝｸﾞ S22，ﾌｯ素ｺﾞﾑ ﾃﾌﾛﾝｺｰﾃｨﾝｸﾞ YT
110 B6982DBHG5382 1 ADAPTER ｱﾀﾞﾌﾟﾀ AL
111 B6982DBHG3820 1 ADAPTER ｱﾀﾞﾌﾟﾀ PL
112 H5265A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2X5 FE
113 W1020A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M FE
114 H2039M 1
PIN, SPRING
ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 1.5゜X6L OT
115 1 PLUG ﾌﾟﾗｸﾞ 1TPM OT
116 1
SOCKET
ｿｹｯﾄ 1TSM OT
117 1 ELBOW ｴﾙﾎﾞ 4616SEU-1/8 OT
QP-351E-MM PARTS LIST
39 - 12
39.2.グルーヘッド(オプション)(DBHG)
39.2.Glue head(Option)(DBHG)
39.2.グルーヘッド(オプション)(DBHG)
39.2.Glue head(Option)(DBHG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
118 1 UNION ﾕﾆｵﾝ KQ2H06-01S OT
119 B6982DBHG7310 1 BKT, MOTOR BKT ﾓｰﾀ FE
120 H5273A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X5 FE
121 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
123 K5171A 2
SCREW, C/R TRUSS
小ﾈｼﾞ 十穴ﾄﾗｽ M3X10 FE
124 K30425 1 CLAMPER ｸﾗﾝﾊﾟ TL-2 OT
125 K5175R 4 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X4 OT
126 B6982DBHG5130 1 BKT, WIPING BKT 配線 FE
127 H5274A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6 FE
128 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
129 B6982DBHG5090 1 RETAINER, WIRING 押え 配線 FE
130 H5273A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X5 FE
131 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
132 B6982DBHG7301 1 BKT BKT AL
133 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10 FE
134 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
135 1 HINGE 蝶番 TH-TM-84SUS OT
136 K5169H 4 SCREW, C/R COUNTERSUNK
小ﾈｼﾞ 十穴皿
M2X4 FE
137 1 HOOK ﾌｯｸ TL-2 OT
138 B6982DBHG5740 1 STOPPER ｽﾄｯﾊﾟ AL
139 B6982DBHG5750 1 PIN, GUIDE ﾋﾟﾝ ｶﾞｲﾄﾞ FE
140 1 PIN, PARALLEL ﾋﾟﾝ 平行 3ﾟn6x12 OT
141 S3251A 1 SPRING ｽﾌﾟﾘﾝｸﾞ WL3-10 OT
142 N4016A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M2X2 FE
143 N4016A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M2X2 FE
144 W1042A 1 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
145 W1010A 1
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
146 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
147 W1021A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
148 4 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋(0番1種) M2X4 FE
149 W1020A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M FE
150 W1039A 4 WASHER, FLAT ﾜｯｼｬ 平 1W-2 FE
151 B6982DBHG7210 1 SHEET ｼｰﾄ OT
QP-351E-MM PARTS LIST
39 - 13
39.2.グルーヘッド(オプション)(DBHG)
39.2.Glue head(Option)(DBHG)
QP-351E-MM PARTS LIST
40 - 1

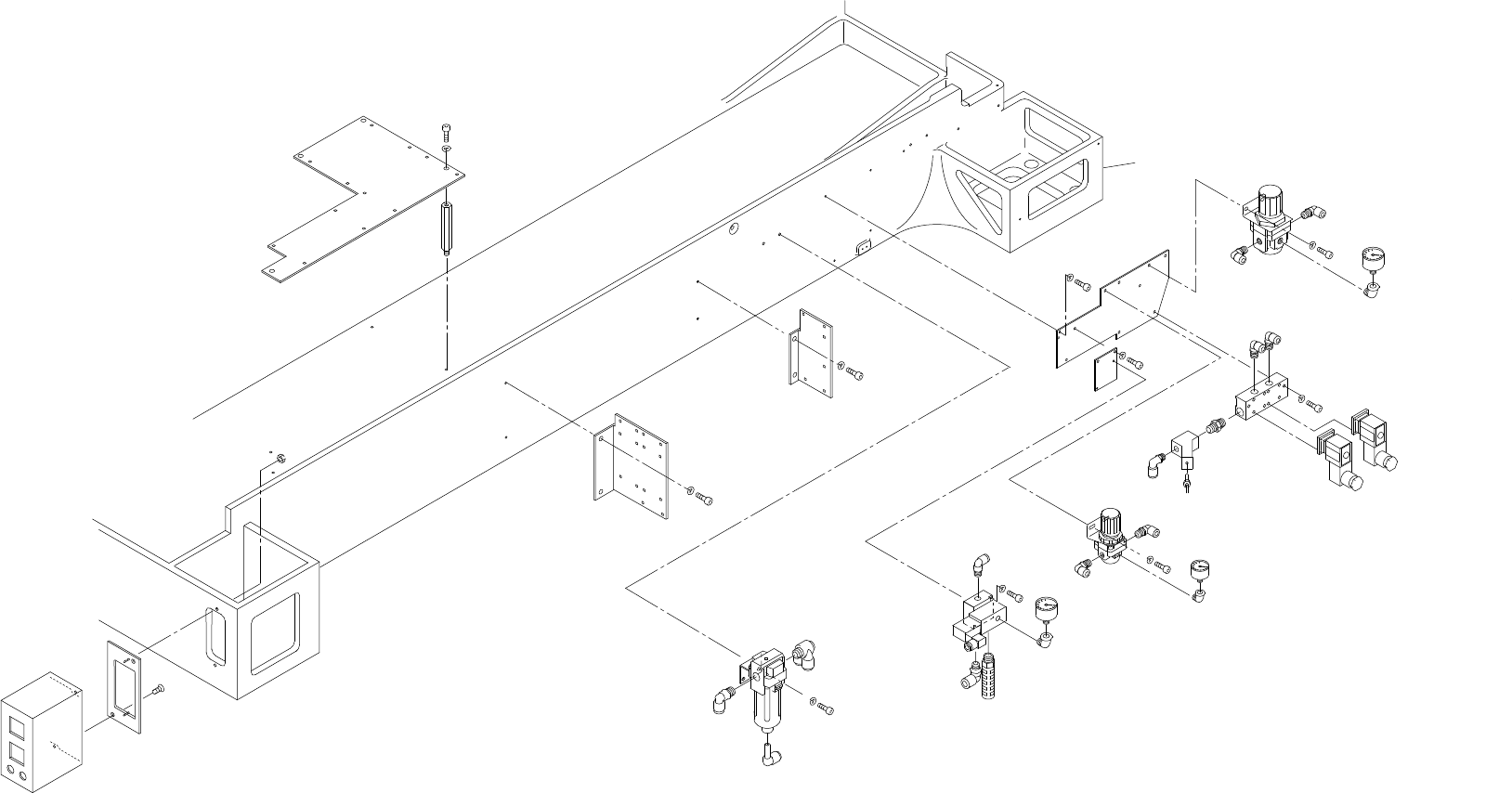

40.Air device 1(Glue head)(Option)(DBWI)
40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
40.Air device 1(Glue head)(Option)(DBWI)
40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
4
6
6
31
8
7
8
6
6
33
32
35
25
5
6
6
11
36
27
10
12
10
13
15
14
9
8
18
15
34
1
3
23
6
19
29
24
2
28
22
21
30
26
20
16
40
39
37
38
41
44
43
42
45
46
49
50
47
48
x6
17
