40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
40.Air device 1(Glue head)(Option)(DBWI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 Y9420DBAB0040 1 COLUMN ｺﾗﾑ OT
2 Y9420DBWI0012 1 BKT BKT FE
3 Y9420DBWI0150 1 PLATE ﾌﾟﾚｰﾄ FE
4 H1027A 1
VALVE, PRESSURE REDUCING
ﾊﾞﾙﾌﾞ 減圧         
ARP3000-02B OT
5 H1029A 1
VALVE, PRESSURE REDUCING
ﾊﾞﾙﾌﾞ 減圧         
AR2000-02B OT
6 Y3079T 7 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-02S OT
7 1 PRESSURE GAUGE 圧力計 G36-2-01 OT
8 H5061E 3
BALL, STEEL
ﾎﾞｰﾙ ｽﾁｰﾙ SL-1/8. OT
9 1 PRESSURE GAUGE 圧力計 G36-7-01 OT
10 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VX2121-00-5DZ OT
11 1 TERMINAL ﾀｰﾐﾅﾙ VX010030A-2-4 OT
12 1 NIPPLE ﾆｯﾌﾟﾙ RNi3/8X1/4 OT
13 BTPZ0210 1 BLOCK ﾌﾞﾛｯｸ FE
14 1 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ E52-CA6D 4M OT
15 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L10-02S OT
16 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L10-03S OT
17 A4066H 1 ELBOW ｴﾙﾎﾞ KQ2L10-99 OT
18 S1059A 1
SILENCER
ｻｲﾚﾝｻ AN200-02 OT
19 1 VALVE, ELEC/AIR PROPORTIO ﾊﾞﾙﾌﾞ ﾃﾞﾝｸｳﾋﾚｲ VY1200-02-N OT
20 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFD3000-03BC OT
21 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2Z10-03S OT
22 H5290A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15 FE
23 H5292A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20 FE
24 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8 FE
25 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8 FE
26 H5320A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X10 FE
27 H5327A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X30 FE
28 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
29 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
30 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
31 1 PRESSURE GAUGE 圧力計 G36-10-01 OT
32 H5320A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X10 FE
33 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
34 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
35 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
36 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
37 B6982DBWI0010 1 COVER ﾌﾀ FE
QP-351E-MM PARTS LIST
40 - 2
40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
40.Air device 1(Glue head)(Option)(DBWI)
40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
40.Air device 1(Glue head)(Option)(DBWI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
38 N1080A 2
NUT, HEX
ﾅｯﾄ 六角         
M4 FE
39 B6982DBWI0021 1 CASE ｹｰｽ FE
40 K5359E 2
SCREW, HEX SOCKET COUNTERSUN
ｺﾈｼﾞ 六角穴皿 M4X8 FE
41 Y9420DBWI0081 1 BKT BKT FE
42 H5323A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18 FE
43 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
44 Y9420DBWI0091 1 BKT BKT FE
45 H5323A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18 FE
46 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
47 Y9420DBWI0110 4 STAND ｽﾀﾝﾄﾞ FE
48 Y9420DBWI0100 1 PLATE ﾌﾟﾚｰﾄ FE
49 H5298A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10 FE
50 W1023A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
QP-351E-MM PARTS LIST
40 - 3
40.エアー機器 1(グルーヘッド)(オプション)(DBWI)
40.Air device 1(Glue head)(Option)(DBWI)
QP-351E-MM PARTS LIST
41 - 1

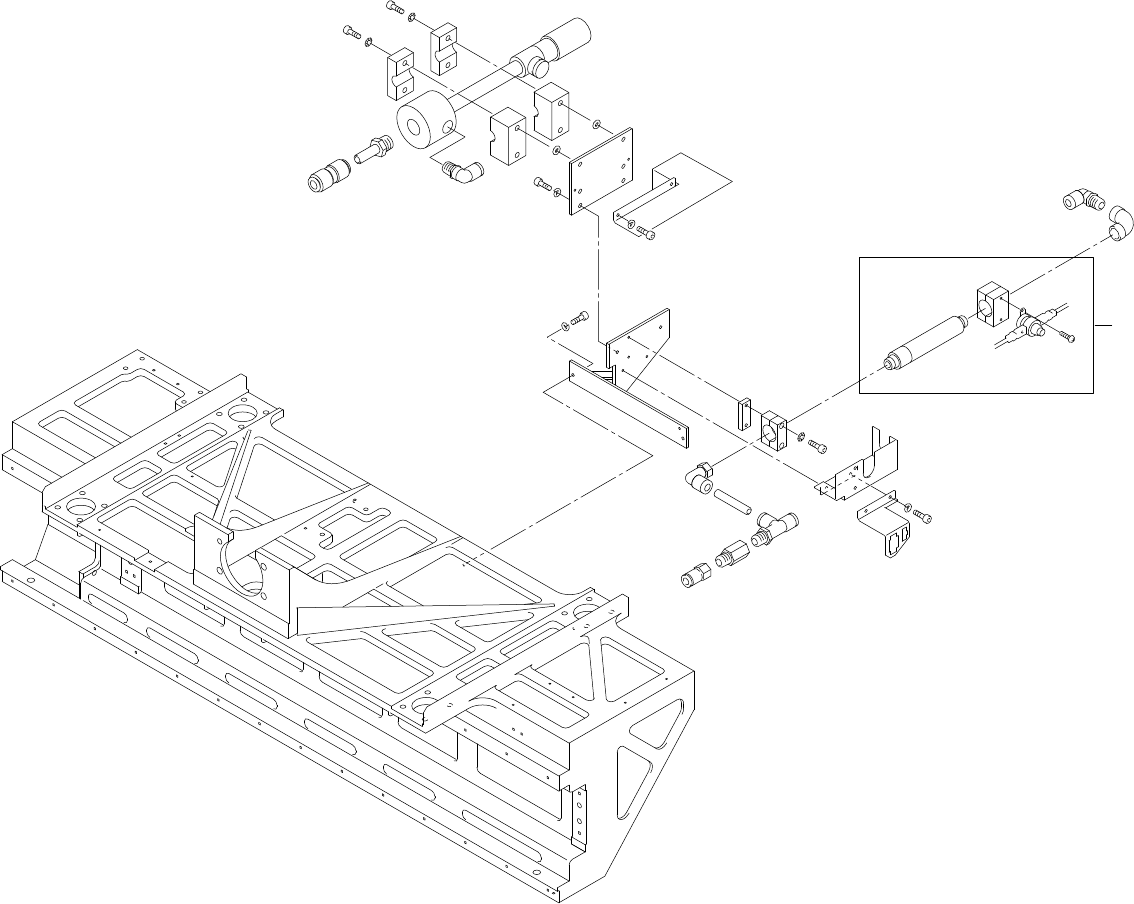

41.エアー機器 2(グルーヘッド)(オプション)(DBWI)
41.Air device 2(Glue head)(Option)(DBWI)
41.エアー機器 2(グルーヘッド)(オプション)(DBWI)
41.Air device 2(Glue head)(Option)(DBWI)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
11
4
5
20
19
28
26
33
24
25
25
29
29
27
22
32
23
6
7
31
30
15
10
16
17
18
1
3
2
9
8
8
13
14
12
15%
34
34
