QP-351E-MM-03 - 第20页

3.ヘッド,マークカメラ(DBPH) 3.Head,Mark camera(DBPH) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBPH0010 3 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT 2 H5274A 18 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角…

100%1 / 221
QP-351E-MM PARTS LIST
3 - 2

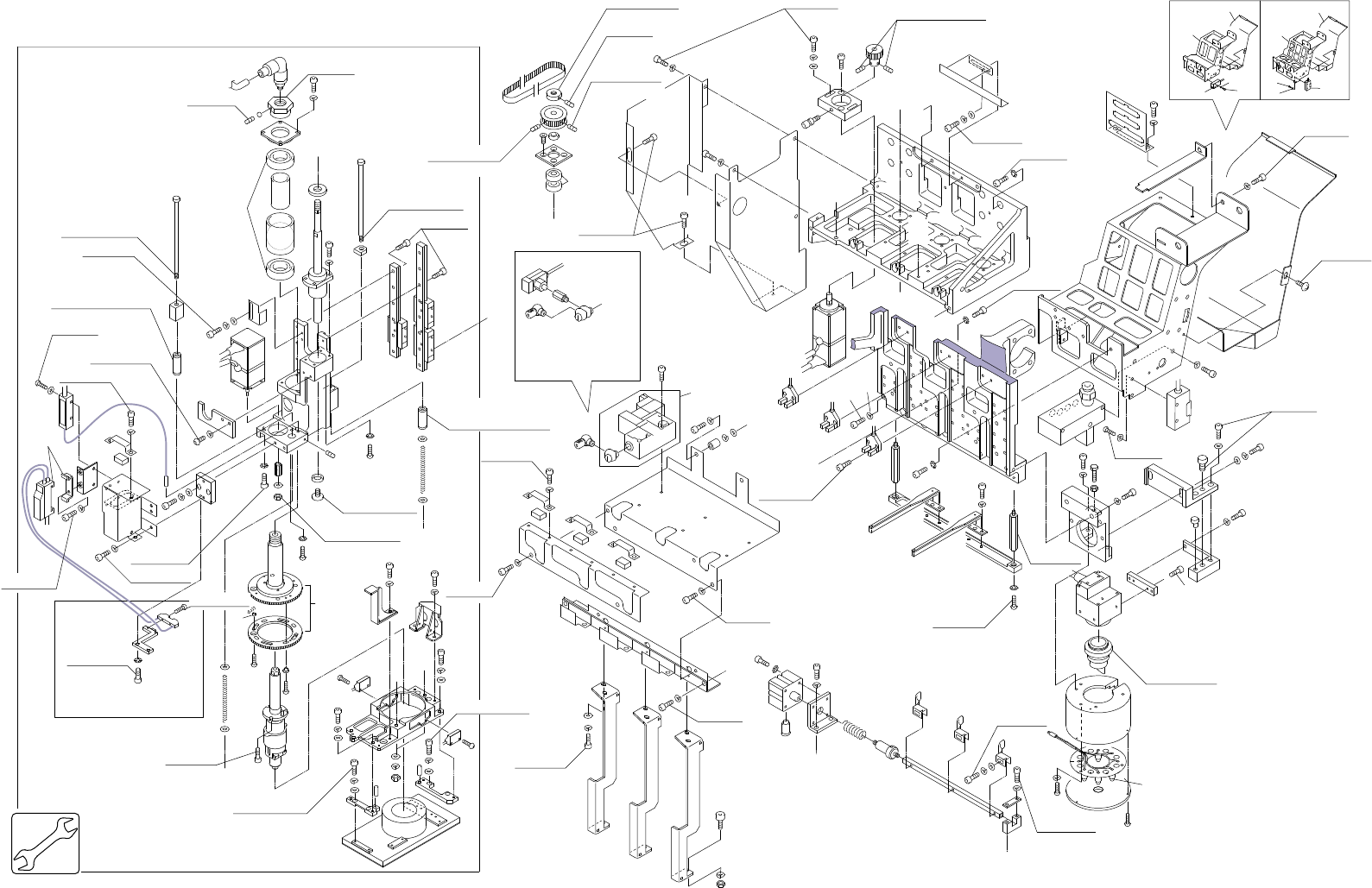

3.ヘッド,マークカメラ(DBPH)
3.Head,Mark camera(DBPH)
3.ヘッド,マークカメラ(DBPH)
3.Head,Mark camera(DBPH)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
加圧力制御(
オプション)
Pressure Control(Option)
パ−ツ吸着確認(
オプション)
Parts pickup
check(Option)
A
E
G
F
C
B
D
C
B
A
E
D
G
F
J
H
H
J
5.9N･m
0.7N･m
LOCTITE222
2.0N･m
LOCTITE601
1.14N･m
PRIMER
ThreeBond1375B
LOCTITE222
0.45N･m
LOCTITE222
LOCTITE222
0.65N･m
0.315N･m
0.088N･m
0.315N･m
0.63N･m
0.315N･m
0.63N･m
0.5N･m
PRIMER
ThreeBond1375B
LOCTITE222
1.14N･m
LOCTITE222
0.7N･m
0.7N･m
LOCTITE222
0.7N･m
0.7N･m
LOCTITE222
1.14N･m
0.63N･m
LOCTITE222
1.14N･m
3.9N･m
2.0N･m
1.5N･m
0.63N･m
3.9N･m
0.5N･m
3.9N･m
LOCTITE425
0.315N･m
1.14N･m
1.14N･m
1.14N･m
0.59N･m
0.63N･m
1.5N･m
1.5N･m
2.7N･m
0.63N･m
3.ヘッド,マークカメラ(DBPH)
3.Head,Mark camera(DBPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBPH0010 3 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
2 H5274A 18
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
3 DBPH0020 3 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
4 H5274A 18
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
5 DBPH0030 3 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
6 H5276A 12
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
7 W1021A 12
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
8 DBPH0072 3 GEAR ｷﾞﾔ FE
9 DBPH0130 3 HOSE, AIR ﾎｰｽ ｴｱｰ OT
10 DBPH0150 3 BLOCK 駒 CO
11 DBPH0180 1 COVER, WIRING ｶﾊﾞｰ 配線 FE
12 H5275A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
13 W1021A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
14 DBPH0201 1 BKT BKT FE
15 H5290A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L FE
16 W1022A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
17 W1043A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
18 H5289A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L FE
19 W1041A 1 WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
20 DBPH0210 1 PLATE, ACRYLIC ﾌﾟﾚｰﾄ ｱｸﾘﾙ PL
21 K51748 3 SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M1.7X6L(0ﾊﾞﾝ1ｼｭ) FE
22 DBPH0221 3 BKT, MOTOR BKT ﾓｰﾀ FE
23 H5278T 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X18L FE
24 W1021A 6
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
25 W1042A 6 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
26 H5276A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
28 DBPH0232 3 NUT, LOCK ﾅｯﾄ ﾛｯｸ FE
29 N4019A 3
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X4L FE
30 DBPH0240 3 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ FE
31 DBPH0252 3 PLATE, FIXED ﾌﾟﾚｰﾄ 固定 PL
32 K5256A 6 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X8L FE
33 W1021A 6
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
34 DBPH0260 3 DOG ﾄﾞｯｸﾞ FE
35 H5274A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
36 W1021A 6
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
37 W1040A 6 WASHER, FLAT ﾜｯｼｬ 平 3M/MX0.5X7(1W-3) FE
38 DBPH0270 3 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
QP-351E-MM PARTS LIST
3 - 3
3.ヘッド,マークカメラ(DBPH)
3.Head, Mark camera(DBPH)
3.ヘッド,マークカメラ(DBPH)
3.Head,Mark camera(DBPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
39 H5274A 12
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
40 W1021A 12
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
41 DBPH0280 3 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
42 K5357M 12 SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X6L FE
43 DBPH0290 3 STOPPER ｽﾄｯﾊﾟ PL
44 DBPH0300 3 STOPPER ｽﾄｯﾊﾟ PL
45 DBPH0980 12 COLLAR ｶﾗｰ FE
46 DBPH0320 3 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ FE
47 DBPH0330 3 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ FE
48 DBPH0340 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け PL
49 DBPH0350 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押ｴ FE
50 H5278T 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X18L FE
51 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
52 DBPH0930 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
53 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L FE
54 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
55 DBPH0370 1 JOINT, KNUCKLE ｼﾞｮｲﾝﾄ ﾅｯｸﾙ FE
56 DBPH0380 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
61 DBPH0412 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ OT
62 DBPH0431 3 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板 FE
63 H5275A 3
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
64 W1021A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
65 W1040A 3 WASHER, FLAT ﾜｯｼｬ 平 3M/MX0.5X7(1W-3) FE
66 DBPH0440 3 PULLEY ﾌﾟｰﾘ OT
67 N40194 6 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止ﾒ M3X5L FE
68 DBPH0451 3 PULLEY, MOTOR ﾌﾟｰﾘ ﾓｰﾀ OT
69 N4018A 6
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X3L FE
70 DBPH1140 6 SPRING ｽﾌﾟﾘﾝｸﾞ FE
71 DBPH0491 1 BKT BKT FE
72 H5292A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L FE
73 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
74 H5276A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
75 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
76 DBPH0500 1 SPRING, EXTRUSION ｽﾌﾟﾘﾝｸﾞ 押出し FE
77 DBPH0514 3 BKT, WIRING BKT 配線 FE
78 H5274A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
79 W1021A 6
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
QP-351E-MM PARTS LIST
3 - 4
3.ヘッド,マークカメラ(DBPH)
3.Head, Mark camera(DBPH)
