15.Y軸スライド(DBYS) 15.Y-axis slide(DBYS) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBYS0010 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT 2 H5342A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L F…

100%1 / 221
15 - 2

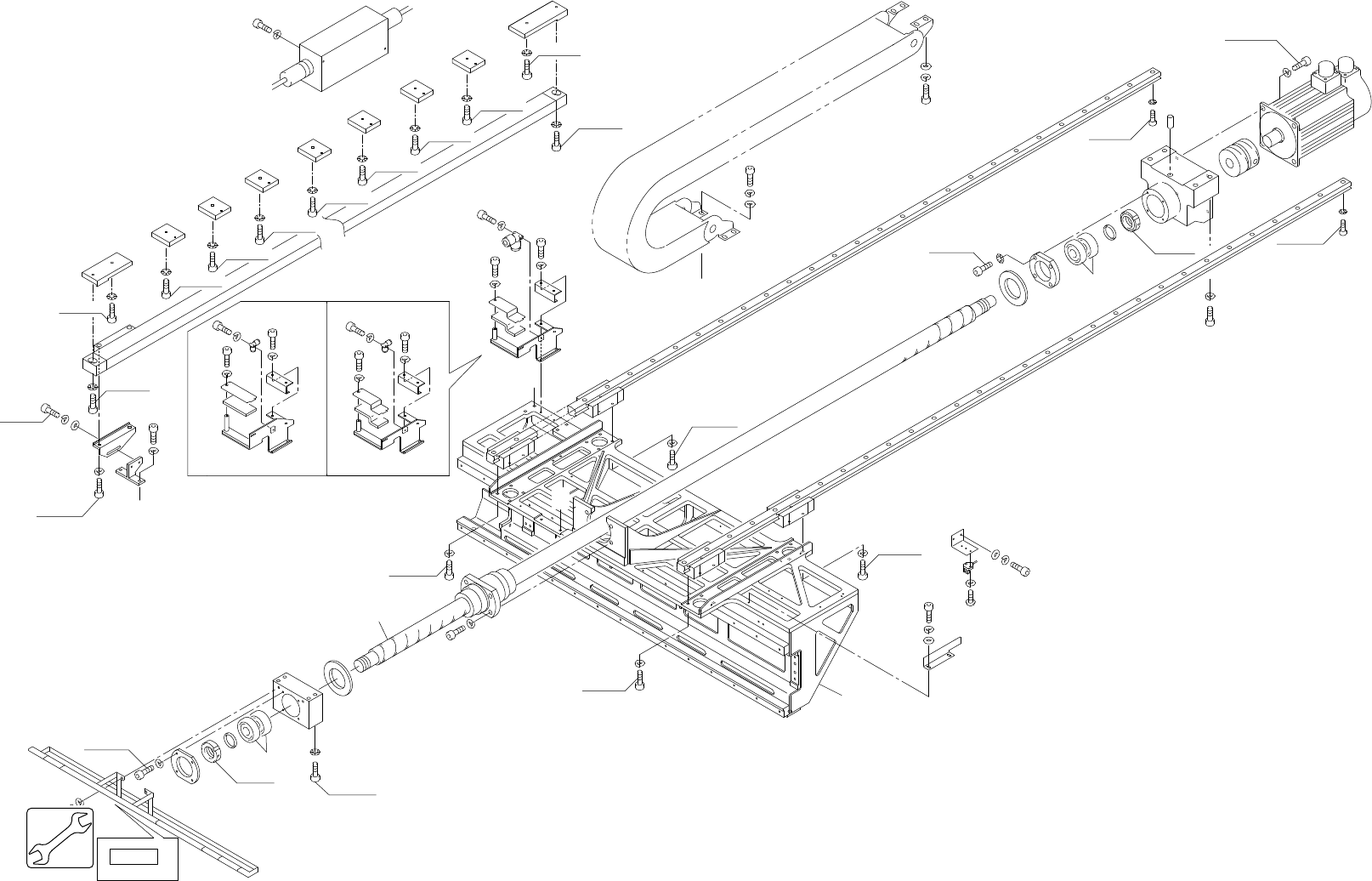

15.Y軸スライド (DBYS)
15.Y-axis slide (DBYS)
15.Y軸スライド (DBYS)
15.Y-axis slide (DBYS)
QP-351E-MM PARTS LIST
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.31-1
TENSIONED
Glue Head Option
B
A
X9
Ｌｉｎｅａｒ ｓｃａｌｅ （Ｏｐｔｉｏｎ）
リニアスケ−ル（オフ゜ション）
B
B
A
65
A
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
9.3N･m
9.3N･m
3.9N･m
9.3N･m
3.9N･m
41N･m
12.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
3.9N･m
41N･m
7.8N･m
7.8N･m
12.8N･m
15.Y軸スライド(DBYS)
15.Y-axis slide(DBYS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBYS0010 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
2 H5342A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X25L FE
3 W1025A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
4 DBSY0021 1 BKT, MOTOR BKT ﾓｰﾀ FE
5 H5342A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X25L FE
6 W1014A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-8-L FE
7 DBSY0030 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
8 H5289A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L FE
9 W1011A 4
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
10 DBSY0040 2 COLLAR ｶﾗｰ FE
11 DBSY0050 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
12 H5325A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X22L FE
13 W1013A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-L FE
14 DBSY0060 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
15 H5288A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L FE
16 W1022A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
17 DBYS0021 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ SH201760ANC2-01K51 OT
18 H5301A 60
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X18L FE
19 W1012A 60
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
20 DBYS0100 1 COVER ｶﾊﾞｰ FE
21 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X8L FE
22 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
23 DBSY0090 1 BKT, SENSOR BKT ｾﾝｻ FE
24 H5275A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
25 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
26 W1042A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
27 DBYS0030 1 DOG ﾄﾞｯｸﾞ FE
28 H5275A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
29 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
30 W1042A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
31 DBYS0041 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ OT
32 H5323A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X18L FE
33 W1024A 8
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
34 W1045A 8 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
35 DBYS0051 1 SLIDE, Y-AXIS ｽﾗｲﾄﾞ Y軸 FE
36 H5299A 16
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L FE
37 W1023A 16
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
QP-351E-MM PARTS LIST
15 - 3
15.Y軸スライド(DBYS)
15.Y-axis slide(DBYS)
15.Y軸スライド(DBYS)
15.Y-axis slide(DBYS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
38 DBSY0180 1 BKT BKT FE
39 H5299A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L FE
40 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
41 DBYS0060 1 BKT BKT FE
42 H5324A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X20L FE
43 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
44 H5289A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L FE
45 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
46 W1043A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
47 DBYS0110 1 BLOCK ﾌﾞﾛｯｸ FE
48 H5298A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L FE
49 W1012A 1
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
50 DBYS0081 7 BLOCK ﾌﾞﾛｯｸ FE
51 H5298A 7
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L FE
52 W1012A 7
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
53 DBYS0120 1 BLOCK ﾌﾞﾛｯｸ FE
54 H5298A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L FE
55 W1012A 1
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
56 DBSY0240 1 BKT, PIPING BKT 配管 FE
57 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L FE
58 H5293A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X25L FE
59 W1022A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
60 DBSY0250 1 RETAINER, WIRING 押え 配線 FE
61 H5288A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L FE
62 W1022A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
63 DBSY0260 1 COVER ｶﾊﾞｰ FE
64 DBSY0270 1 SHEET ｼｰﾄ OT
65 DBSY0280 1 SEAL ｼｰﾙ OT
66 S3018K 2 STOPPER ｽﾄｯﾊﾟ UWFT35(TSK)ｳﾚﾀﾝ OT
67 K10073 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ SFC-050SD-24B-20B OT
68 H4218C 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7005CDBC7P5 OT
69 N1026A 2 NUT, LOCK ﾅｯﾄ ﾛｯｸ ZM025 OT
70 S31207 1 SW, PHOTOELECTRIC SW 光電 EE-SX771A OT
71 K5256E 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X10L FE
72 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
73 H4218B 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7005CTYDULP4 OT
74 H20951 1 PIN, PARALLEL ﾋﾟﾝ 平行 10ﾟX20ﾒﾈｼﾞﾂｷ OT
QP-351E-MM PARTS LIST
15 - 4
15.Y軸スライド(DBYS)
15.Y-axis slide(DBYS)
