Major Maintenance Maintenance Tasks for the Componen t Feed Device 5.3.2 Performing Maintenance T asks 52 Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 5.3.2.2 5 . 3 . 2 . 2 G r e a s in g t h e C u t t e r Greasing the Cut…
Major Maintenance
5.3.1 Tools, Consumables, Spare and Wear Parts Maintenance Tasks for the Component Feed Device
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 51
5.3
5.3 Maintenance Tasks for the Component Feed Device
Maintenance Tasks for the Component Feed Device
5.3.1
5.3.1 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
▪ SIPLACE cleaning tissue [00315253-xx]
▪ Protective latex gloves [00372972-xx]
▪ Oil spray Surface Shield 400 ml [00328575-xx]
▪ Interflon Fin Grease [03020782-xx]
▪ Lint-free cloths [03082092-xx]
▪ Klüberplex BEM 34-132 lubricant, 1 kg tin [00374565-xx]
▪ Sheet of DIN A3 paper (or 2x A4)
▪ Adhesive tape strips
▪ Scissors
▪ ESD wristband [00320279-xx]
▪ Lubrication nipple DIN71412-A-M6 – straight (tape cutter) [03036936-xx], if required
▪ Grease gun with hose for Y axis (volume applied: approx. 0.4 g) [00374563-xx]
▪ Ethanol
Isopropanol – IPA can be used as an alternative.
5.3.2
5.3.2 Performing Maintenance Tasks
Performing Maintenance Tasks
5.3.2.1
5.3.2.1 Function Test of Used Tape Cutter
Function Test of Used Tape Cutter
Risk of injury when working near the tap e cutter
► Take the sheet of paper out of the empty tape duct again.
If it has not been cut through accurately, the cutting blades must be cleaned or replaced. This task
must be carried out by authorized personnel. For removal and installation details, read the Service
manual.
WARNING
Risk of injury when working near the cutter.
When working in the area of the tape cutter, move the component trolley out of the machine
and disconnect the machine from the mains supply and the compressed air supply.
► Wait until the operating pressure has dropped to 0 MPa.
► Always secure the machine against unauthorized reactivation.
► Do not reach into the tape cutter.
➢ The machine and the changeover tables within the
machine must be switched on for the next test.

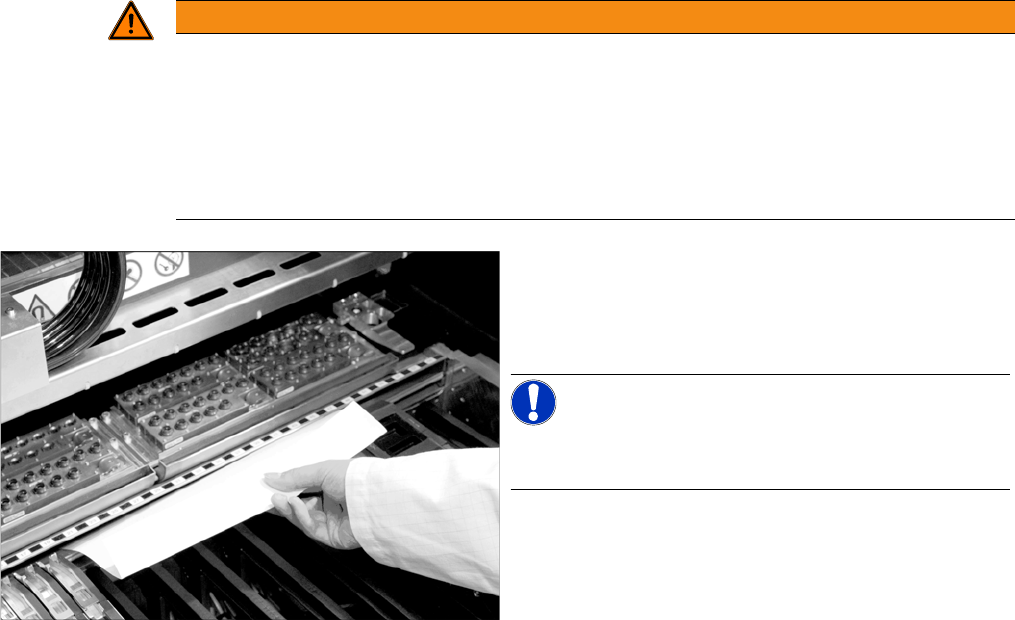

► Insert a sheet of DIN A3 paper or two DIN A4 sheets
attached to one another into the empty tape duct.
NOTICE!
A DIN A4 sheet on its own is too short to reach the tape
cutter.
► Attach the sheet of paper with adhesive tape to the
empty tape duct.
Make sure that there is no paper protruding upwards
in the placement head travel range.
► Start the cutting process in the software.
Major Maintenance
Maintenance Tasks for the Component Feed Device 5.3.2 Performing Maintenance Tasks
52 Maintenance Manual SIPLACE SX1/SX2/DX1/DX2
5.3.2.2
5.3.2.2 Greasing the Cutter
Greasing the Cutter
Risk of injury when working near the tap e cutter
► Undock the component trolleys and move them out of the machine.
► Switch off the machine and secure it to prevent unauthorized reactivation. Observe the instructions
in section "1.2 Preparatory Work..." [ ➙ 12].
► Fill the "grease gun with hose for Y axis" (volume applied approx. 0.4 g) [00374563-xx] with
Klüberplex BEM 34-132 (see also "6.1 Filling the Grease Gun" [ ➙ 77]).
WARNING
Risk of injury when working near the cutter.
When working in the area of the tape cutter, move the component trolley out of the machine
and disconnect the machine from the mains supply and the compressed air supply.
► Wait until the operating pressure has dropped to 0 MPa.
► Always secure the machine against unauthorized reactivation.
► Do not reach into the tape cutter.

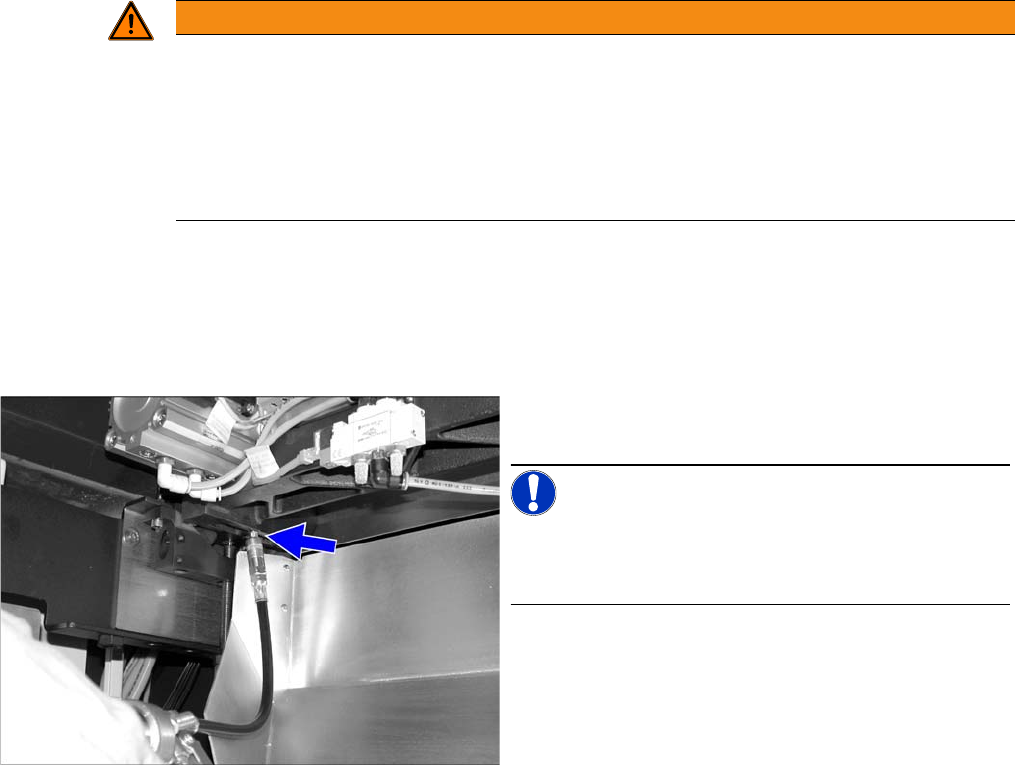

► Place the hose of the grease gun straight onto the lu-
brication nipple.
NOTICE!
If the lubrication nipple no longer lets lubricant through or
if it is damaged, replace it (DIN71412-A-M6 [03036936-
xx]).
► Press grease into the tape cutter until it visibly pro-
trudes out again.
► Remove excess grease with a brush.
► Repeat these steps for the other side of the tape cut-
ter.
► Repeat these steps for each tape cutter.
Major Maintenance
5.3.2 Performing Maintenance Tasks Maintenance Tasks for the Component Feed Device
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 53
5.3.2.3
5.3.2.3 Greasing the Cutting Blade
Greasing the Cutting Blade
Risk of injury when working near the tap e cutter
► Dismantle the waste slide. Read the service manual for your machine first.
► Install the waste slide. Also observe the following instructions:
Compone nt Supply - Manual Tables - Fitting Pr otections - SW Version
SXDX12V1V2 – Tape Cutter – Waste Tape Chute – Pay Attention to the Plastic Strips – SW Version
WARNING
Risk of injury when working near the cutter.
When working in the area of the tape cutter, move the component trolley out of the machine
and disconnect the machine from the mains supply and the compressed air supply.
► Wait until the operating pressure has dropped to 0 MPa.
► Always secure the machine against unauthorized reactivation.
► Do not reach into the tape cutter.

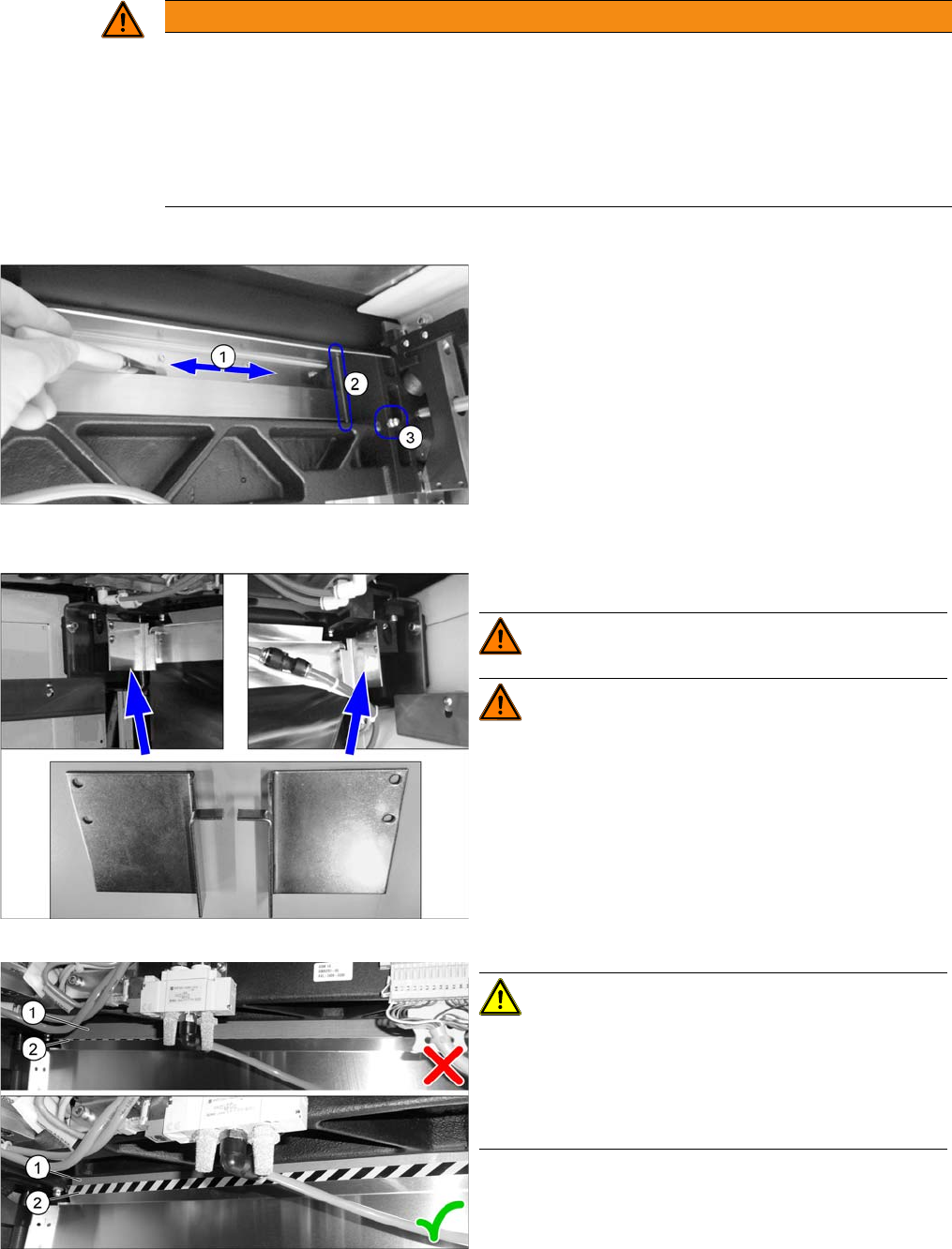

► Spray a bit of Interflon Fin grease [03020782-xx] into
a suitable container.
► Distribute the grease with a brush to the underside of
the fixed blade (1) as shown in the figure.
► Use a lint-free cloth to remove any excess grease
from the contact surfaces of the cutting blades (2)
and the grease nipple (3).
Manual tables only:
WARNING!
WARNING! There is a risk of injury on manual
tables without the two protections.
► Fit the two protections.
CAUTION!
Make sure that the plastic strips (1) (if present) are locat-
ed behind the plate (2) when you hook up the used tape
chute.
The black-yellow hatched label must be completely visi-
ble.
