Major Maintenance
5.4.3 Performing Maintenance Tasks Maintenance Tasks for Optical Systems
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 57
► Repeat these steps for all IC and FC cameras.
5.4.3.2

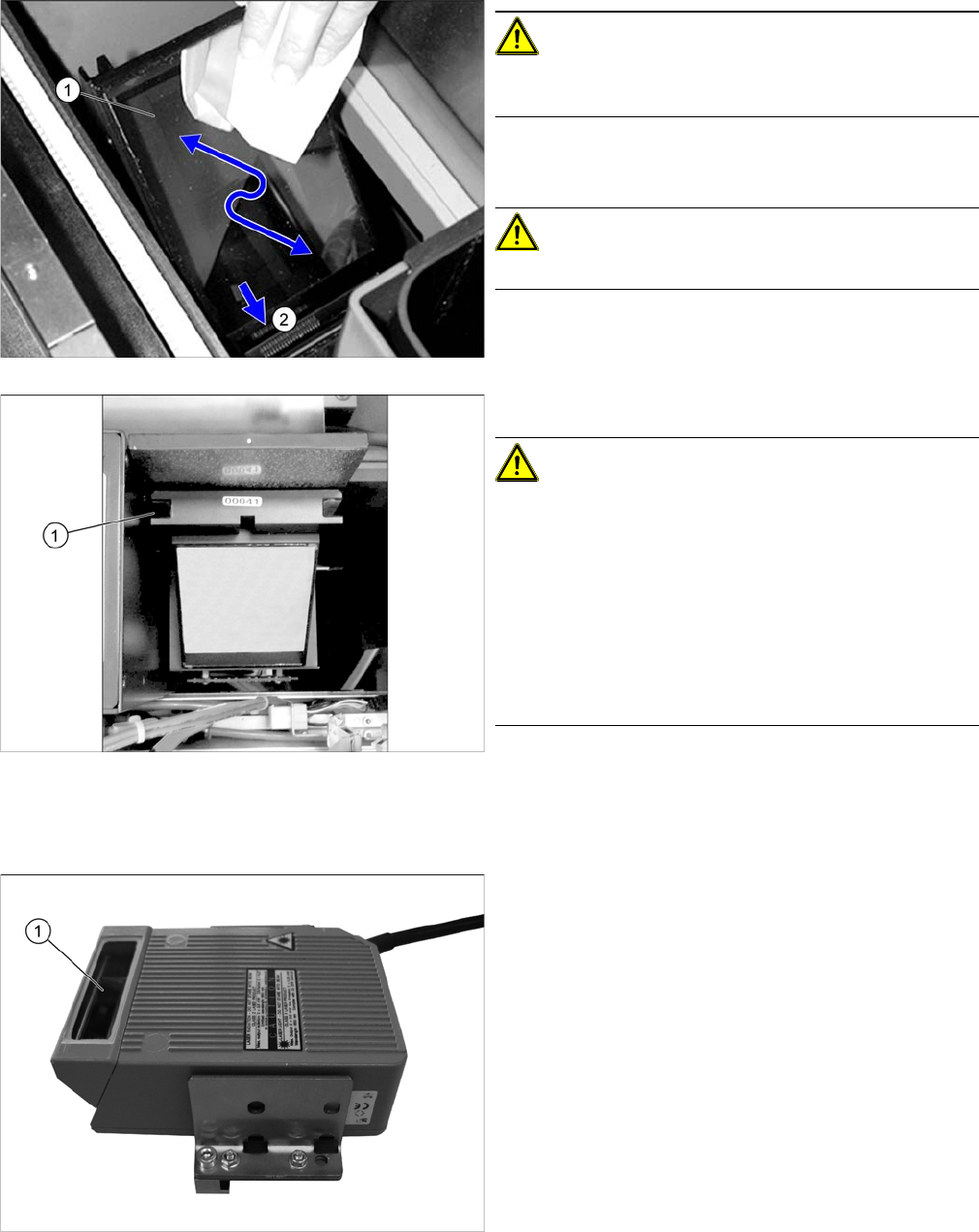

5.4.3.2 Cleaning the PCB Barcode Scanner
Cleaning the PCB Barcode Scanner
CAUTION!
There is a risk of cutting yourself on the edges of the
glass disk!
► Clean the slanted glass disk (1) with a microfiber
cloth.
CAUTION!
Do not use any chemical cleaning agents!
► Remove any components which have collected in the
duct (2) underneath the glass disk.
► Refit the upper part.
CAUTION!
Make sure that you do not damage the glass disk.
Make sure that the upper part of the camera slides
smoothly into the (1) guidance.
Make sure that the upper part of the camera is evenly
seated on the lower section and that it cannot move. If
necessary, gently press against the metal cover of the
upper part.
Make sure that the upper part does not protrude at the
upper edge of the conveyor.
► Clean the lens (1) of the PCB barcode scanner with a
microfiber cloth.
Major Maintenance
Maintenance Tasks for Optical Systems 5.4.3 Performing Maintenance Tasks
58 Maintenance Manual SIPLACE SX1/SX2/DX1/DX2
5.4.3.3
5.4.3.3 Cleaning the Stationary 3D Sensor Module
Cleaning the Stationary 3D Sensor Module
5.4.3.4
5.4.3.4 Vacuuming the Coplan PC
Vacuuming the Coplan PC
► Clean the 3D sensor module lens (1) with a microfiber
cloth.
► Vacuum the Coplan PC carefully if it is dirty. Make
sure not to unplug any cables.
Major Maintenance
5.5.1 Tools, Consumables, Spare and Wear Parts Maintenance Work on the Gantry
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 59
5.5
5.5 Maintenance Work on the Gantry
Maintenance Work on the Gantry
5.5.1
5.5.1 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
▪ Lint-free cloths [03082092-xx]
▪ Protective latex gloves [00372972-xx]
▪ Klüberplex BEM 34-132 lubricant, 1 kg tin [00374565-xx]
▪ Cotton gloves [00359087-xx]
▪ Ethanol
Isopropanol – IPA can be used as an alternative.
▪ Fork wrench, size 15
▪ ESD wristband [00320279-xx]
▪ Grease gun with hose for Y axis (volume applied: approx. 0.4 g) [00374563-xx]
▪ Lubrication nipple (X-, Y-axis) DIN71412 - B M6 [03036943-xx], if required
▪ Lubrication system for Y axis loose bearing [03079145-xx]
▪ Lubrication system set SX1 (10 pieces) including maintenance labels [03085908Sxx]
5.5.2
5.5.2 Preparatory Steps
Preparatory Steps
► Switch off the machine and secure it to prevent unauthorized reactivation. Observe the instructions
in section "1.2 Preparatory Work..." [ ➙ 12].
See also
6.1 Filling the Grease Gun [ ➙ 77]
