CP45 配件说明 - 第115页
P o wer Bloc k Diagram - 138 - ISOLA TION SWITCH CIRCUIT BREAKER NOISE FILTER #1 TRANSFORMER A C220 A C110 SERVO DRIVER Y AXIS X AXIS Z1 AXIS Z2 AXIS Z3 AXIS Z4 AXIS Z5 AXIS Z6 AXIS S AXIS W AXIS NOISE FILTER #2 POWER SU…
R 5/6 Motor Interface
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9061346C TH3 DRV COMMAND CABLE ASS'Y MK-VM13
2
J9061242C R STEP MOTOR CABLE ASS'Y MK-MD20
3
J9061976B R3 STEP MOTOR CABLE ASS'Y MK-MD21-3
4
J9061246C R DRIVER POWER CABLE ASS'Y MK-MD24
J9061713B
R DRIVER POWER CABLE ASS'Y MK-MD24CE (CE OPTION)
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
- 138 -

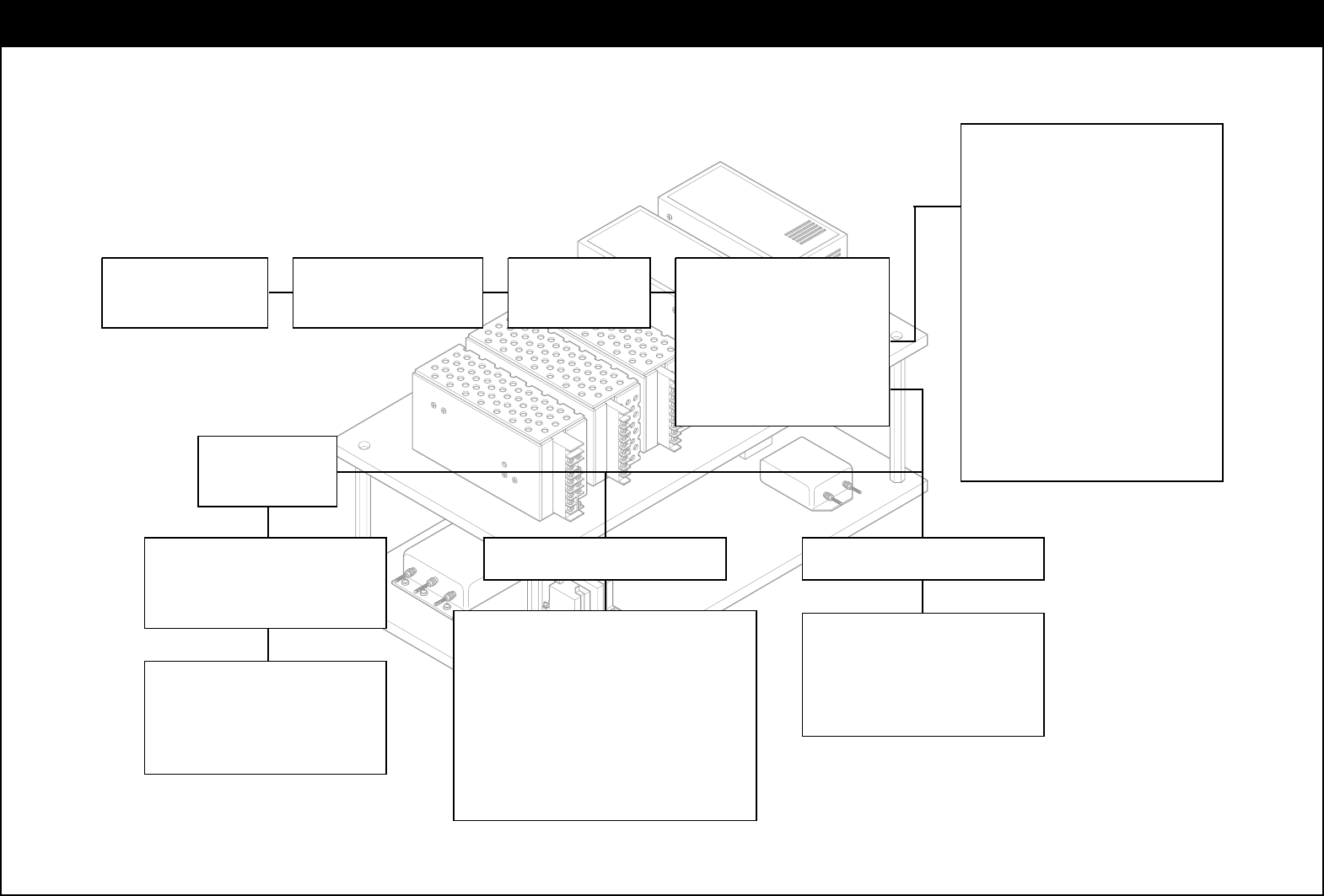

Power Block Diagram
- 138 -
ISOLATION
SWITCH
CIRCUIT
BREAKER
NOISE
FILTER #1
TRANSFORMER
AC220
AC110
SERVO DRIVER
Y AXIS
X AXIS
Z1 AXIS
Z2 AXIS
Z3 AXIS
Z4 AXIS
Z5 AXIS
Z6 AXIS
S AXIS
W AXIS
NOISE
FILTER #2
POWER SUPPLY #1
POWER SUPPLY #2
PC POWER SUPPLY
POWER SUPPLY #4POWER SUPPLY #3
CONV. I/F B/D
HEAD I/F B/D
FRONT/REAR FEEDER I/F B/D
HEAD/STAGE ILL. I/F B/D
CONV. PACK B/D
R STEP I/F B/D
Y SUB I/F B/D
FRONT/REAR STICK FEEDER
R1/2 STEP DRIVER
R3/4 STEP DRIVER
R5/6 STEP DRIVER
CONV. STEP DRIVER
VME BACKPLANE
PC MOTHERBOARD
HDD
FDD
Power Block Schematic
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9061167B I/F BOARD POWER CABLE ASS'Y
MK-CV01
2
J9061172B CONVEYOR MPTOR PACK CABLE ASS'Y
MK-CV06
3
J9061174B READY RELAY CABLE ASS'Y
MK-CV08
4
J9061190B CONVEYOR UPS POWER DROP CABLE
MK-CV24
5
J9061199B FEEDER I/F BOARD POWER CABLE ASS'Y
MK-FD01
6
J9061200B FEEDER I/F BOARD POWER CABLE ASS'Y
MK-FD02
7
J9061207B I/F BOARD POWER CABLE ASS'Y
MK-HD01
8
J9061223B X MOTOR POWER CABLE ASS'Y
MK-MD01
9
J9061224B X MOTOR ENCODER CABLE ASS'Y
MK-MD02
10
J9061225A X MOTOR POWER CABLE ASS'Y
MK-MD03
11
J9061226B Y MOTOR POWER CABLE ASS'Y
MK-MD04
12
J9061227B Y MOTOR ENCODER CABLE ASS'Y
MK-MD05
13
J9061228A Y MOTOR POWER CABLE ASS'Y
MK-MD06
14
J9061229B R_RESISTER CABLE ASS'Y
MK-MD07
15
J9061230A Z1/Z2/Z3 MOTOR CABLE ASS'Y
MK-MD08
16
J9061231B Z1/Z2/Z3 MOTOR ENCODER CABLE ASS'Y
MK-MD09
17
J9061233B Z4/Z5/Z6 MOTOR POWER CABLE ASS'Y
MK-MD11
18
J9061234B Z4/Z5/Z6 MOTOR ENCODER CABLE ASS'Y
MK-MD12
19
J9061235B Z4/Z5/Z6 MOTOR CABLE ASS'Y
MK-MD13
20
J9061236B SWING MOTOR POWER CABLE ASS'Y
MK-MD14
21
J9061237B SWING MOTOR ENCODER CABLE ASS'Y
MK-MD15
22
J9061238B SWING MOTOR CABLE ASS'Y
MK-MD16
23
J9061239A WIDTH MOTOR POWER CABLE ASS'Y
MK-MD17
24
J9061240A WIDTH MOTOR ENCODER CABLE ASS'Y
MK-MD18
25
J9061241A WIDTH MOTOR CABLE ASS'Y
MK-MD19
26
J9061244B R DRIVER POWER CABLE ASS'Y
MK-MD22
27
J9061245B R DRIVER POWER CABLE ASS'Y
MK-MD23
- 145 -
