CP45 配件说明 - 第51页
Fiducial Camera Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7155259A FIDUCIAL CAMERA BRACKET 1 A6061-T6 2 J9059083A NEW FIDUCIAL CAMERA BARREL ASS'Y 1 J9059083A 3 J1300491 CCD CAMERA [SFA-410ED] 1 SFA…
Fiducial Camera Ass'y
- 48 -
3
2
4
5
1
6
Fiducial Camera Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J7155259A FIDUCIAL CAMERA BRACKET
1
A6061-T6
2 J9059083A NEW FIDUCIAL CAMERA BARREL ASS'Y
1
J9059083A
3 J1300491 CCD CAMERA [SFA-410ED]
1
SFA-410ED
4 J6304008A O-RING
1
G25
5 J7255027A CAMERA ISOLATOR2
1
J7255027A
6
J9060102B
NEW FIDUCIAL OUT LED BOARD ASSY
1
J9061102B
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 49 -

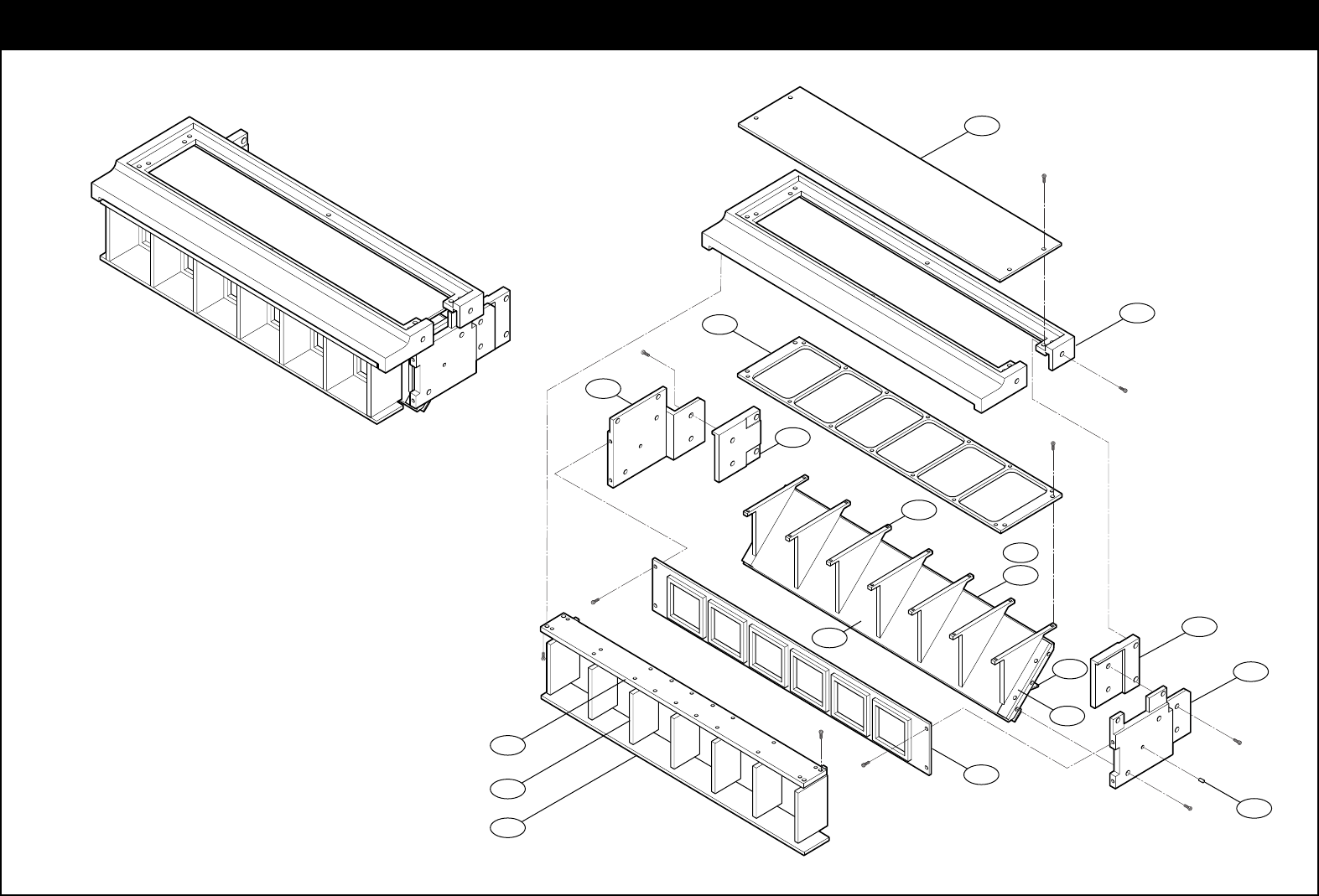

Flying Illumination Ass'y
- 50 -
17
12
14
15
1
2
7
11
8
10
16
18
3
13
4
5
6
9
