CP45 配件说明 - 第91页
Front Function Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7052581C OP PANEL-FRONT 1 2 J3403025A PUSH BUTTON SWITCH 1 AL6-M(BLACK) 3 J3403026A PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC, BLUE) 4 J3403027A PUSH…

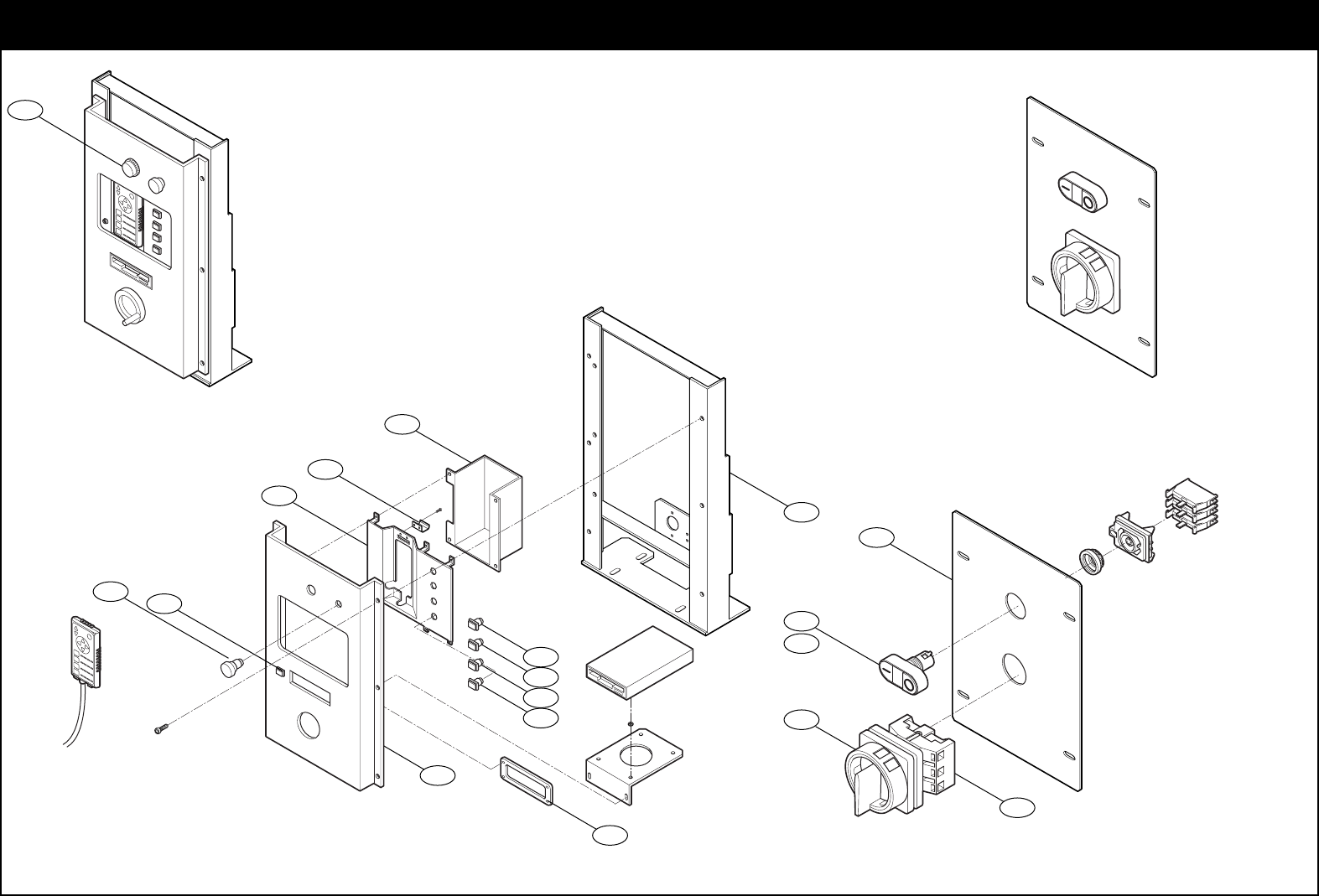

Front Function Panel Ass'y
- 88 -
8
16
14
5
17
1
4
2
3
13
15
12
11
7
5
6
10
9
Front Function Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7052581C OP PANEL-FRONT 1
2 J3403025A
PUSH BUTTON SWITCH 1 AL6-M(BLACK)
3 J3403026A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC, BLUE)
4 J3403027A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC,GREEN)
5 J3403028A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC,WHITE)
INCLUDE R-FEEDER CHAGE
6
J7052583A OP PANEL - INNER 1 J7052583A
7
J7052305A CABLE COVER 1 AH30-XBE(DC/AC12-24V)
8
J7052316B SUPPORT-F/PANEL 1 J7052316B
9
J2100058 SPRING 1 0131-614007
10
J1201001 EMERGENCY SWITCH 2 AH165-VR02
IINCLUDE REAR SIDE
11
J1201021 BUZZER 1 AH30-XBE(DC/AC12-24V)
12
J7052320C PANEL-MAIN S/W 1 J7052320C
13
J4713014A I/O SWITCH LED LAMP 1
M22-LED
14 J3403041A I/O SWITCH
1
RMQ TITAN M22
15
J3406005A LOAD SWITCH
1
PI-25
16
J7052320C PANEL-MAIN S/W
1
J7052320C
17
J7052225B FDD PANEL
1
J7052225B
18
19
20
21
22
23
24
25
26
27
