12.4.3 Overview of stopper

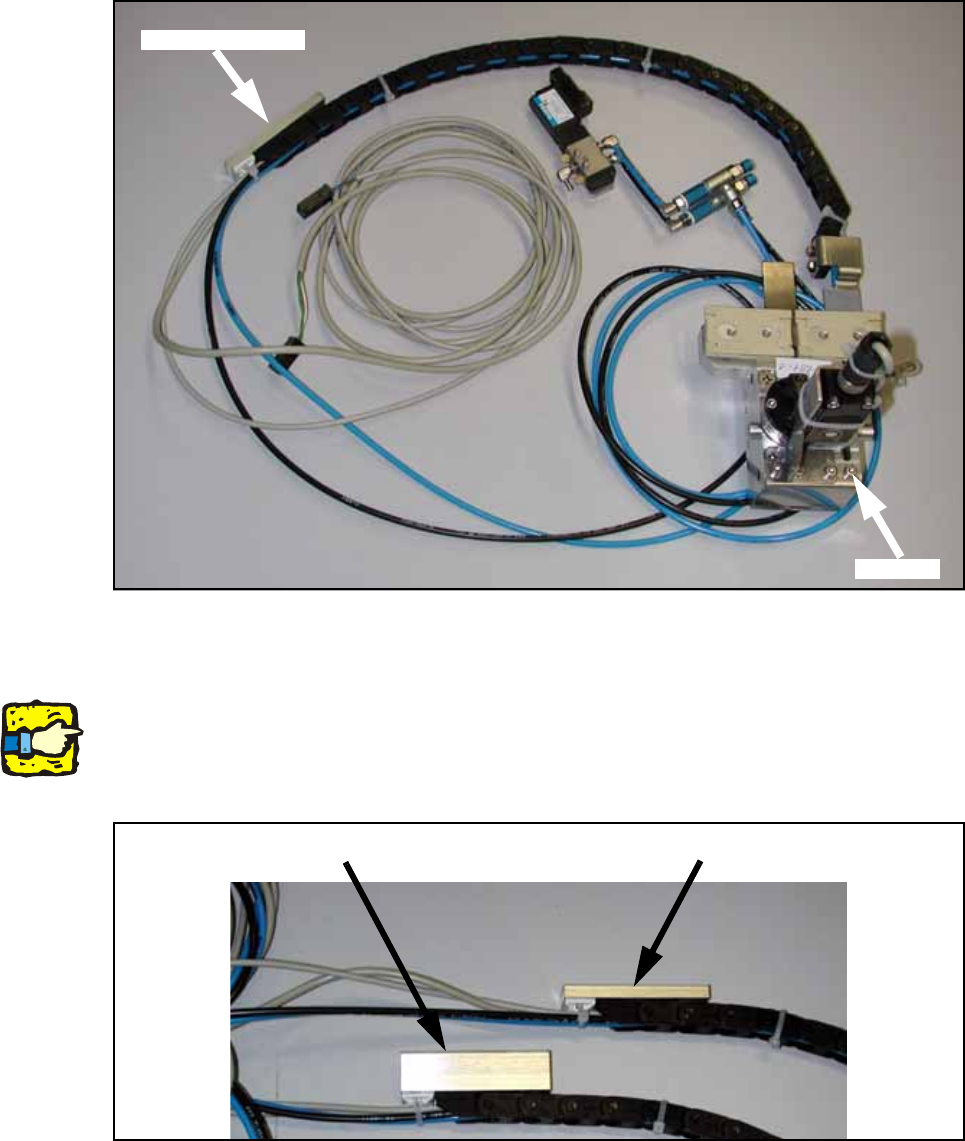

Fig. 110 Overview of stopper
12.4.3.1 High and low distance blocks
Note:
A distance block is screwed onto the loose end of the trailing cable. The height of this spacer var-
ies depending on the conveyor track and is stuck onto the floor of the mounting tub with adhesive
tape.
Fig. 111 High and low distance blocks
Distance block
Stopper
Low distance block
High distance block
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
135
The stoppers with high and low distance blocks are used as follows:
Article numbers:
– Distance block high: [03043305-xx]
– Distance block low: [03043306-xx]
12.4.3.2 Description of solenoid valves and hoses:

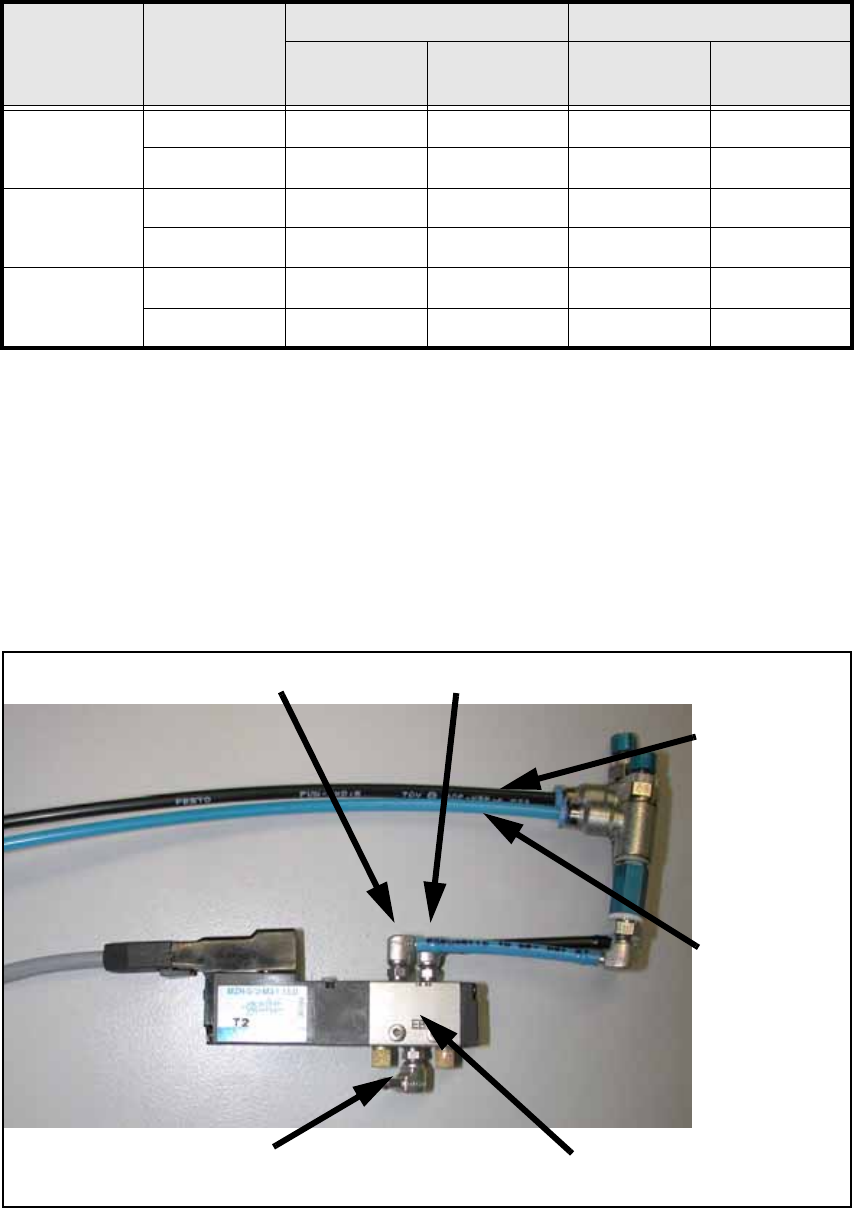

Fig. 113 Solenoid valves and hoses
Machine Conveyor
type
Placement area 1 Placement area 2
Conveyor
track 1
Conveyor
track 2
Conveyor
track 1
Conveyor
track 2
HS-60 / D4
Single high --- low ---
Dual high low high low
S-27HM
Single low --- --- ---
Dual high low --- ---
HF- / X-
Series / D3
Single high --- low ---
Dual high low high low
Tab. 12. 112 Use of stoppers with high and low distance blocks
Connection 4 Connection 2
Black = Connec-
tion of rotating
cylinder
Insert stopper
with adjustable
throttle
Blue = Connec-
tion of rotating
cylinder
Withdraw stop-
per with adjust-
able throttle
Compressed air
supply
Solenoid valve
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
136
12.5 Required parts
12.5.1 Retrofit kits:
– Optional mechanical stopper S-27HM SC [00176070-xx]
– Optional mechanical stopper S-27HM DC [00176071-xx]
– Optional mechanical stopper HS-60, D4 SC [00176072-xx]
– Optional mechanical stopper HS-60, D4 DC [00176073-xx]
– Optional mechanical stopper HF-, X-Series, D3 SC [00176074-xx]
– Optional mechanical stopper HF-, X-Series, D3 DC [00176075 -xx]
12.5.2 Required tools and consumables
– Allen key set
– Socket wrench set
–Side cutter
– Approx. 20 cable ties (assorted cable ties, colored, 100 pcs., [00320161-01])
– Self-adhesive cable clamps (attachment base, ABM1M 12x12, [00318666-01])
– Lint-free cloth
– Ethyl alcohol for cleaning
– Labels or an adhesive tape for labeling (Scotch tape 50 wide, gray,
[00326284-01])
– Non-smudge pen (Edding)
– Measuring tape (for S-27HM)
– Belt tension measuring device (for S-27HM)
– Measuring tape
