13.3 Installation at placement area 1
The description of the installation process is based on the example of a dual conveyor. Single con-
veyor installation is carried out similarly.
13
O In placement area 1, install holders 1 + 2 for the guide strip of the PCB stopper.
The holders are installed so that they are flush at the top with the lateral frames of the lifting
table. To prevent the holder from twisting, the lateral shoulder of the holder must lie against the
outside of the frames.
The holders are attached with one cylinder head bolt with hexagon socket head M4 x 16 -
DIN 912

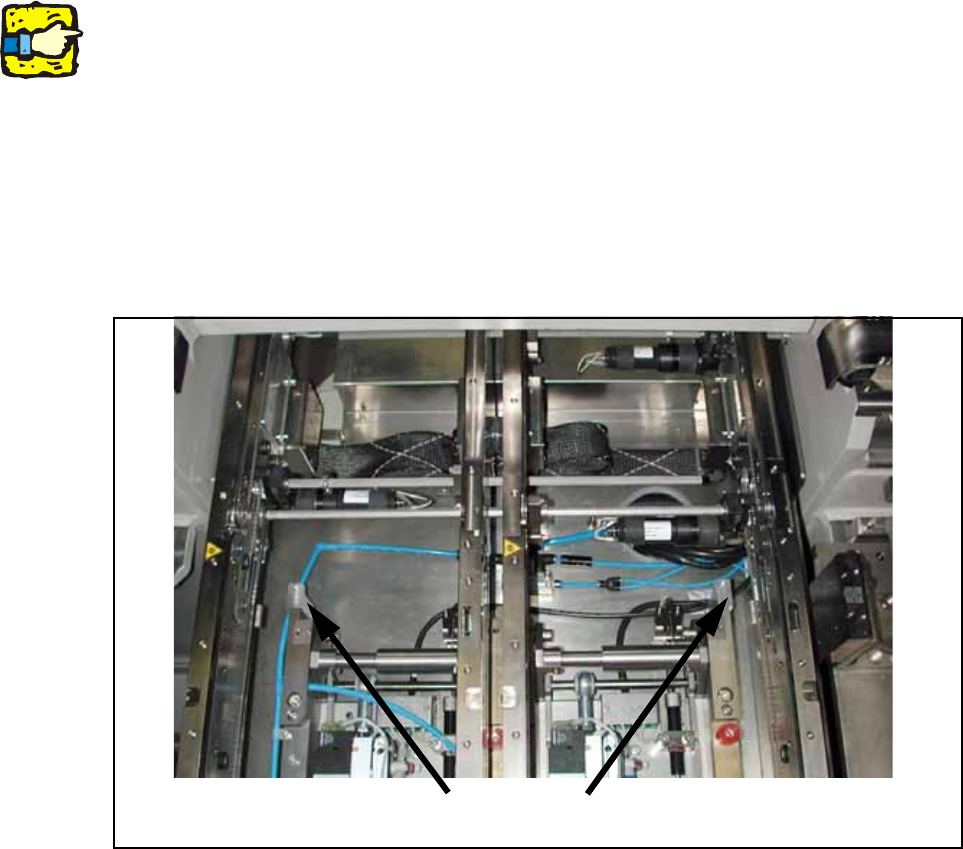

Fig. 140
Holder of guide strip
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
164
O Clean the conveyor tub in the area of the guide strip with a lint-free cloth moistened with ethyl
alcohol.

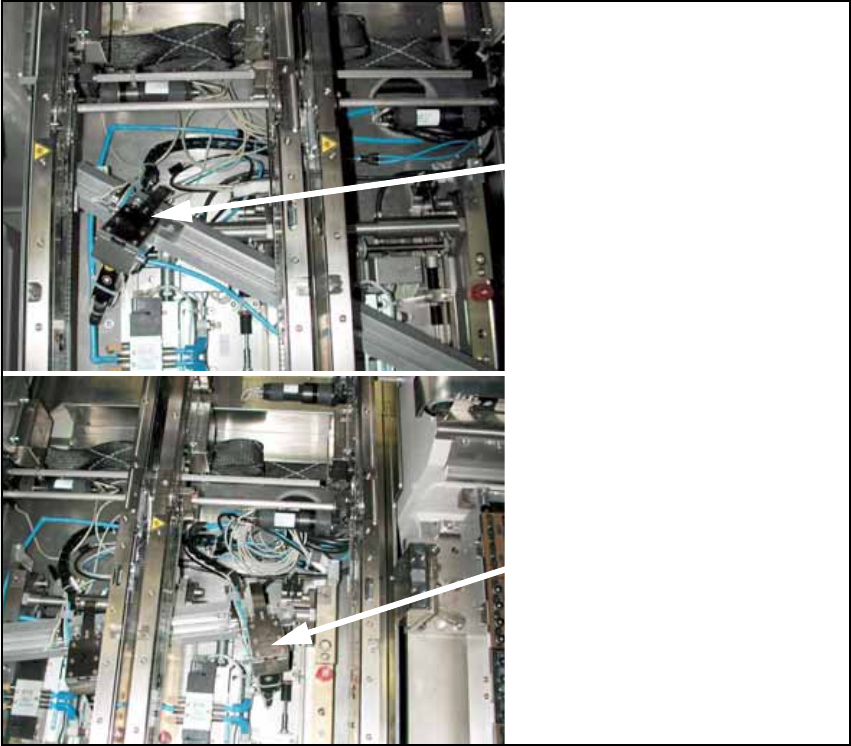

Fig. 141
O Relocate any cables that may run there.
13
Caution: Before the stopper is mounted in the machine, it should be adjusted with the guide strip
and the shims. Care should be taken to ensure that the stopper is not too loose or too tight. The
graduation of the shims is 0.1mm.
(See also Fig. 209, page - 232.) 13
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
165
O Before doing so, remove the cable tie with which the black cable is attached to the air distrib-
utor.
O Push the guide strip into the conveyor from outside.
Insert the stopper units carefully between the two side sections into the guide slot of the guide
strip.
Fig. 142
13
Stopper PA1
Conveyor track 2
Stopper PA1
Conveyor track 1
