Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D 3 / HF- / X-Series Edition 06/2007 201 Fig. 180 Overview HF-/X-Series /D3 (Fig. 4) Dual conveyor Legend (Figs. 3 and 4) Dual conveyor 15 1…
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
200

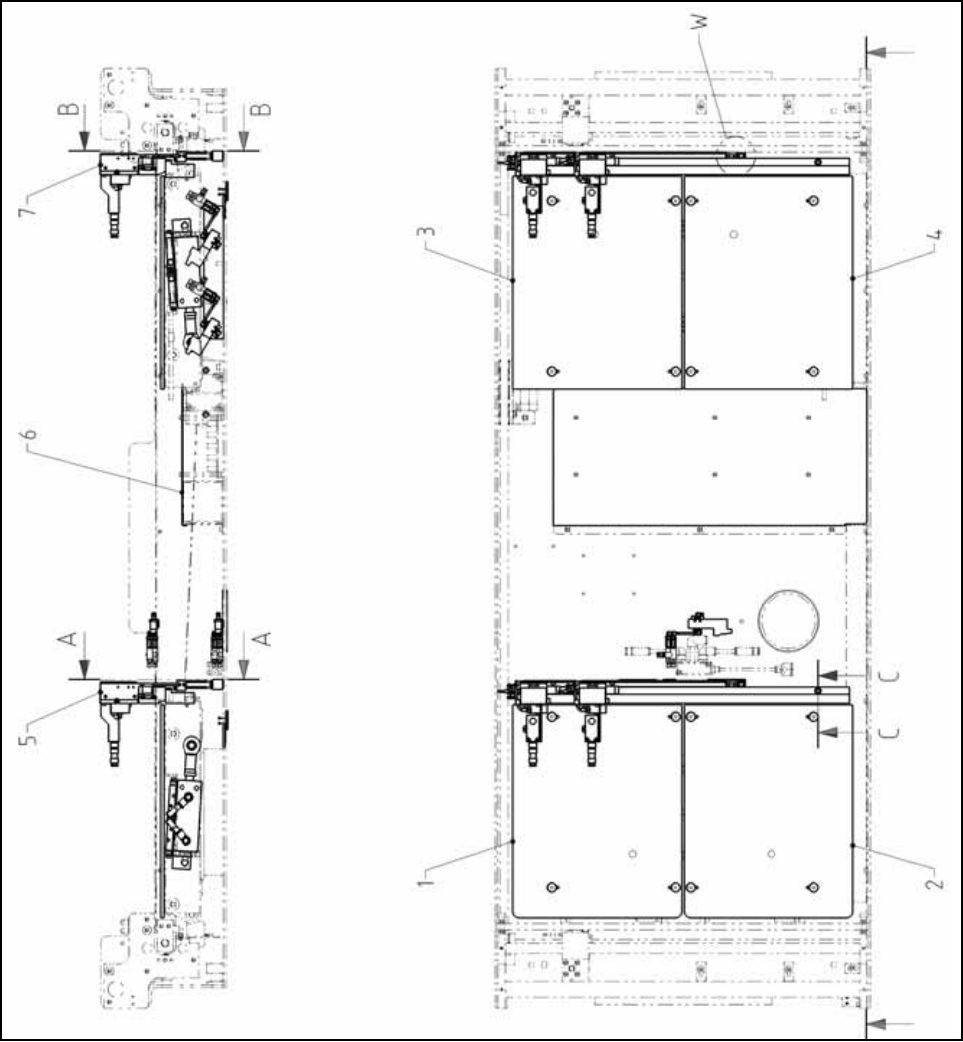

Fig. 179 Overview HF-/X-Series/D3 (Fig. 3) Dual conveyor
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
201

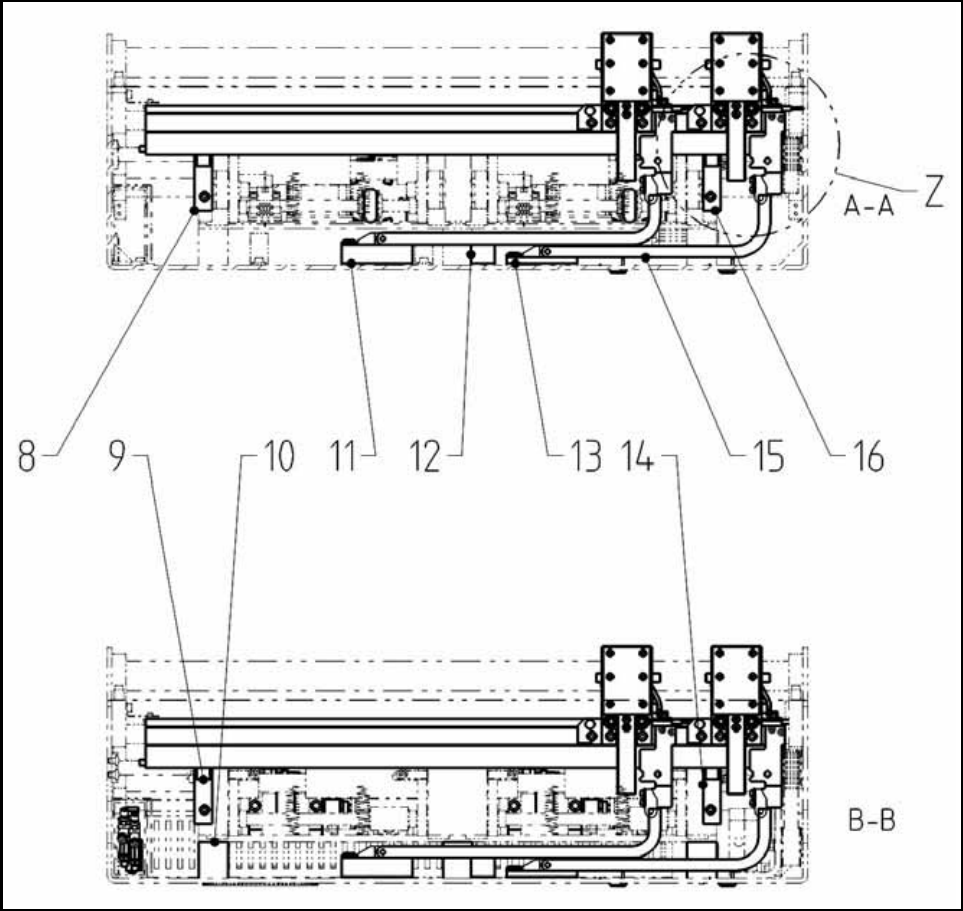

Fig. 180 Overview HF-/X-Series/D3 (Fig. 4) Dual conveyor
Legend (Figs. 3 and 4) Dual conveyor 15
1
Lifting table plate Option Stopper HF DC SP2
9
Distance block for energy chain, compl.
2
Lifting table plate Option Stopper HF DC SP1
10
Energy chain E04
3
Basic unit stopper HS/HF PA1
11
Guide strip HF
4
Basic unit stopper HS/HF PA2
12
ISO 4762 - M5 x 20-8.8, chem. nickel plat.
5
Holder for guide strip PA1 HF
13
ISO 4762 - M4 x 40-8.8, chem. nickel plat.
6
Holder for guide strip PA2 HF
14
DIN EN ISO 7380-M3 x 6-A2
7
Distance block for energy chain, compl.
15
Energy chain holder
8
Distance piece complete
16
ISO 4032 - M3-8
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
202
15.1.2 Preparation of pneumatics
O Detach the supply hose (PUN 4) for width adjustment.
Fig. 181
O Connect the prepared hoses to the conveyor pneumatic distributor as shown in the following
figure.
Fig. 182
Supply
hose (PUN 4)
for width
adjustment
Pneumatic
distributor
Supply hose (PUN 4)
for width adjustment
Supply hose (PUN 4)
for stopper unit
