Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
202
15.1.2 Preparation of pneumatics
O Detach the supply hose (PUN 4) for width adjustment.
Fig. 181
O Connect the prepared hoses to the conveyor pneumatic distributor as shown in the following
figure.
Fig. 182
Supply
hose (PUN 4)
for width
adjustment
Pneumatic
distributor
Supply hose (PUN 4)
for width adjustment
Supply hose (PUN 4)
for stopper unit
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
203
15.2 Installation at placement area 1
The surfaces on which the self-adhesive cable clamps, solenoid valves, etc., are to be stuck later
should be cleaned first with a lint-free cloth moistened with ethyl alcohol. 15
15
15.2.1 Installation of the holders

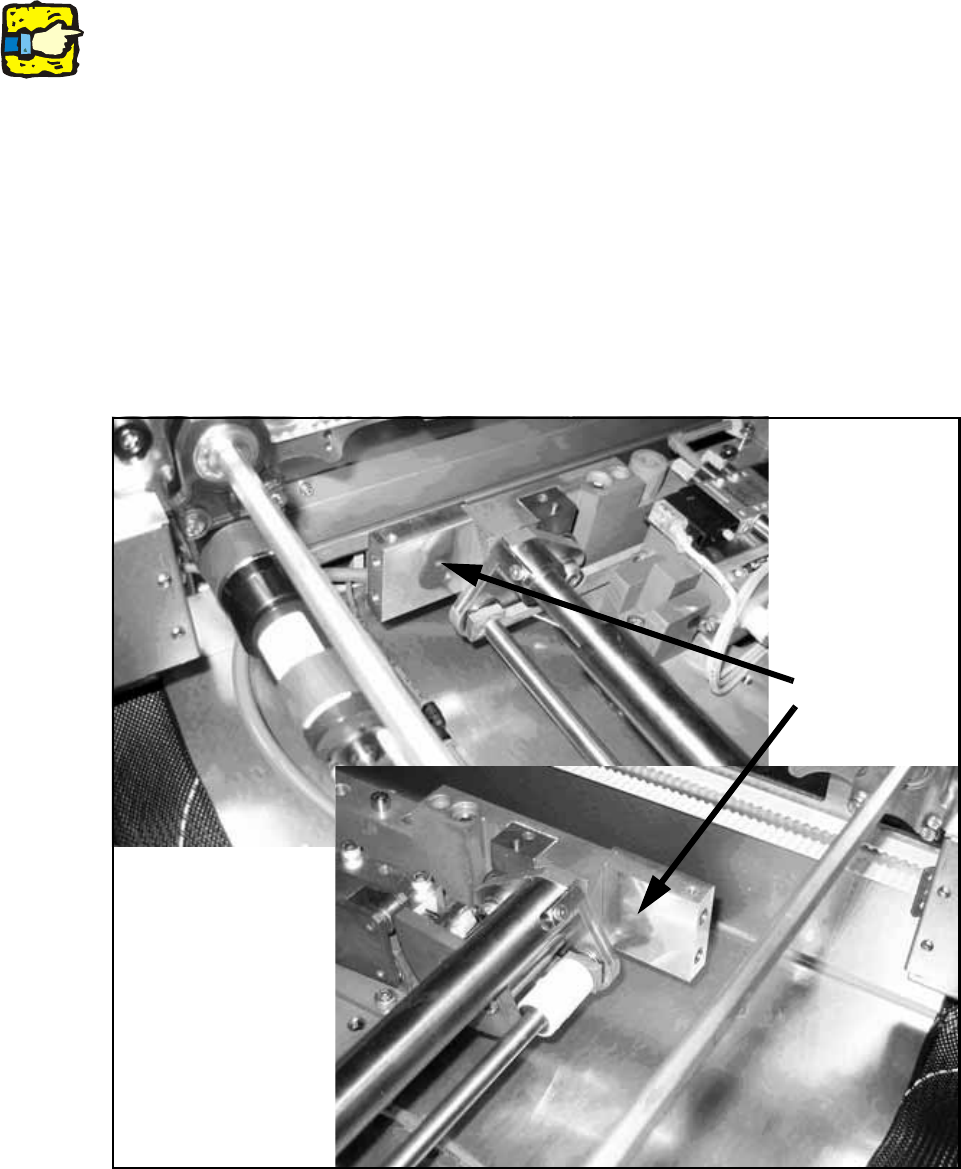

O Install the "Guide strip holders PA1 HF" [03032321-xx] (Fig. 183) for the guide strip of the PCB
stopper. The holders are installed so that they are flush at the top with the lateral frames of the
lifting table. To prevent the holder from twisting, the lateral shoulder of the holder must lie
against the outside of the frames.
Fasten each of the holders with a cylinder head bolt with hexagon socket head
M4 x 40-DIN 912.
Fig. 183 Holders
Holders
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
204
15.2.2 Installation of the stoppers

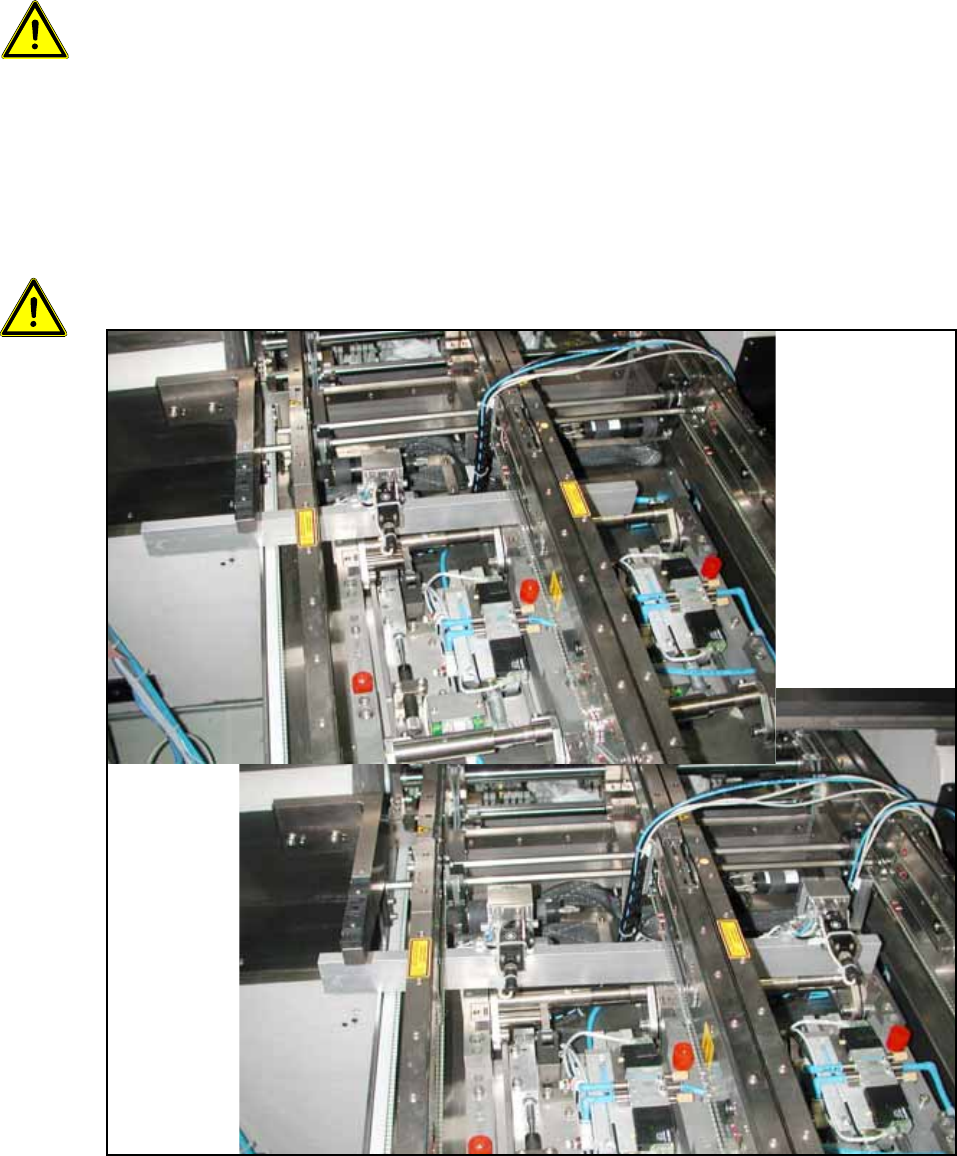

Caution: Before the stopper is mounted in the machine, it should be adjusted with the guide strip
and the shims. Care should be taken to ensure that the stopper is not too loose or too tight. The
graduation of the shims is 0.1mm.
(See also Fig. 209, page - 232.)
O Clean the conveyor tub in the area of the guide strip with a lint-free cloth moistened with ethyl
alcohol.
O Push the guide strip into the conveyor from outside.
O Push the stopper units carefully onto the guide strip.
Be careful not to damage the sliding guides when pushing onto the guide rail!
Fig. 184 Push the guide strip into the conveyor
