15.3 Installation at placement area 2
Caution: Before the stopper is mounted in the machine, it should be adjusted with the guide strip
and the shims. Care should be taken to ensure that the stopper is not too loose or too tight. The
graduation of the shims is 0.1mm.
(See also Fig. 209, page - 232.)
15.3.1 Installation of the holders
O Install the "Guide strip holders PA2 HF" [03032320-xx] for the guide strip of the PCB stopper.
The holders are installed so that they are flush at the top with the lateral frames of the lifting
table. To prevent the holder from twisting, the lateral shoulder of the holder must lie against the
outside of the frames.
Fasten each of the holders with a cylinder head bolt with hexagon socket head
M4 x 40-DIN 912.

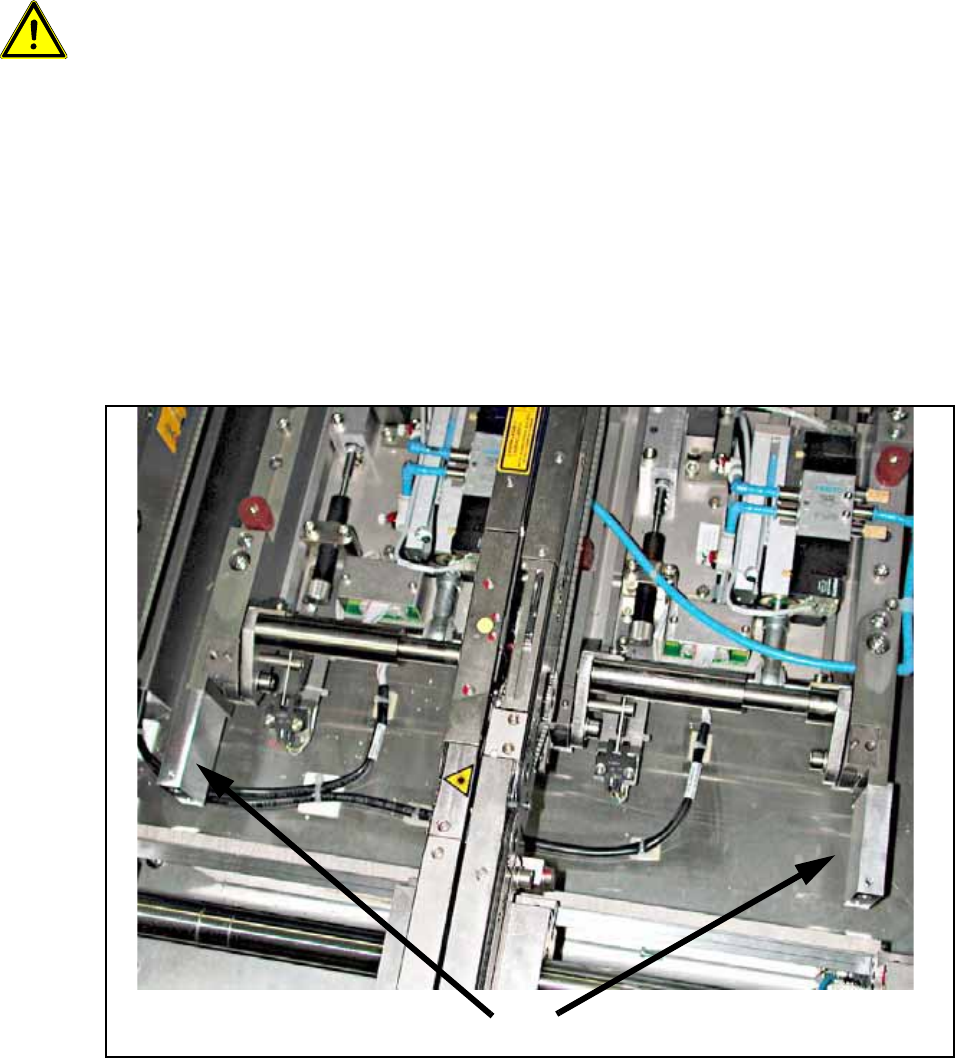

Fig. 187 Holders
Holders
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
208
15.3.2 Installation of the stopper
O Clean the conveyor tub in the area of the guide strip with a lint-free cloth moistened with ethyl
alcohol.
O Push the guide strip into the conveyor from outside. Push the stopper units carefully between
the two side sections into the guide slot of the guide strip.
Be careful not to damage the sliding guides when pushing them onto the guide rail.

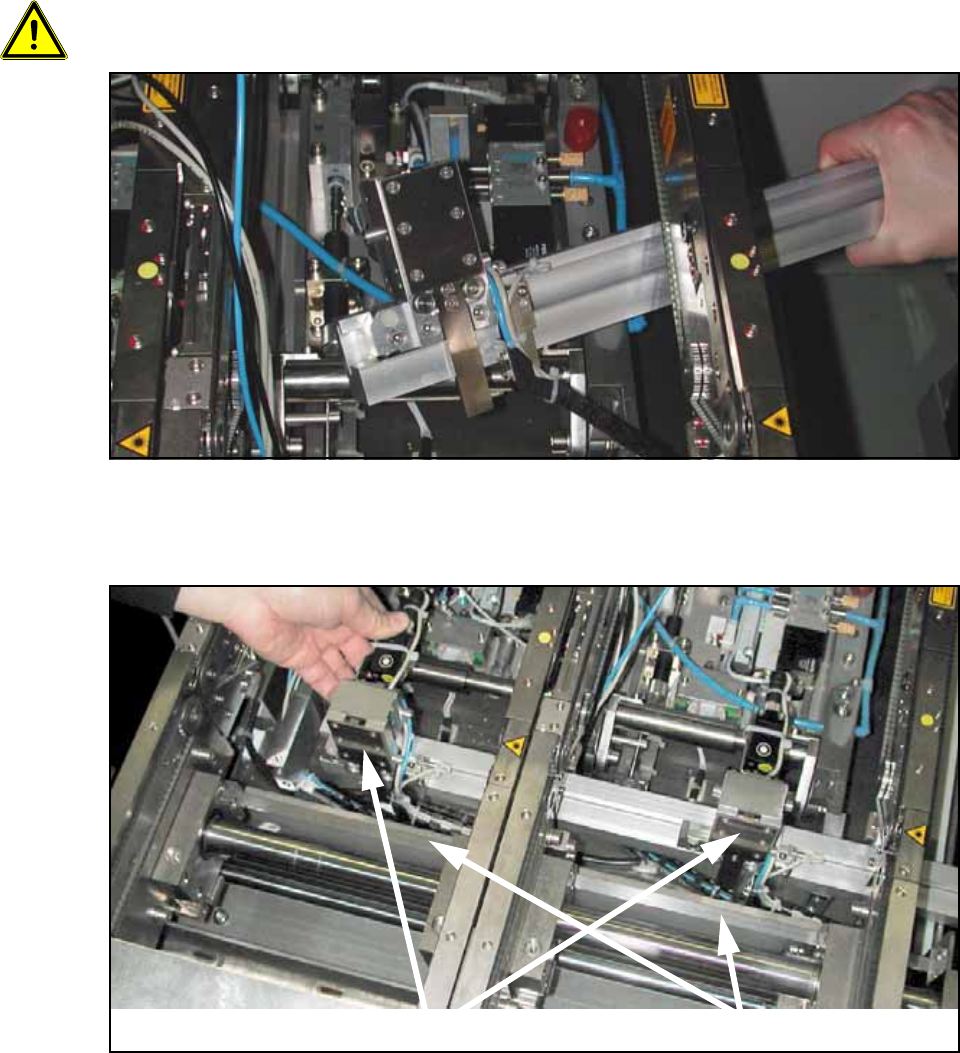

Fig. 188 Guide strip
O Hold the guide strip in its final position. Test whether the trailing cable can move freely by push-
ing it to the end from the side.
Fig. 189
Stopper
Terminal strip of width adjust-
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
209
O For the HF-/X-Series (mounting tub 604 mm) with dual and single conveyor, the following dis-
tances must be observed:

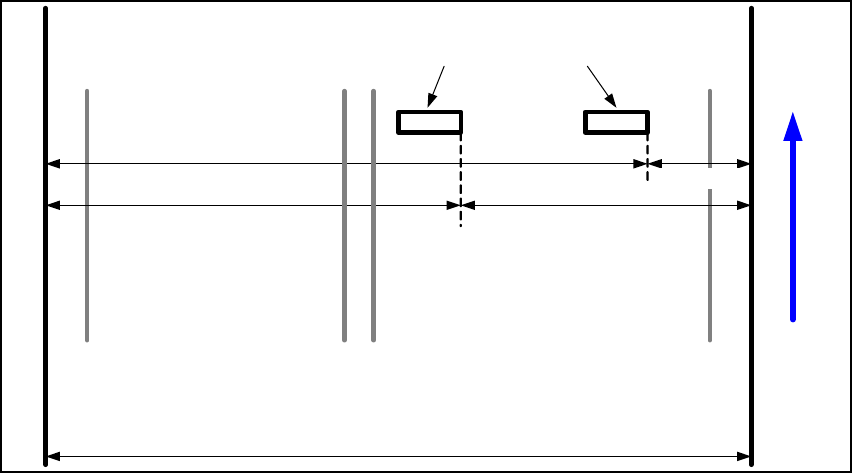

Fig. 190 Distances for the trailing cable distance blocks (HF-Series, X-Series, D3)
For a dual conveyor, stick an additional "Distance block for energy chain, complete" in the mid-
dle between the two distance blocks for better movement of the trailing cable. [03043432-xx]. 15
O Using the adhesive tape, stick the distance block of the trailing cable onto the mounting tub
under the second conveyor side parallel to the guide rail (or to the width adjustment) in such a
way that the trailing cable stands vertical when the guide rail is installed.
Conveyor track 2 Conveyor track 1
Distance block for energy chain
Left
conveyor side
Right
conveyor side
340 mm 260 mm
440 mm
160 mm
Transport direction
Left side of
mounting tub
Right side of
mounting tub
604 mm
