Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D 3 / HF- / X-Series Edition 06/2007 213 Placement area 2 15 O Position the solenoid valve and the throttles in the conveyor tub wit h self-…
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
212
15.3.3.2 Cable laying
Placement area 1 15
O Position the solenoid valve and the throttles in the conveyor tub so that the functions of the
stopper and the width adjustment are not impaired. Stick the solenoid valve firmly into place as
shown in Fig. 192 on page 211.
Note: The throttles are preset and do not have to be adjusted. Position the throttles so that they
are still accessible, however.

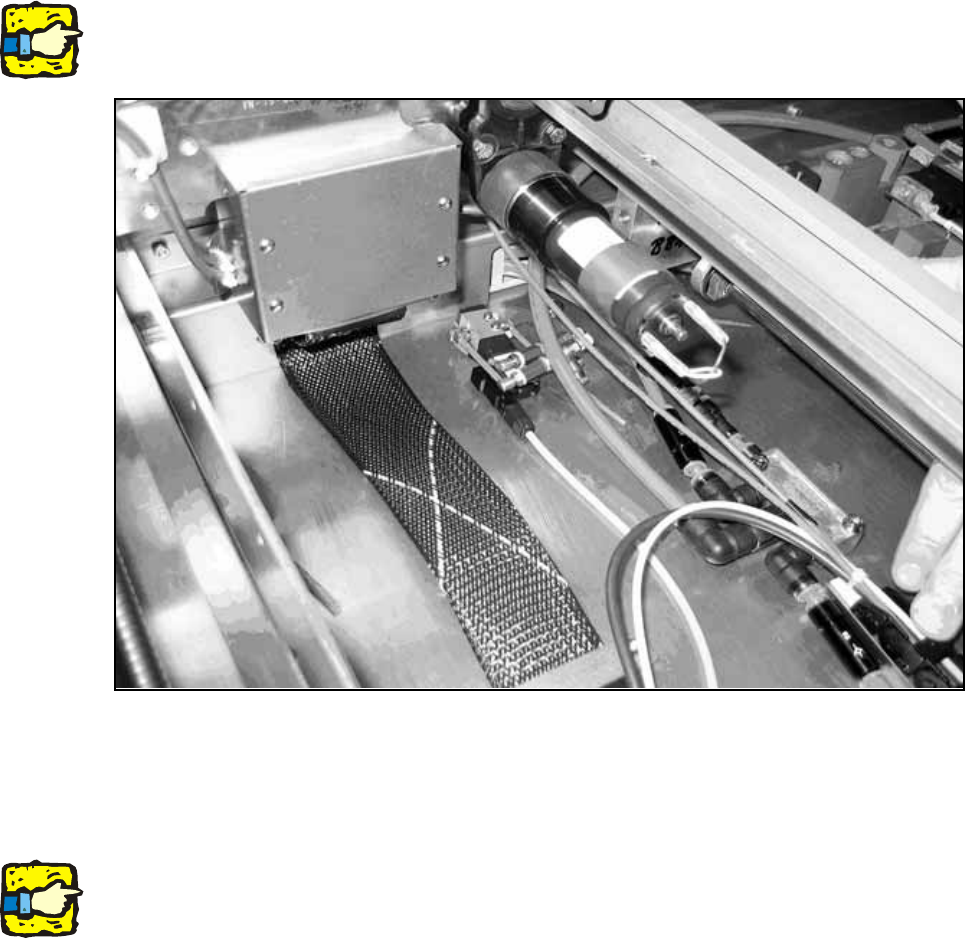

Fig. 193
O Before you start laying the lines, label the connectors with the respective conveyor track.
O Lay the three lines per unit (valve, sonar proximity switch and sensor) to the right hand side of
the machine
Note: When laying the lines take care to ensure that the functions of the stopper and the width
adjustment are not impaired.
O Route the cables and the 2-way distributor with the long feed line through the cable duct to the
conversion board that is in placement area 2.
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
213
Placement area 2 15
O Position the solenoid valve and the throttles in the conveyor tub with self-adhesive cable
clamps and cable ties so that the functions of the stopper and the width adjustment are not im-
paired. Stick the solenoid valve in place as shown in Fig. 192 on page 211.

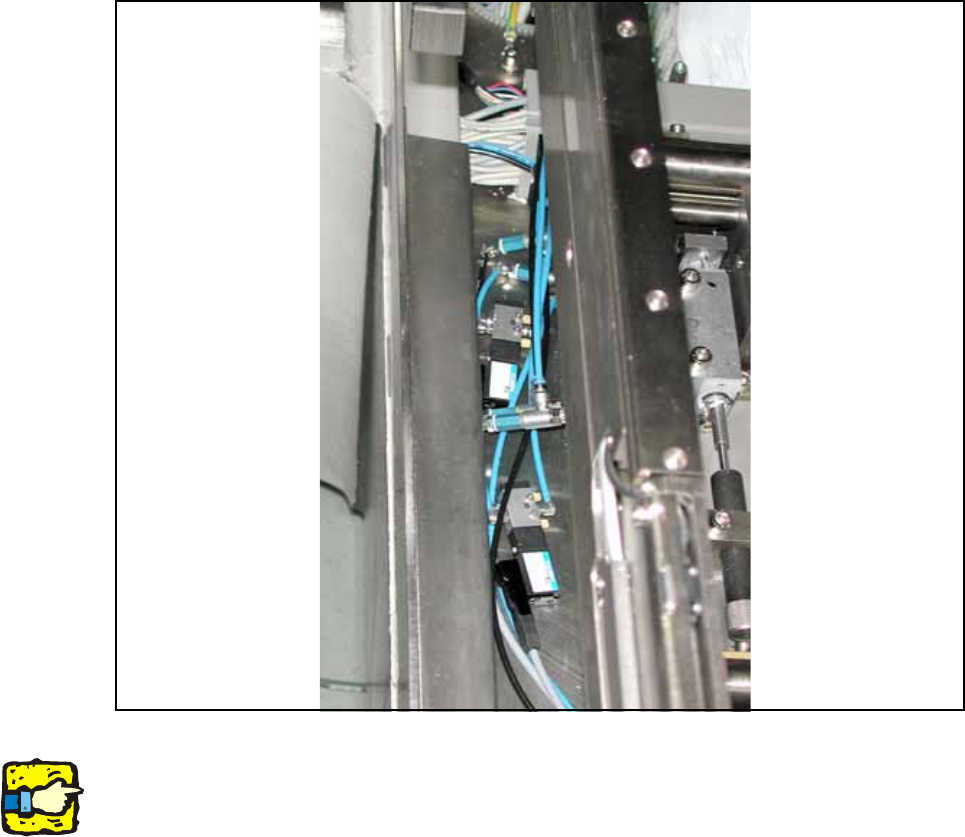

Fig. 194 Placement area 2
Note: The throttles are preset and do not have to be adjusted. Position the throttles so that they
are still accessible, however.
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
214
O Before you start laying the lines, label the connectors with the respective conveyor track.
O Lay the three lines per unit (valve, sonar proximity switch and sensor) in the cable ducts to the
conversion board. If necessary, use the cable ties and self-adhesive cable clamps.
Note: When laying the lines take care to ensure that the functions of the stopper and the width
adjustment are not impaired.
O Plug the connectors onto the conversion board.
O Plug the bridge onto X6 on the conversion board.
Fig. 195 Conversion board
