Assembly Instructions PCB Stopper Sin gle Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series Edition 06/2007 220 15.5 Pneumatics plan HF-, X-Series, D3 Fig. 199 Pneumatics plan HF-, X-Series, D3
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
219
O Re-install the covers for the cable ducts.
O Re-install the metal covers for the lateral cable ducts.
O Re-install the cover for the conversion board.
O Install the shortened lifting table plates.
15
Caution: Crash hazard!
Check whether there are any objects left in the machine! Remove them.
O Switch on the placement machine at the main switch.
O Change to SITEST.
O Perform the settings according to:
"Setting the sonar proximity switches on the stopper" see section 16 on page - 221 15
"Software configuration and testing of the stopper" see section 18 on page - 227 15
15
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
220
15.5 Pneumatics plan HF-, X-Series, D3
Fig. 199 Pneumatics plan HF-, X-Series, D3
Retrofit Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Issue 01/2007
221
16 Setting the sonar proximity switches
on the stopper

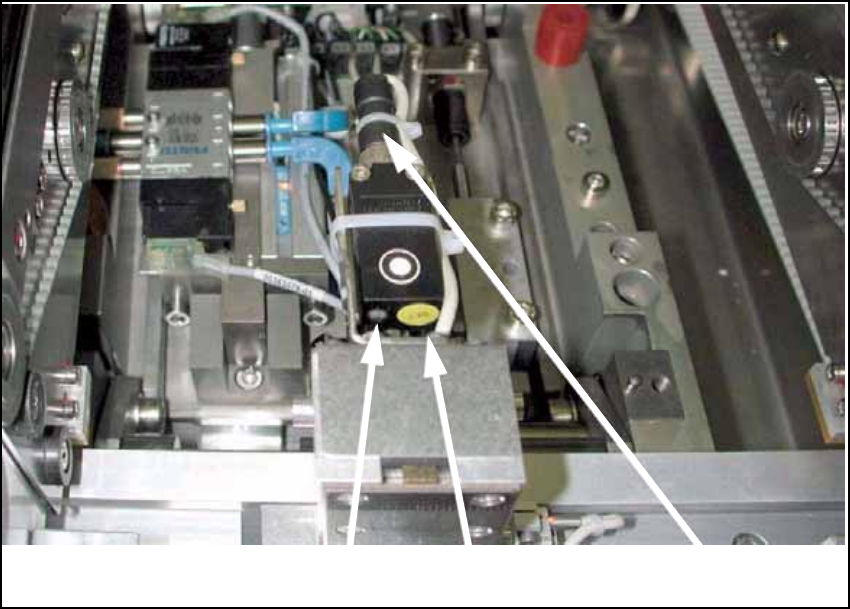

Fig. 200
LED
SET button
Plug-in connection of sensor
