Assembly Instructions PCB Stopper Sin gle Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series Edition 06/2007 226 Legend Basic unit stoppe r (Summary) 17 6 Ultrasonic proximity switch 9 DIN 933-M4 x 16-P A 11 Slid…
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
225

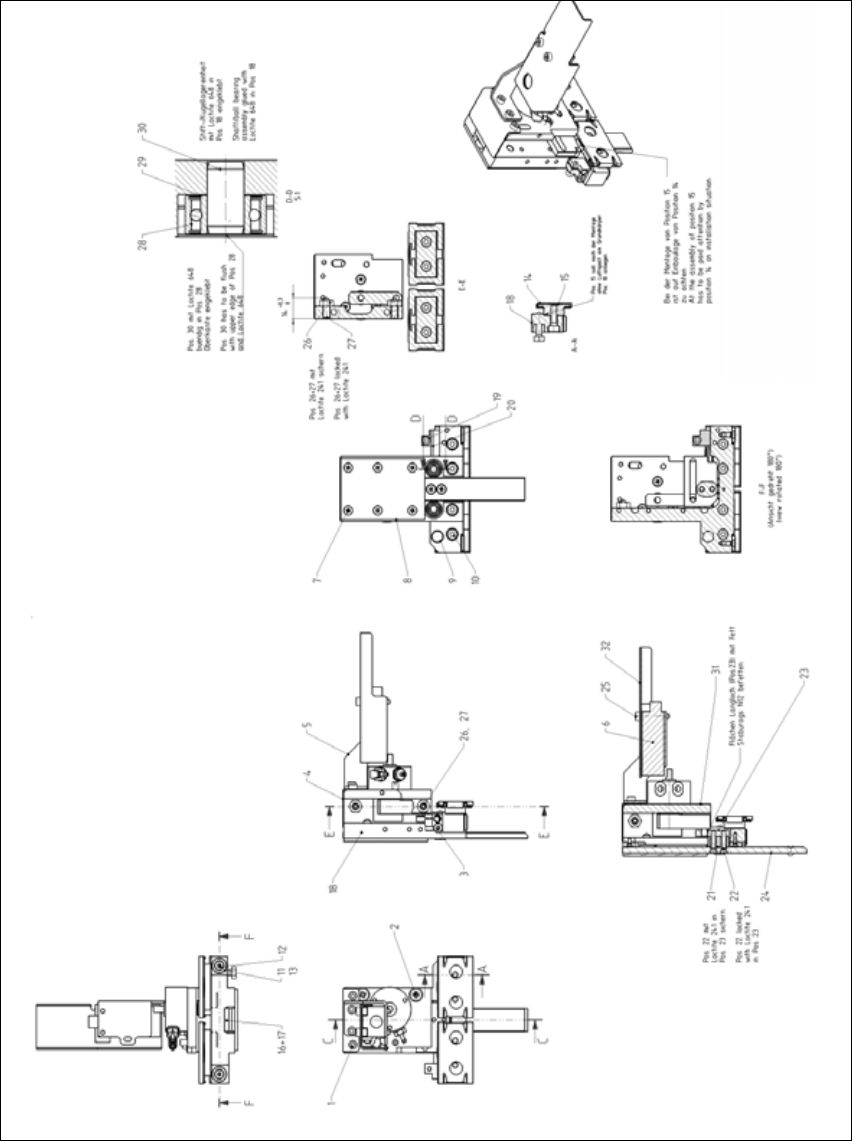

17 Plan of stopper basic unit
Fig. 203 Plan of stopper basic unit [03031923-xx]
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
226
Legend Basic unit stopper (Summary) 17
6 Ultrasonic proximity switch
9 DIN 933-M4 x 16-PA
11 Sliding part
12 Countersunk screw DIN965-M3 x 6-A2
13 DIN 988-5x10x0.1-St 2 K 50
14 DryLin N linear guide system NEK-01-27P
15 Stop carriage
27 Spring plunger M5
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series << >
Edition 06/2007 << >
227
18 Software configuration and testing of
the stopper
O Install the software version 505.03 or 601.03 or higher, if this has not already been done.
Use the corresponding software installation instructions for this.
18

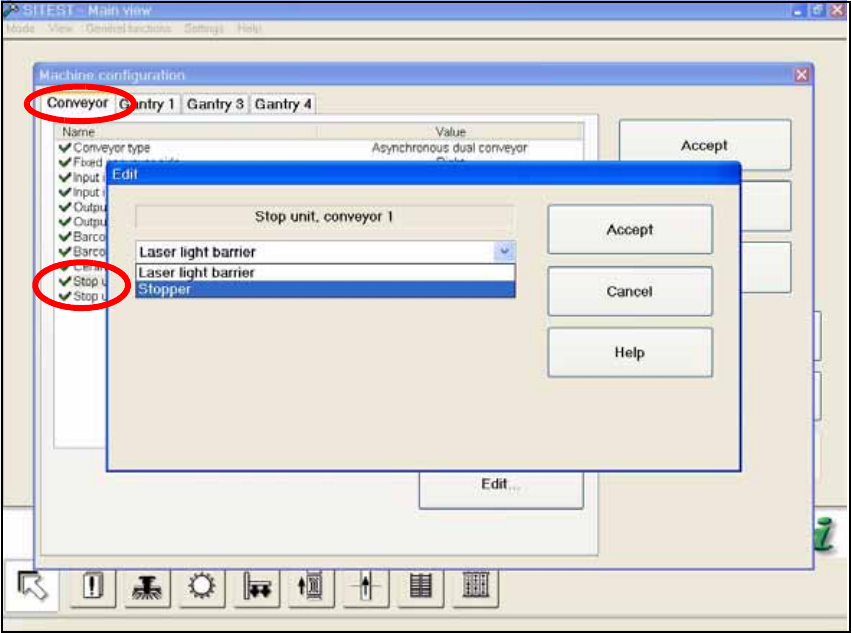

O Change over to the SITEST and in the "Machine configuration" menu activate the stopper for
every conveyor track by changing from "Laser light barrier" to "Stopper".
Fig. 204
A message is displayed that the machine has been reconfigured and is closing down. 18
O Confirm this message.
