SIPLACE Software Guide Version 101.xx 3 Graphical user interface Issue 05/03 EN 3.2 Components of the user interface 17 3.2 Component s of the user interface 3 Fig. 3.2 - 1 Components of the user interface (for example, …
3 Graphical user interface SIPLACE Software Guide Version 101.xx
3.1 Inputs and controls Issue 05/03 EN
16
3 Graphical user interface
This section describes how to use the various controls such as the keyboard, trackball and mouse
buttons and also introduces the functions of the individual components of the graphical user inter-
face. 3
WARNING
In addition, the safety notes of the User Manual for SIPLACE CS/CF take priority. 3
3.1 Inputs and controls
Keyboard 3
The keyboard with its integrated trackball and mouse buttons acts as the standard input tool for
the graphical user interface of the station computer software. 3
Trackball and mouse buttons 3
You use the trackball to move the mouse pointer across the user interface to the desired object
and then use the left mouse button to select the object or execute the appropriate function. 3
NOTE
In this guide, triggering an action using the left mouse button is always referred to as "clicking".3
3
SIPLACE Software Guide Version 101.xx 3 Graphical user interface
Issue 05/03 EN 3.2 Components of the user interface
17
3.2 Components of the user interface
3

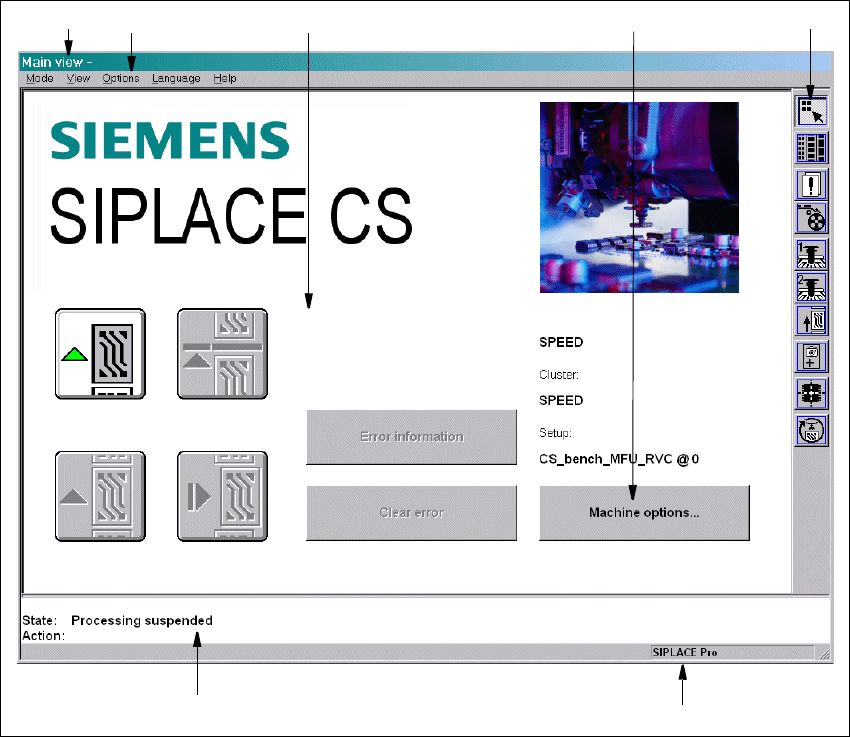

Fig. 3.2 - 1 Components of the user interface (for example, the Main view of the CS)
3
Key to Fig. 3.2 - 1
(1) Title bar
(2) Menu bar
(3) Working area/display area
(4) Controls
(5) Toolbar
(6) Status area
(7) Info bar
1
6
7
5
2
3
4
3 Graphical user interface SIPLACE Software Guide Version 101.xx
3.2 Components of the user interface Issue 05/03 EN
18
3
Fig. 3.2 - 2 Components of the user interface (for example, the Main view of the CF)
3
Key to Fig. 3.2 - 1
(1) Title bar
(2) Menu bar
(3) Working area/display area
(4) Controls
(5) Toolbar
(6) Status area
(7) Info bar
3
1
6
7
5
2
3
4
