3 Graphical user interface SIPLA CE Software Guide Version 101.xx 3.3 User interface - views and menus Issue 05/03 EN 36 Æ Click the checkboxes corresponding to the machi ne options which you want to act ivate or de- act…

SIPLACE Software Guide Version 101.xx 3 Graphical user interface

Issue 05/03 EN 3.3 User interface - views and menus

3.3.2.4 "Options" menu

The "Options" menu is only available in the main view. This menu contains all the supplementary

functions. 3

Æ Click the required menu item and then make the appropriate settings or selections in the cor-

responding windows or dialog boxes.

Machine options... 3

Depending on access level, you can obtain information about the station configuration ("Opera-

tor") or activate or deactivate the displayed machine options ("Line engineer", "Service"). 3

Æ Click the Machine options... menu item (or the appropriate button in the working area of the

main view). The following window is displayed.

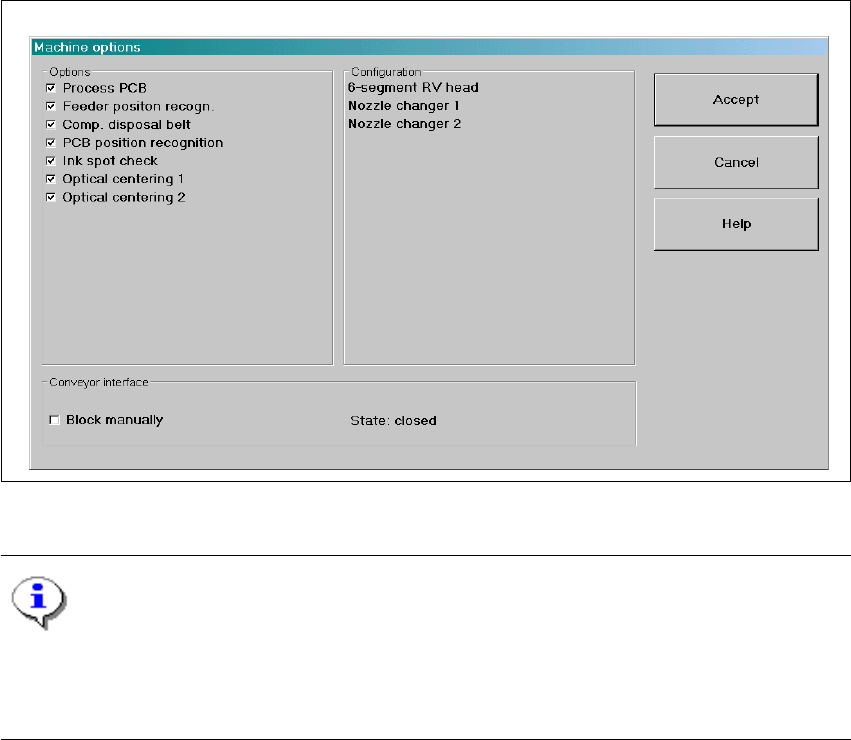

Fig. 3.3 - 4 "Machine options" dialog box (example: SIPLACE CS)

NOTE

Only those machine options are displayed which are configured at the current station.

This dialog box may contain different information and check boxes depending on the type of

SIPLACE machine being used. 3

3 Graphical user interface SIPLACE Software Guide Version 101.xx

3.3 User interface - views and menus Issue 05/03 EN

Æ Click the checkboxes corresponding to the machine options which you want to activate or de-

activate.

NOTE

At "Operator" access level, it is only possible to activate and deactivate the conveyor interface op-

tions. 3

Æ Click Accept to save the settings.

SIPLACE Software Guide Version 101.xx 3 Graphical user interface

Issue 05/03 EN 3.3 User interface - views and menus

Access level... 3

It is possible to protect some of the functions of the user interface against unauthorized use by

setting an access level and allocating a password. Functions which are not accessible from a

given access level cannot be executed since the associated push buttons, radio buttons and

menu commands are either inactive or not displayed. 3

You can choose between the access levels "Operator", "Line engineer" and "Service". Passwords

can be allocated for the access levels "Line engineer" and "Service". 3

Æ Click the Access level... menu item.

The "Access level" dialog box is displayed.

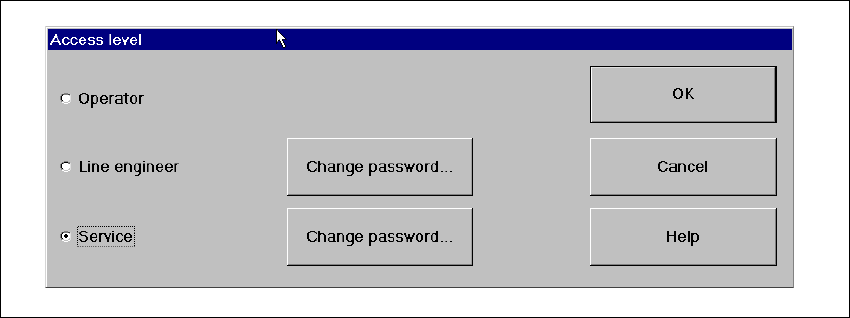

Fig. 3.3 - 5 "Access level" dialog box

Æ Click the radio button for the required access level.

Æ Click the "Change password" button to the right of the access level if you want to allocate a

password or change an existing password.

The dialog box for password entry is now displayed.
