SIPLACE Software Guide Version 101.xx 3 Graphical user interface Issue 05/03 EN 3.3 User interface - views and menus 41 W ARNING Settings for test commands and test command execution sh ould be performed by service engi-…

3 Graphical user interface SIPLACE Software Guide Version 101.xx

3.3 User interface - views and menus Issue 05/03 EN

New panel... 3

In "Stand alone" mode, you can load the data for a selected panel from the station computer’s hard

disk. 3

Æ Click the New panel... menu item. The following dialog appears:

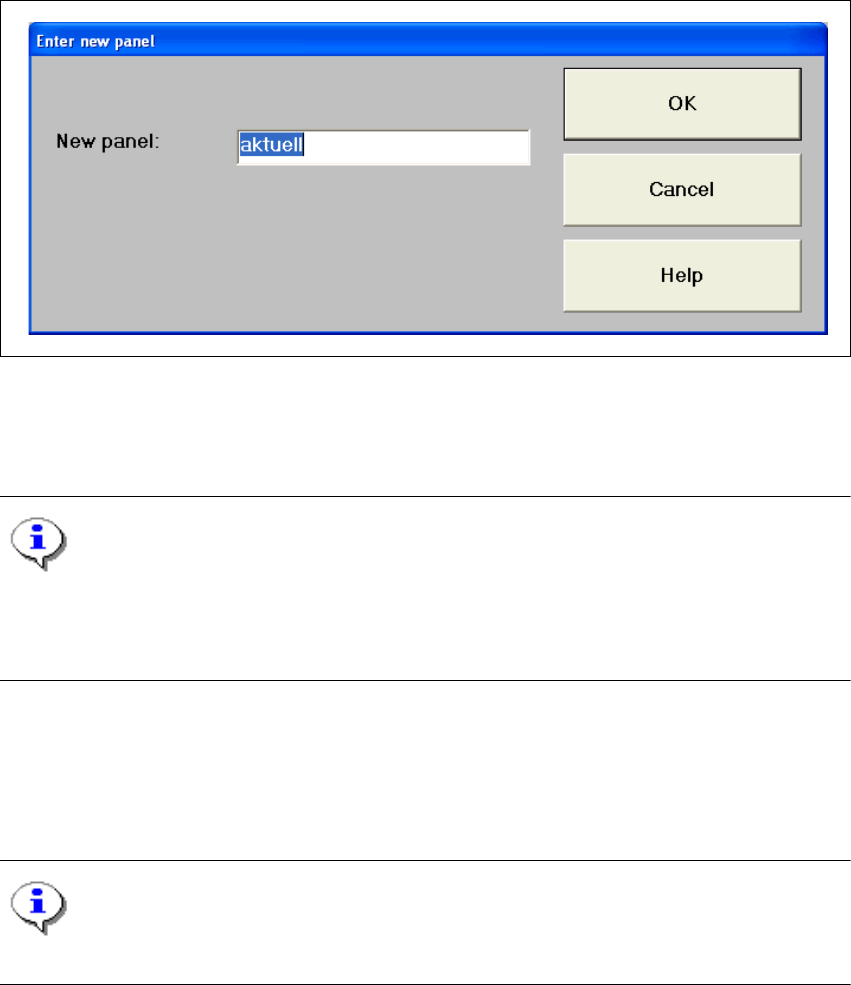

Fig. 3.3 - 9 "Enter new panel" dialog box

Æ Now enter the name of the required panel in the displayed text box and click OK to confirm.

The panel data is now loaded.

NOTE

The data, including the fiducial and component package form data, of the last panel successfully

specified by SIPLACE C Pro, is now saved on the station computer’s hard disk under the panel

name "AKTUELL" and can be loaded by entering this name. 3

Software... 3

This menu item is used to activate the test commands (test functions) for checking a variety of

machine components. 3

NOTE

This menu item can only be called from the "Service" access level. 3

SIPLACE Software Guide Version 101.xx 3 Graphical user interface

Issue 05/03 EN 3.3 User interface - views and menus

WARNING

Settings for test commands and test command execution should be performed by service engi-

neers only. 3

Æ Click the Software... menu item.

The following window is opened.

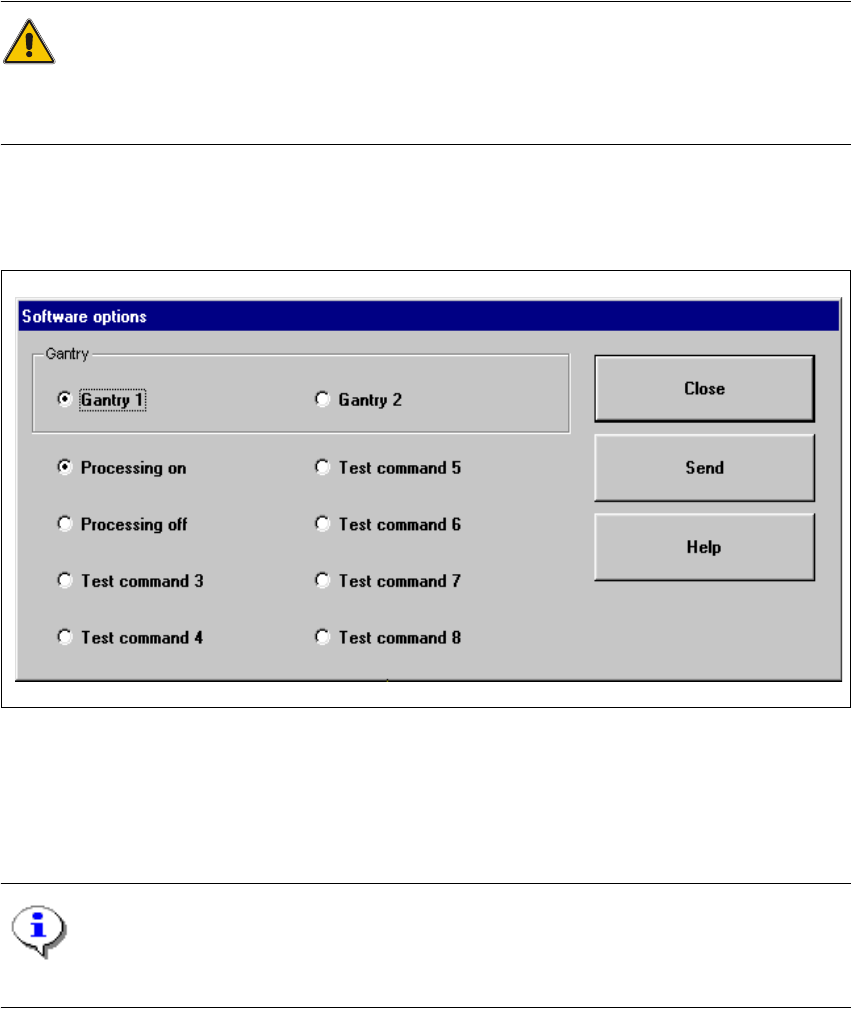

Fig. 3.3 - 10 "Software options" dialog box (example: SIPLACE CS)

Æ Select the required gantry and activate/deactivate the test commands by clicking the corre-

sponding radio buttons.

Æ Click Close to set the software options.

NOTE

When the station is rebooted, the software options are reset to their original settings. 3

3 Graphical user interface SIPLACE Software Guide Version 101.xx

3.3 User interface - views and menus Issue 05/03 EN

Cycle mode... Alt+t 3

This menu item can be used to switch the station to cycle mode (after pressing the stop button).

This function can be used to localize errors. 3

Æ Click the Cycle mode... menu item or press the key combination ALT+t. The "Cycle mode"

settings box is opened.

Æ Click the On radio button to activate cycle mode or the Off radio button to deactivate it.

Æ Click the OK button. Cycle mode is now either activated or deactivated.

NOTE

In cycle mode, you must press the Start button on the machine for every operating step. 3

Load table program 3

This menu item allows you to reload the table program into the memory of the table program

controller. You may need to do this, for example, if a machine error has resulted in the loss of the

table program. 3

NOTE

This function cannot be executed in "Operator" access mode. 3

Æ Click the menu item "Load table program".

The program is loaded. (The loading process can take some time).

Video image > Alt+8 3

In the case of certain actions, it may be necessary to display the camera image of the machine

vision system (vision evaluation unit) on-screen during assembly. 3

Æ Click the Video image > menu item or press the key combination ALT+8. The display area is

switched to the MVS camera image in processing area 1.

Æ Press the ESC key to restore the display area to the normal view.
