SIPLACE Software Guide Version 101.xx 4 Switching the SIPLACE line on and off Issue 05/03 EN 4.1 Switching on the SIPLACE line 45 4 Switching the SIPLACE line on and off This chapter contain s information about switching…

3 Graphical user interface SIPLACE Software Guide Version 101.xx

3.3 User interface - views and menus Issue 05/03 EN

SIPLACE Software Guide Version 101.xx 4 Switching the SIPLACE line on and off

Issue 05/03 EN 4.1 Switching on the SIPLACE line

4 Switching the SIPLACE line on and

off

This chapter contains information about switching the SIPLACE line on and off. 4

4.1 Switching on the SIPLACE line

4.1.1 Starting the SIPLACE C Pro programming system

Æ Start SIPLACE C Pro from the Windows NT Start menu:

Start --> Programs --> Siemens SIPLACE

Æ Start SIPLACE C Pro

by clicking the icon on your desktop.

The system then connects to SIPLACE Pro Server and opens up the SIPLACE C Pro user inter-

face. 4

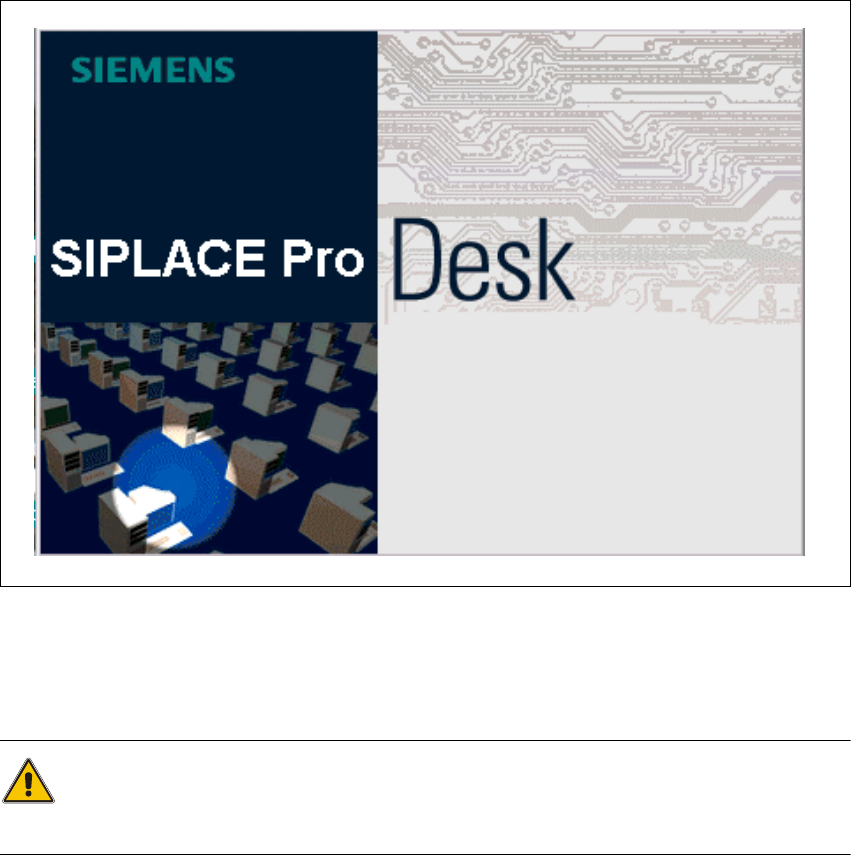

While you are waiting for the system to connect to the SIPLACE Pro Server you will see the fol-

lowing screen. 4

4 Switching the SIPLACE line on and off SIPLACE Software Guide Version 101.xx

4.1 Switching on the SIPLACE line Issue 05/03 EN

Fig. 4.1 - 1 Starting SIPLACE C Pro

4.1.2 What to check before switching on the stations

CAUTION

Carry out the steps described below before switching on the stations. 4

Æ Check to make sure that the stations are connected to both the power supply and to the com-

pressed air supply.

Æ Carry out a visual inspection of the stations. In particular, make sure that there are no obstruc-

tions in the traveling range of the gantries.

Æ Make sure that the z-axes of all heads are in the top end position.

Æ Close the feeder covers and the protective covers.

Æ Make sure that there is no diskette in the disk drive of the station computer.
