6 Online Help system SIPLACE Software Guide Version 101.xx 6.1 General Issue 05/03 EN 62 6.1.1.3 Displaying help on the current view Æ In the Help menu, click the Help menu item to ca ll the Help system, or use th e key …
SIPLACE Software Guide Version 101.xx 6 Online Help system
Issue 05/03 EN 6.1 General
61
6.1.1.2 Displaying help for a particular topic area
Æ In the Help system’s "Contents" screen (see Fig. 6.1 - 2), click the entry for the required topic
area (e.g. "Help About Help").
Help information on the selected topic area is now presented in the display area (see example in
Fig. 6.1 - 3).
6

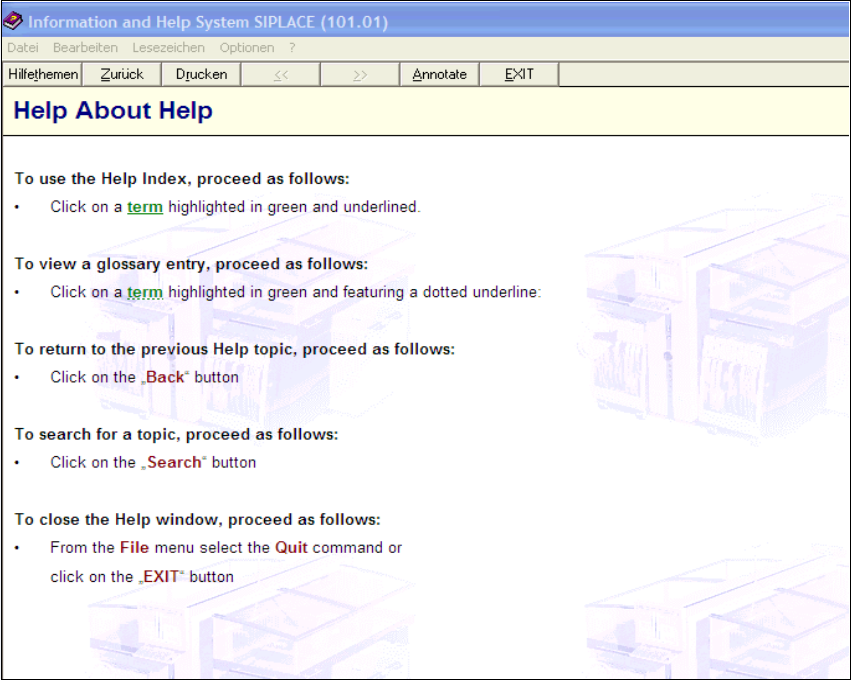

Fig. 6.1 - 3 Example: Topic area "Help About Help"
6
6
6
6
6 Online Help system SIPLACE Software Guide Version 101.xx
6.1 General Issue 05/03 EN
62
6.1.1.3 Displaying help on the current view
Æ In the Help menu, click the Help menu item to call the Help system, or use the key combination
Alt + F1. The main Help system window is opened.
The display area now displays help information on the functions of the view which is currently
active in the station computer user interface (see example in Fig. 6.1 - 4).
6

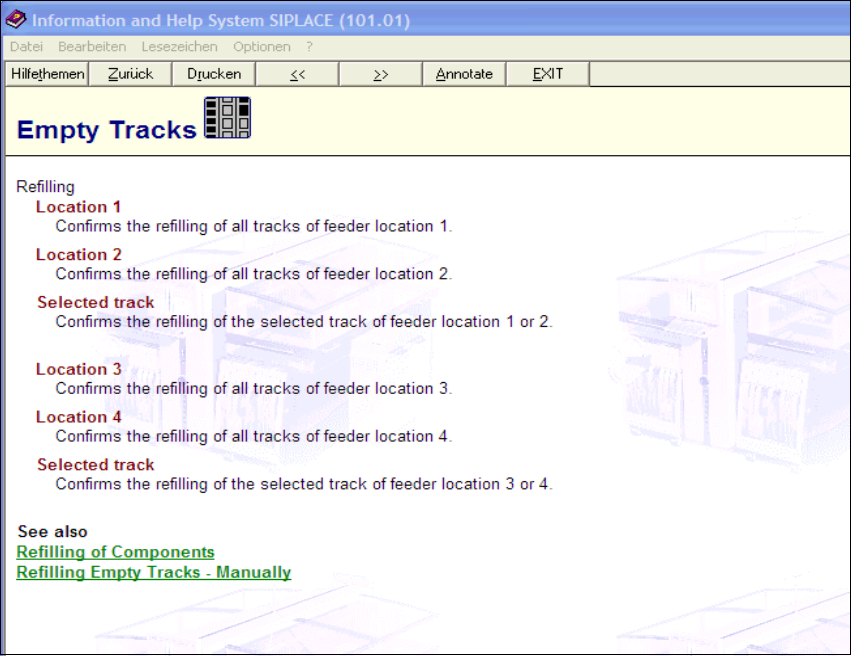

Fig. 6.1 - 4 Example: Help on the current view "Empty Tracks"
6
Any entry which is linked to supplementary help information is displayed in green and under-
lined. When you click one of these entries, the display area switches to the help information for
the corresponding topic. 6
6
6
SIPLACE Software Guide Version 101.xx 6 Online Help system
Issue 05/03 EN 6.1 General
63
6.1.1.4 Calling general station computer information
Æ In the Help menu, click the Info... item.
The following window is opened.
Fig. 6.1 - 5 Information about the station computer (example: version 101.01)
6
This displays the version designation of the SC software currently installed on the station com-
puter together with general station computer data.
6
6
6
