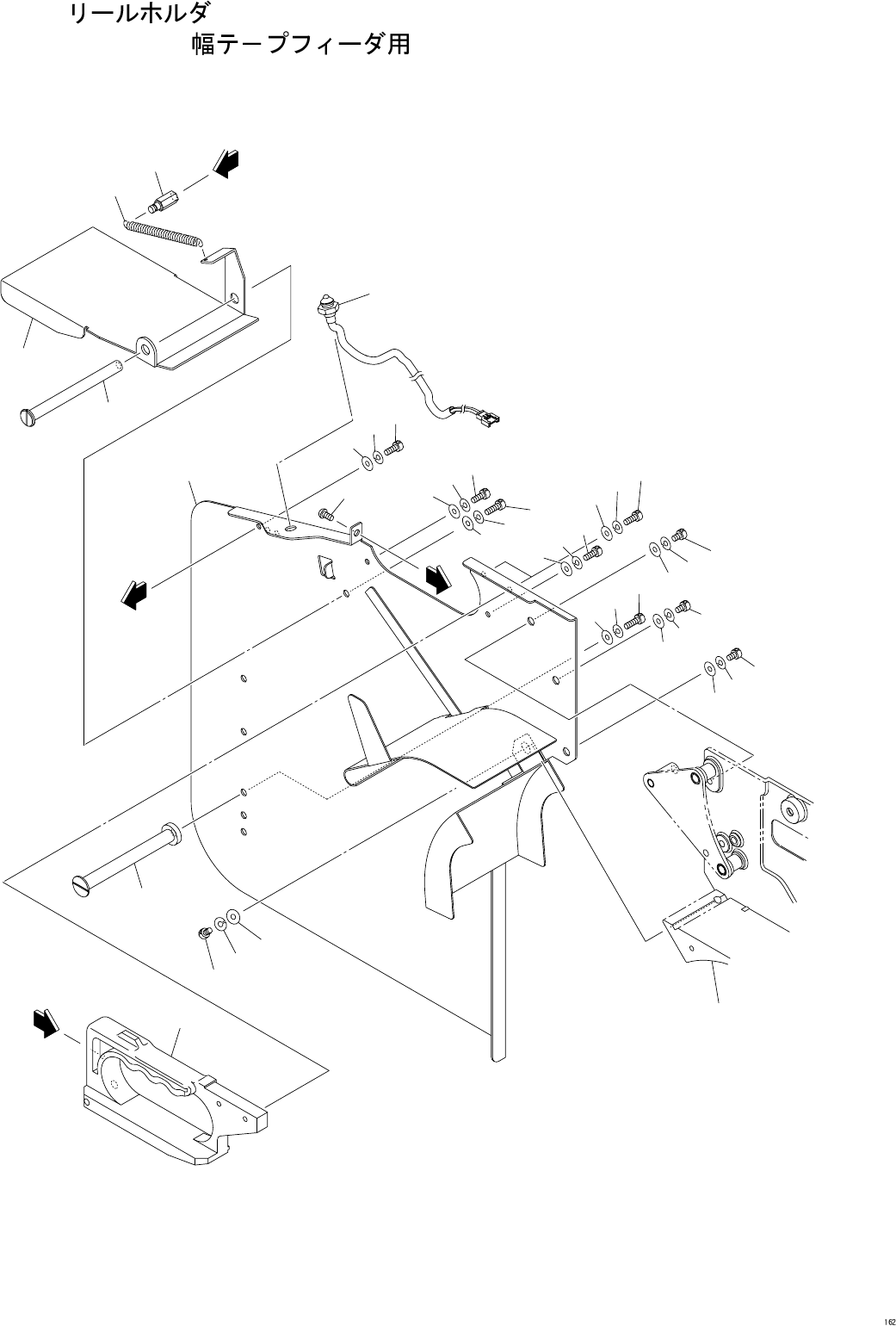

0301-002 RI-5610 REEL HOLDER RI-5610 Fig. TL-1 56mm FOR 56mm T APE FEEDER 14 13 9 14 13 9 14 13 9 14 13 9 16 15 10 16 15 12 16 15 10 16 15 11 16 15 12 8 A See Fig.T -1 Key No.1 16 15 10 7 3 A 2 1 6 5 4 Fig.TL-1 B B 51
0301-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
T-9
PF-5610
808 630 110 8766 CHUTE 1 755T--010-808
809 630 110 8889 CHUTE 1 755T--010-809
810 411 141 2806 WASHER SPR 3 5 755T--010-114
811 411 141 3902 WASHER V 3X7X0.5 5 755T--010-115
812 630 000 7503 BOLT,HEX-SCT 3 755T--010-117
813 630 000 7527 BOLT,HEX-SCT 2 755T--010-721
0301-002
RI-5610 REEL HOLDER RI-5610
Fig. TL-1 56mm
FOR 56mm TAPE FEEDER
14
13
9
14
13
9
14
13
9
14
13
9
16
15
10
16
15
12
16
15
10
16
15
11
16
15
12
8
A
See Fig.T-1
Key No.1
16
15
10
7
3
A
2
1
6
5
4
Fig.TL-1
B
B
51
0301-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
TL-1
RI-5610
1 630 103 4881 LEVER 1 755TL-010-001
2 630 103 4911 HOLDER 1 755TL-010-002
3 630 103 4942 PIN,LOCATE 1 755TL-010-003
4 630 105 0423 ASSY,HOLDER 1 755TL-010-004
5 630 103 2993 HOOK 1 755TL-010-005
6 630 002 8171 SPRING,TENSION 1 755TL-010-006
7 630 103 3129 GRIP 1 755TL-010-007
8 411 050 5004 SCR TRS 3X6 1 755TL-010-008
9 630 000 7510 BOLT,HEX-SCT 5 755TL-010-009
10 630 000 7619 BOLT,HEX-SCT 3 755TL-010-010
11 630 000 7602 BOLT,HEX-SCT 1 755TL-010-011
12 630 000 7633 BOLT,HEX-SCT 2 755TL-010-012
13 411 141 2806 WASHER SPR 3 5 755TL-010-013
14 411 141 3902 WASHER V 3X7X0.5 5 755TL-010-014
15 411 141 2905 WASHER SPR 4 6 755TL-010-015
16 411 141 4008 WASHER V 4X9X0.8 6 755TL-010-016
51 630 113 8138 ASSY,LAMP 1 755TL-010-051
