リールホルダ RI-2410 REEL HOLDER RI-2410

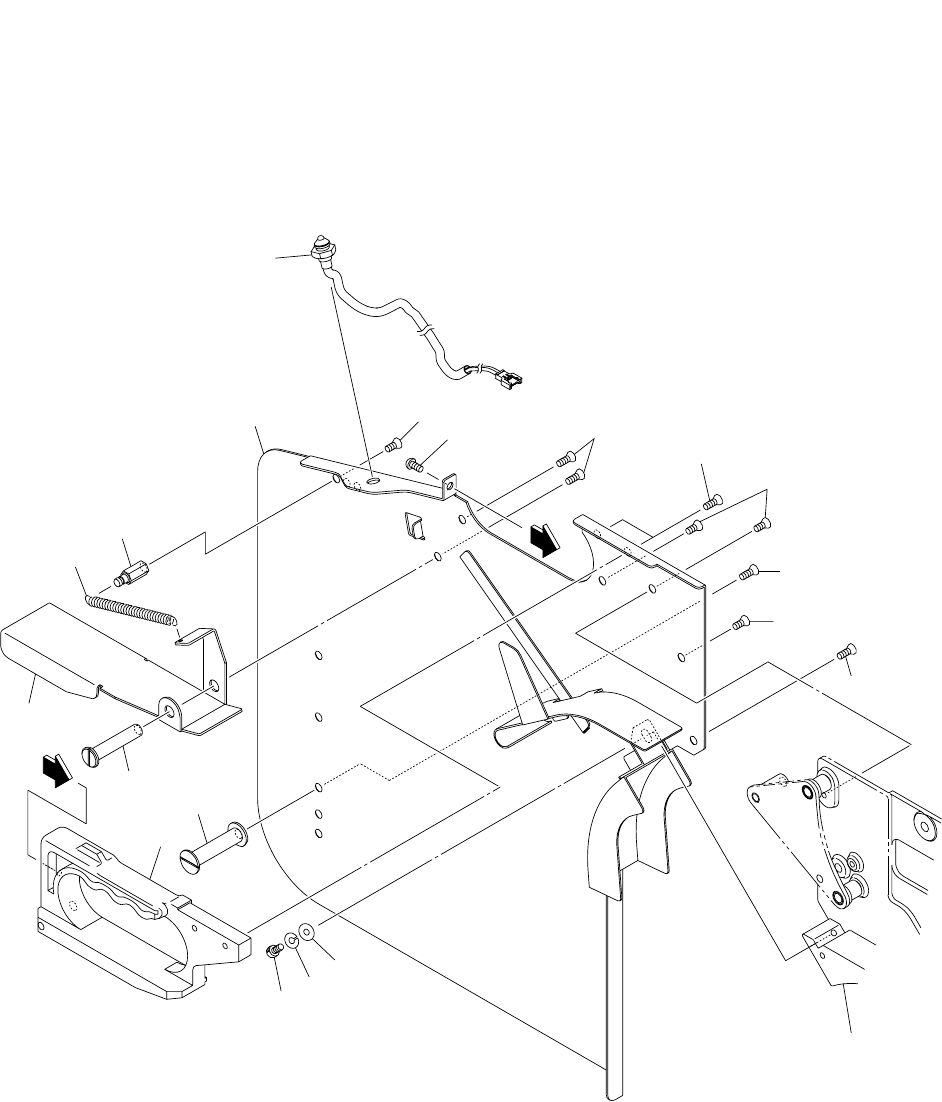

Fig. PL-1 24mm 幅テ－プフィーダ用 FOR 24mm TAPE FEEDER
11
8
10
A
10
11
10
11
10
See Fig.P-1
Key No.1
14
13
9
7
3
2
1
6
5
4
Fig.PL-1
A
51
0112-001
81
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
PL-1
1 630 101 5040 LEVER 1 755PL-010-001
2 630 101 5057 HOLDER 1 755PL-010-002
3 630 101 5026 PIN,LOCATE 1 755PL-010-003
4 630 105 0409 ASSY,HOLDER 1 755PL-010-004
5 630 103 2993 HOOK 1 755PL-010-005
6 630 002 8171 SPRING,TENSION 1 755PL-010-006
7 630 103 3129 GRIP 1 755PL-010-007
8 411 050 5004 SCR TRS 3X6 4 755PL-010-008
9 630 000 7510 BOLT,HEX-SCT 4 755PL-010-009
10 411 034 7208 SCR FLT 3X8 1 755PL-010-010
11 411 002 2600 SCR FLT 3X6 1 755PL-010-011
13 411 141 2806 WASHER SPR 3 1 755PL-010-013
14 411 141 3902 WASHER V 3X7X0.5 1 755PL-010-014
51 630 113 8138 ASSY,LAMP 1 755PL-010-051
