Installation Guide Ausgabe 08/2014 Edition 12 2.3 Connectio n LED-carriers to p ower sup ply Route the cable 0 3102817- 01 throug h the machine to t he power suppl y at location 1 using cable ties and m ounting bases
Installation Guide Ausgabe 08/2014 Edition
11
2.2 Central machine cover
Loosen the 4 screws on both sides of the central machine cover and remove the old cover.
Put the new machine cover with the LED-carriers into the machine and mount the 4 screws.
NOTICE
Please check the correct orientation of the central machine cover according to the
drawing below.
Installation Guide Ausgabe 08/2014 Edition
12
2.3 Connection LED-carriers to power supply

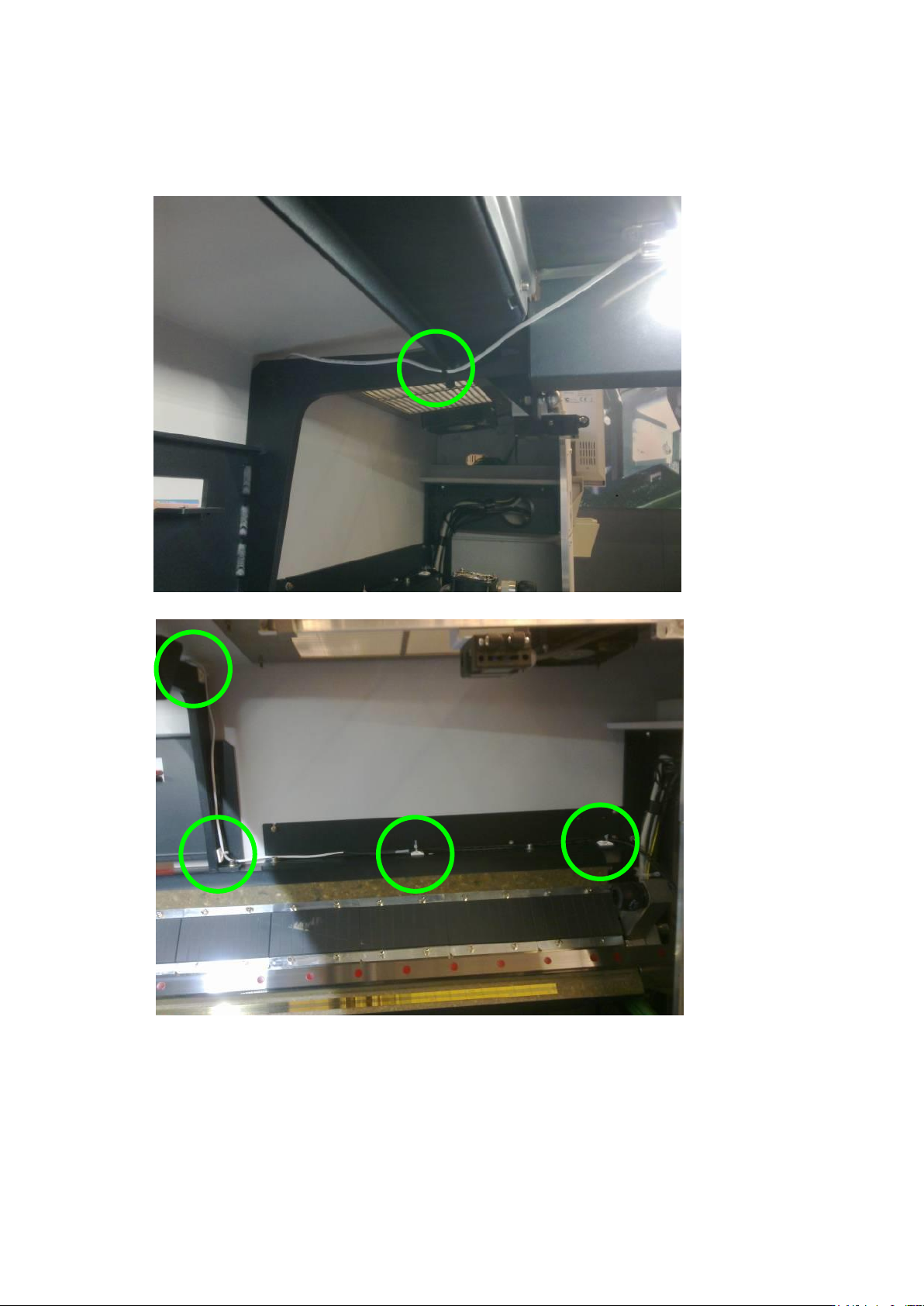

Route the cable 03102817-01 through the machine to the power supply at location 1 using
cable ties and mounting bases
Installation Guide Ausgabe 08/2014 Edition
13
mount the power supply and the passing clamps to the clamping rail
(see wiring diagram in the apendix for details)
