Installation Guide Ausgabe 08/2014 Edition 15 route the cable underne ath the transport m odule 2 3
Installation Guide Ausgabe 08/2014 Edition
14
2.4 Connection location 1 and location 2
Use a PUN8 hose first to route the wires 03102818-01 and 03102822-01 through the machine.

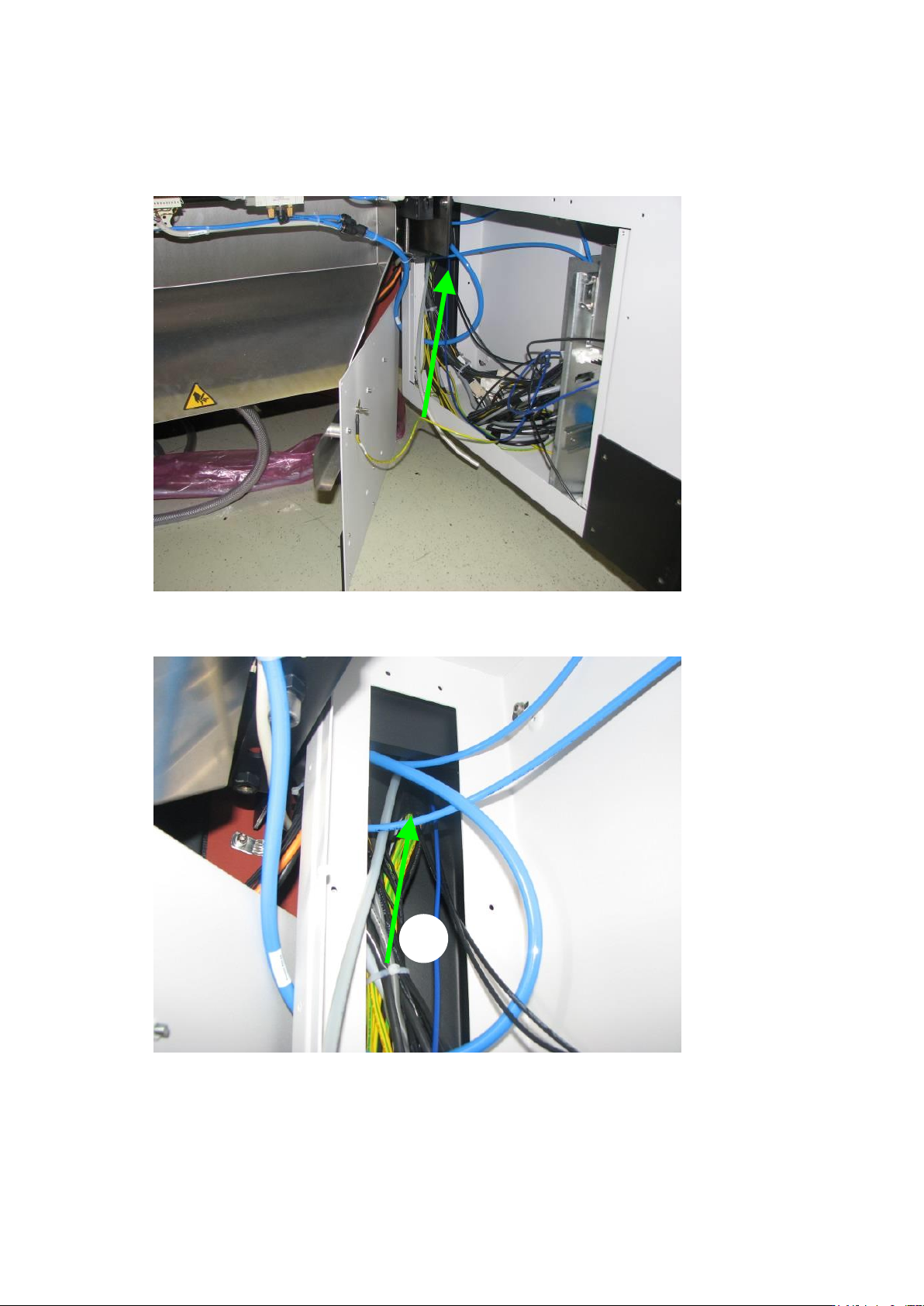

Open the side cover at location 1
Route the cables from location 1 through the machine base to outside of the machine.
(ATTENTION: the longer stripped end has to be at location 2)
1
Installation Guide Ausgabe 08/2014 Edition
15

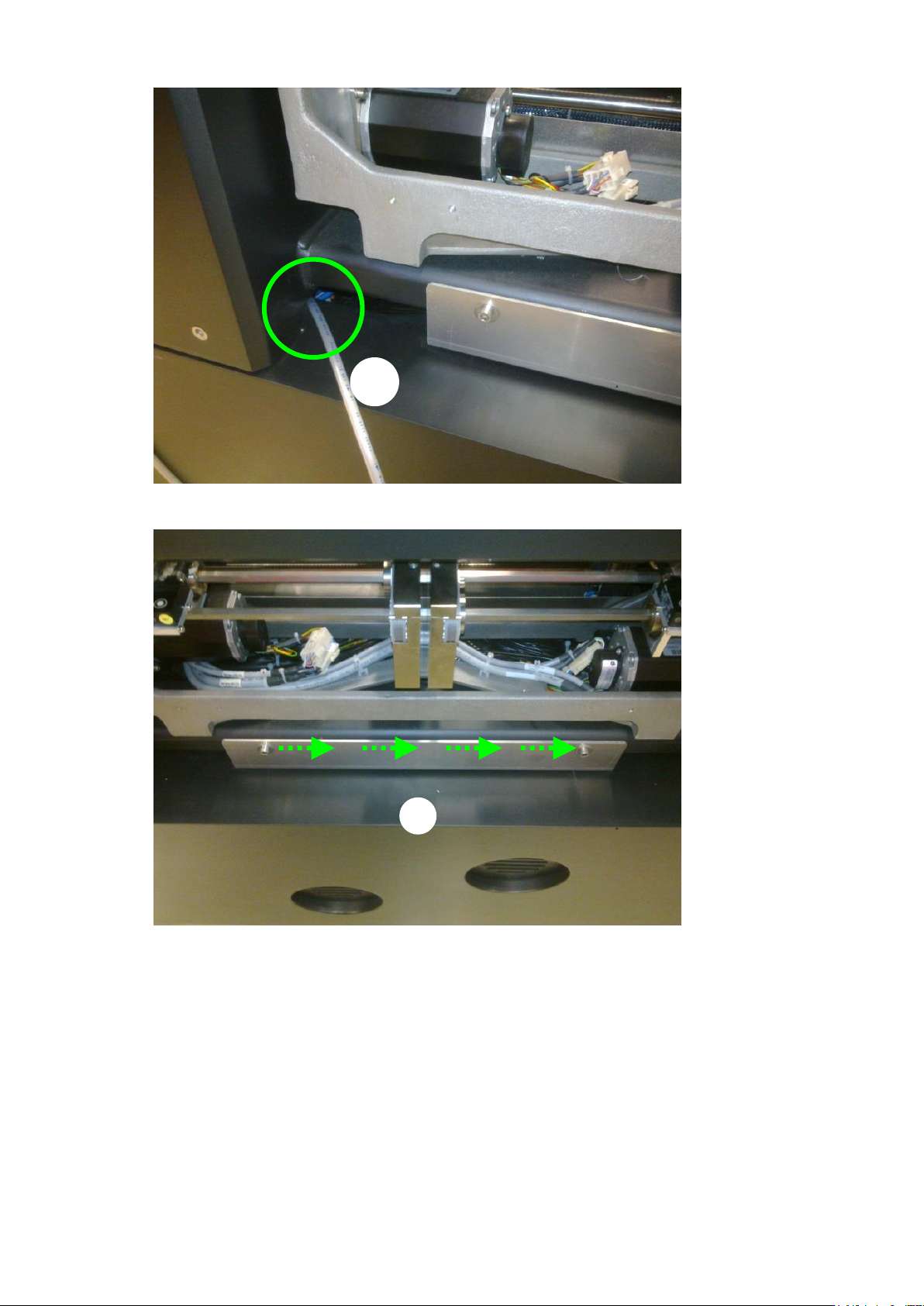

route the cable underneath the transport module
2
3
Installation Guide Ausgabe 08/2014 Edition
16
route the cable from the outside of the machine through the machine base to location 2
open side cover at location 2
5
4
