Installation Guide Ausgabe 08/2014 Edition 17 connect the blue wire 03102822- 01 to Neutral at the cl amping block X 99 shown in the picture route the wire 0 3102818- 01 to the o utside of the switch ing unit
Installation Guide Ausgabe 08/2014 Edition
16

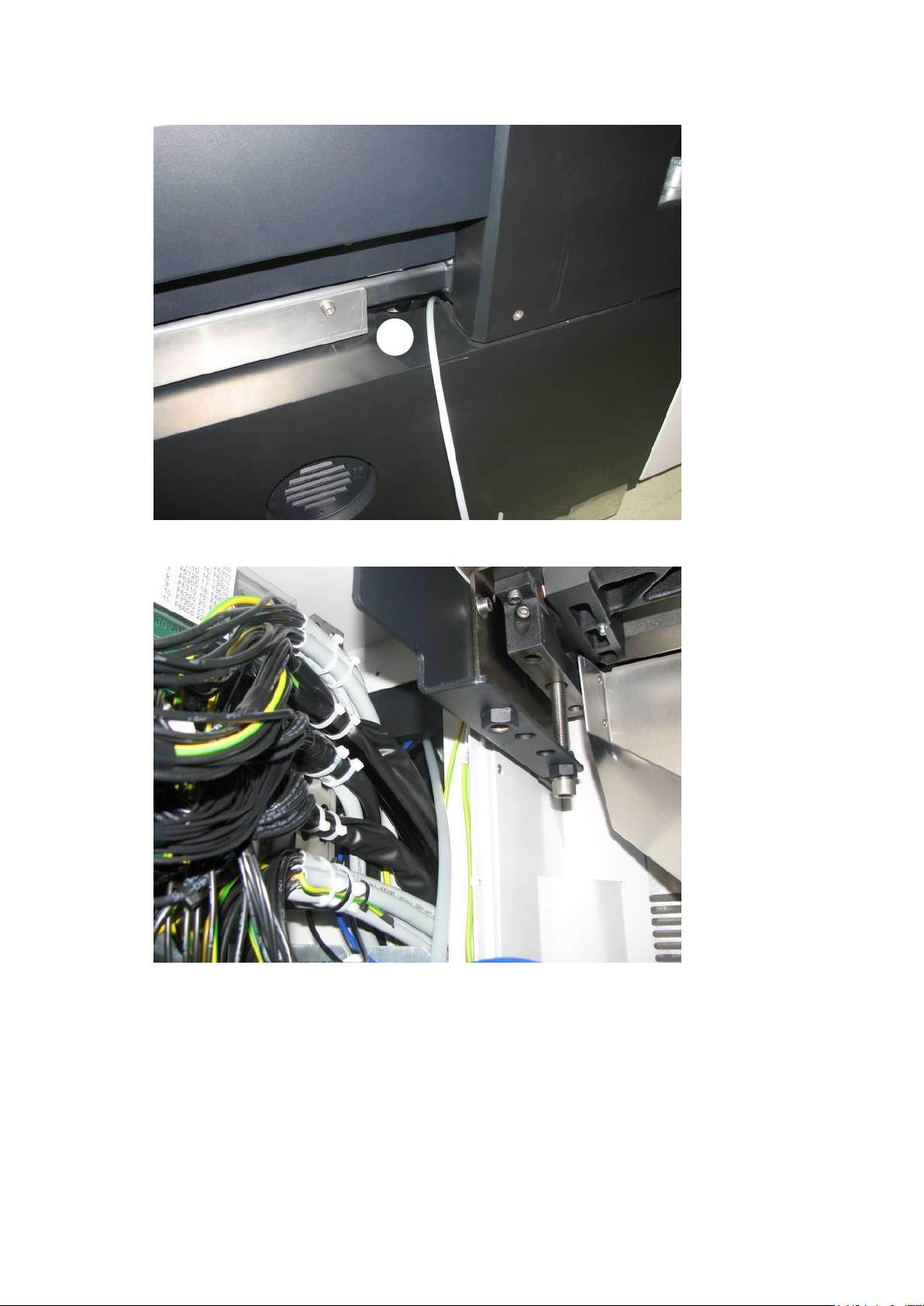

route the cable from the outside of the machine through the machine base to location 2
open side cover at location 2
5
4
Installation Guide Ausgabe 08/2014 Edition
17

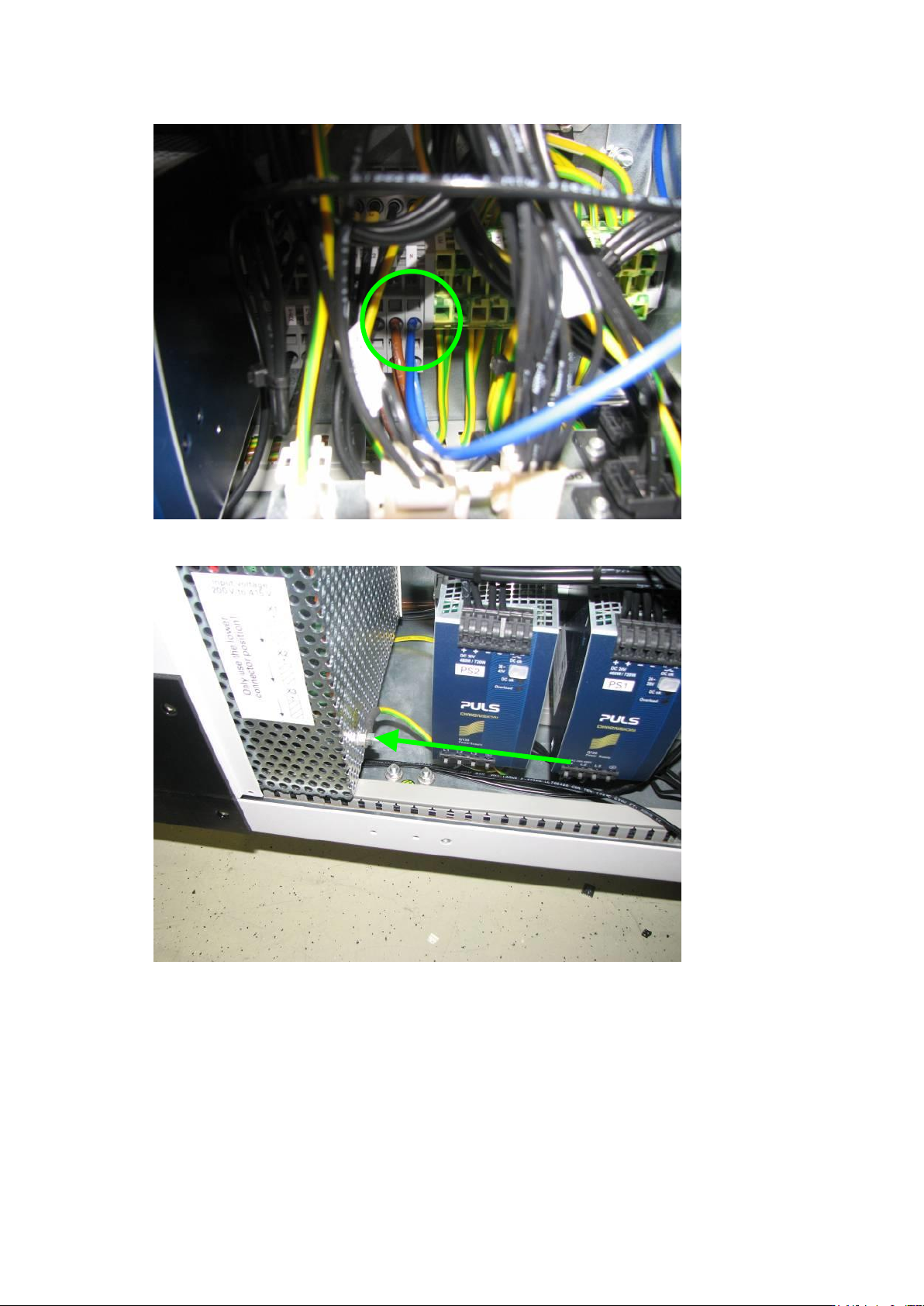

connect the blue wire 03102822-01 to Neutral at the clamping block X99 shown in the picture
route the wire 03102818-01 to the outside of the switching unit
Installation Guide Ausgabe 08/2014 Edition
18

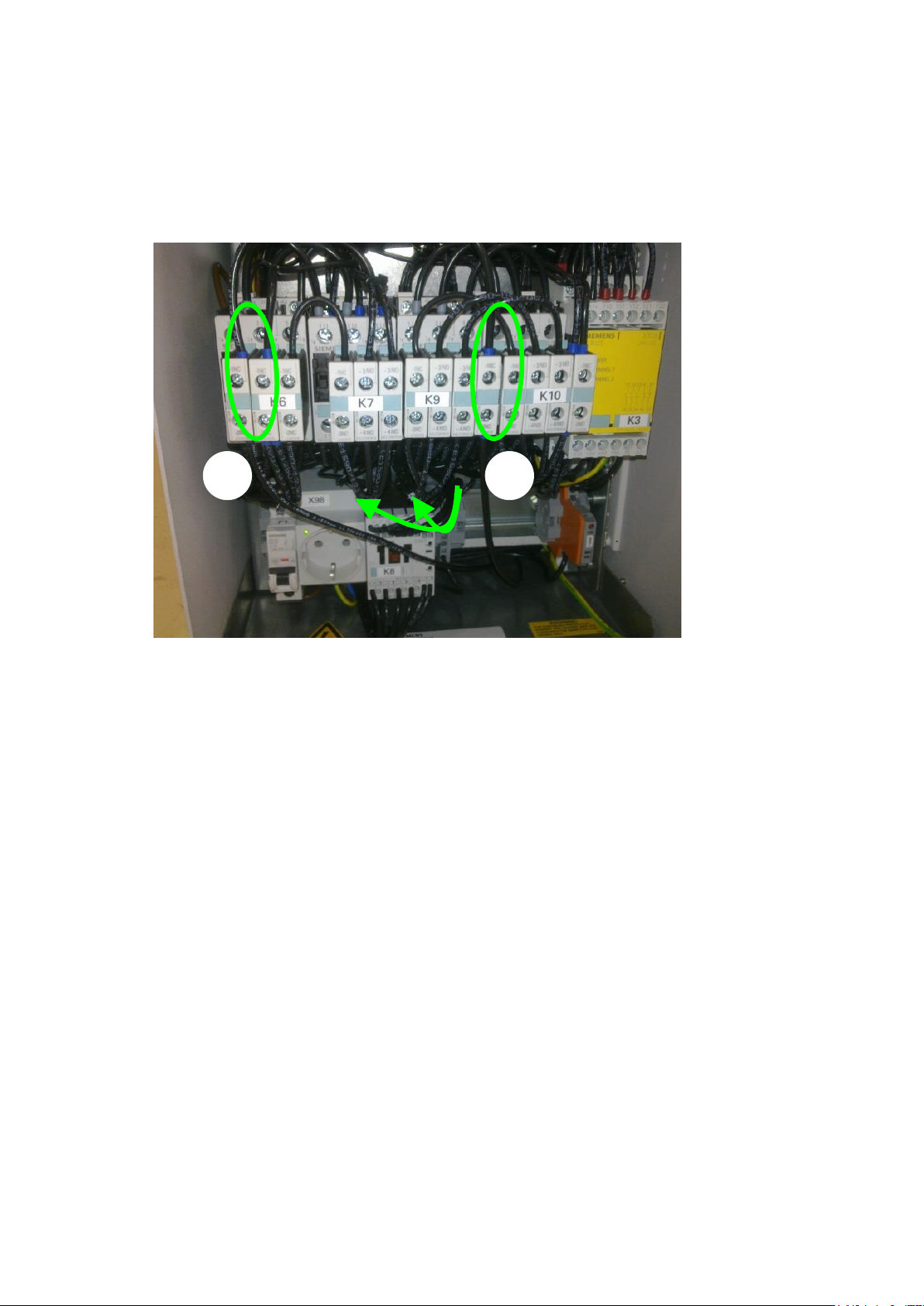

2.5 Auxiliary switch block
plug the auxiliary switches next to K6 and K9
Connect the black wire 03102820-01 to the auxiliary switch at K6 and the wire 2 to the auxiliary
switch at K9.
connect both switches K6 and K9 with cable 03102818-01 (see 1 and 2)
1
2
