Installation Guide Ausgabe 08/2014 Edition 19 3 A ppendix 3.1 Wiring diagram o vervie w
Installation Guide Ausgabe 08/2014 Edition
18
2.5 Auxiliary switch block
plug the auxiliary switches next to K6 and K9
Connect the black wire 03102820-01 to the auxiliary switch at K6 and the wire 2 to the auxiliary
switch at K9.
connect both switches K6 and K9 with cable 03102818-01 (see 1 and 2)
1
2
Installation Guide Ausgabe 08/2014 Edition
19
3 Appendix

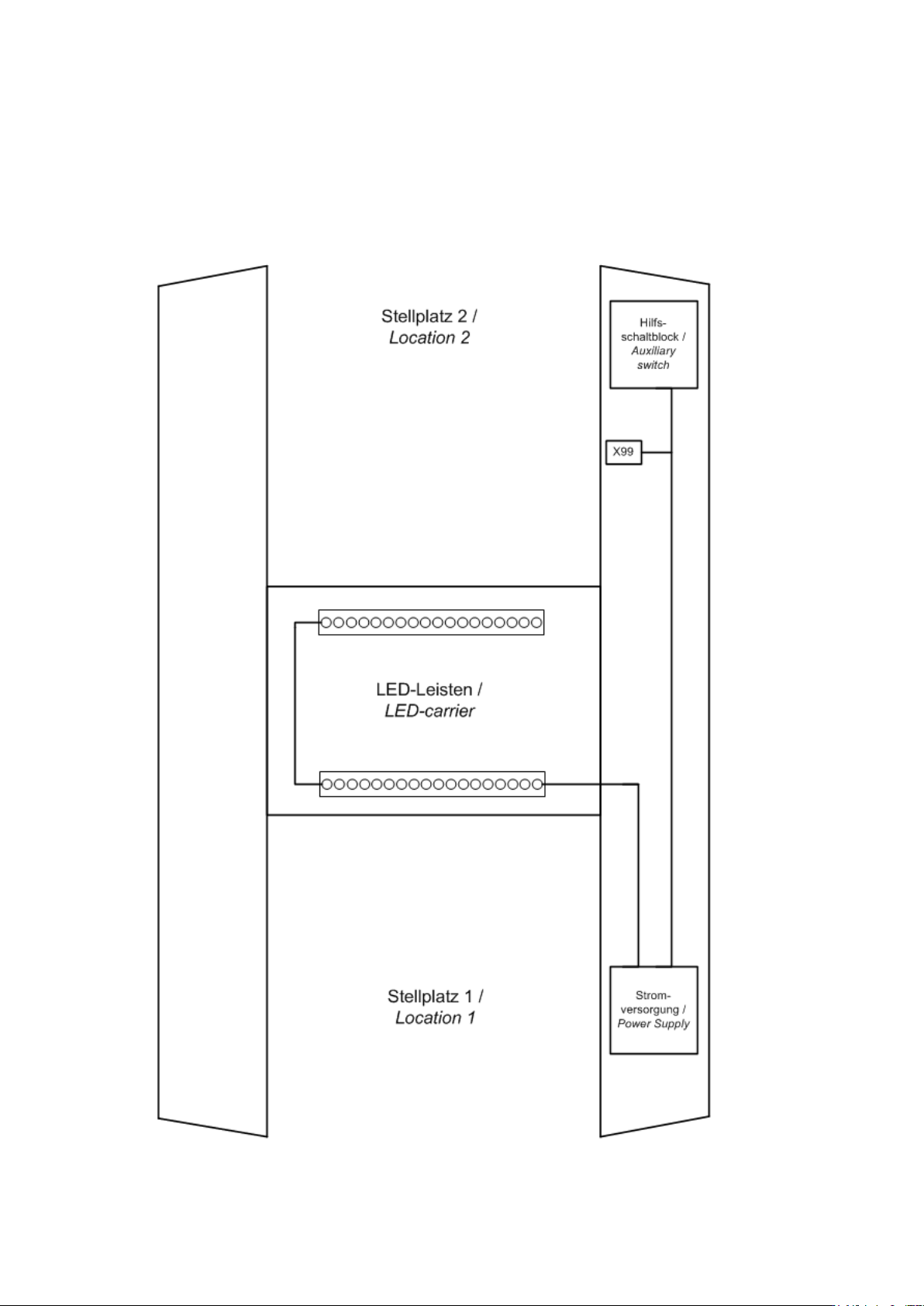

3.1 Wiring diagram overview
Installation Guide Ausgabe 08/2014 Edition
20
3.2 Wiring diagram
