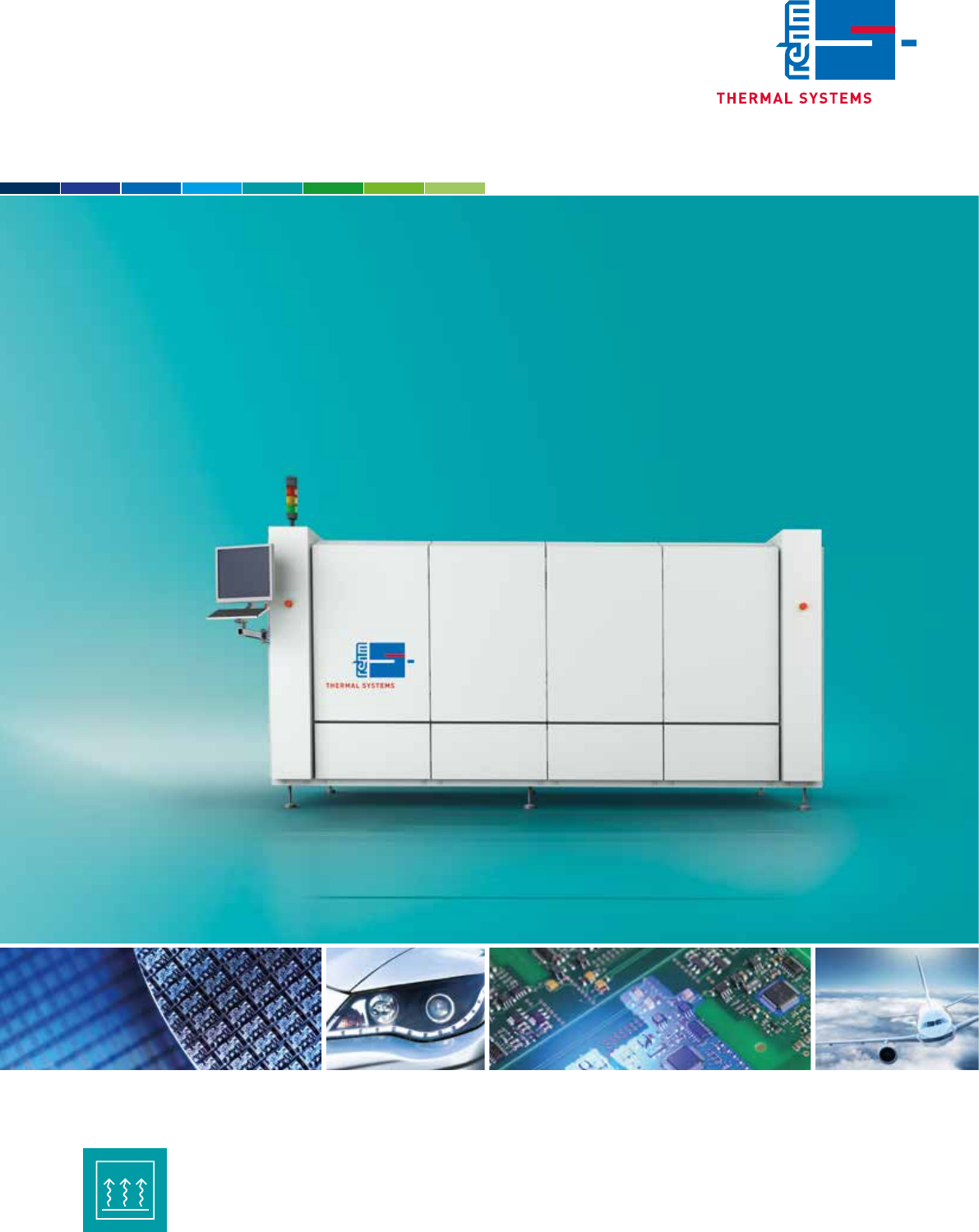

RDS Magazine Dryer Drying | Hardening Inno vativ e drying technology System for tempering power modules in magazines

RDS Magazine Dryer

Drying | Hardening

Innovative drying technology

System for tempering power modules in magazines

Optimal for power modules

and high-temperature applications

ThedecidingcompetitivefactoroftheGermanenergysupplysystemisnolongerjustthe

cost.Innovativeperformance,reliabilityandlikelihoodofbeingacceptedontheglobal

marketarenowmuchmoreimportantfactors.Therefore,electroniccomponentsandthe

suitableoutlettechnologyandconnectiontechnologyhaveakeyfunction.

The rapid grid expansion for renewable energy, which followed the energy transition, presents

manufacturers of power electronic systems with the task of supplying the market with relia-

ble systems. The increasing demands of the energy suppliers and the demand for reliability

and sustainability present many challenges to system development. To achieve these perfor-

mance levels we must now enter into and extend offshore applications.

Rehm offers the new RDS magazine dryer for this area. The energy efcient and sustainable

system was developed as part of the HotAL research project (high temperature-optimised

AL-bonding technology for offshore applications). The goal is to optimise performance

electronics modules through the use of innovative materials and process management for

high-temperature applications. Along with Rehm, Fraunhofer IZM Berlin and the industry

partners Heraeus, SEMIKRON and F & K Delvotec Bondtechnik took part in this project that

was supported by BMBF.

Drying |

Hardening

New techniques for electronic

components in the high-performance area

A new world of drying methods

with the RDS magazine dryer from Rehm

The new RDS magazine dryer from Rehm is the perfect sys-

tem with inert gas operation for tempering power modules.

The system can reach temperatures of up to 300 °C and re-

sidual oxygen values of less than 5,000 ppm O

. It impresses

with its innovative lock system as well as thermal insulation

that enables a stable elevation prole when in process. The

RDS magazine dryer is particularly suitable for the thermal

treatment of semiconductor applications, hybrid const-

ructions and electronic components that are transported

in magazines. Examples of these would include electronic

components in wind turbines, electric cars or inverters in the

solar energy sector.

Temperatures up to 300 °C possible

Residual oxygen values <5000 ppm O

possible

 Stableelevationprolethroughlocksystemandgoodthermalinsulation

 Steadyheatingofcomponentsatthelowest∆T

 High-performancecoolingzoneswithtemperaturesof20°C
