MEMO
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 0916D20J P_C_B_MOUNT 1 1091603T00-001
102 225F0656 PIPE FITTINGS 1 1091603T00-002
103 225F0566 PIPE FITTINGS 1 1091603T00-003
104 09163T01 ASSY_VALVE 1 1091603T00-004
105 225B0573 AIR LINE EQPT 1 1091603T00-005
106 0916DM17 BRACKET 1 1091603T00-006
107 0916DM18 BOX 1 1091603T00-007
108 221DA051 SEMS_PANHEADSCR 18 1091603T00-008
109 221DA057 MACHINE_SCREW 4 1091603T00-009
110 221A0245 BOLT_HEX-SCT 2 1091603T00-010
113 221AA021 ROHS_HEX-SCT 1 1091603T00-013
114 221HA001 WASHER 2 1091603T00-014
116 221HA004 WASHER 1 1091603T00-016
117 221HA101 WASHER 2 1091603T00-017
119 221HA104 WASHER 1 1091603T00-019
120 221DA056 MACHINE SCREW 4 1091603T00-020
131 4W204782 CORD 1 1091603T00-101
132 4W204987 CORD 1 1091603T00-102
133 0916D50B CORD 1 1091603T00-103
134 4W204984 CORD 1 1091603T00-104
135 4W204985 CORD 1 1091603T00-105
136 4W204786 CORD 1 1091603T00-106
139 23N30632 WIRING 12 1091603T00-109
141 0916D209 ACCESSORY_WRING 25 1091603T00-111
142 0916D20D ACCESSORY_WRING 1 1091603T00-112
151 0916D20A TUBE D4 1 3091603Q03-001
152 0916D20Q TUBE D8 1 3091603Q03-002
1010-001
Fig. A1-2
Fig. A1
GS-HS100
MEMO
Fig. A1-3
ベース部
Base Section
1010-001
224
201
226
208
204
219
220
217
218
220
217
218
229
220
205
227
228
211
222
223
230
222
223
221
217
218
216
203
212
210
202
215
213
214
206
209
225

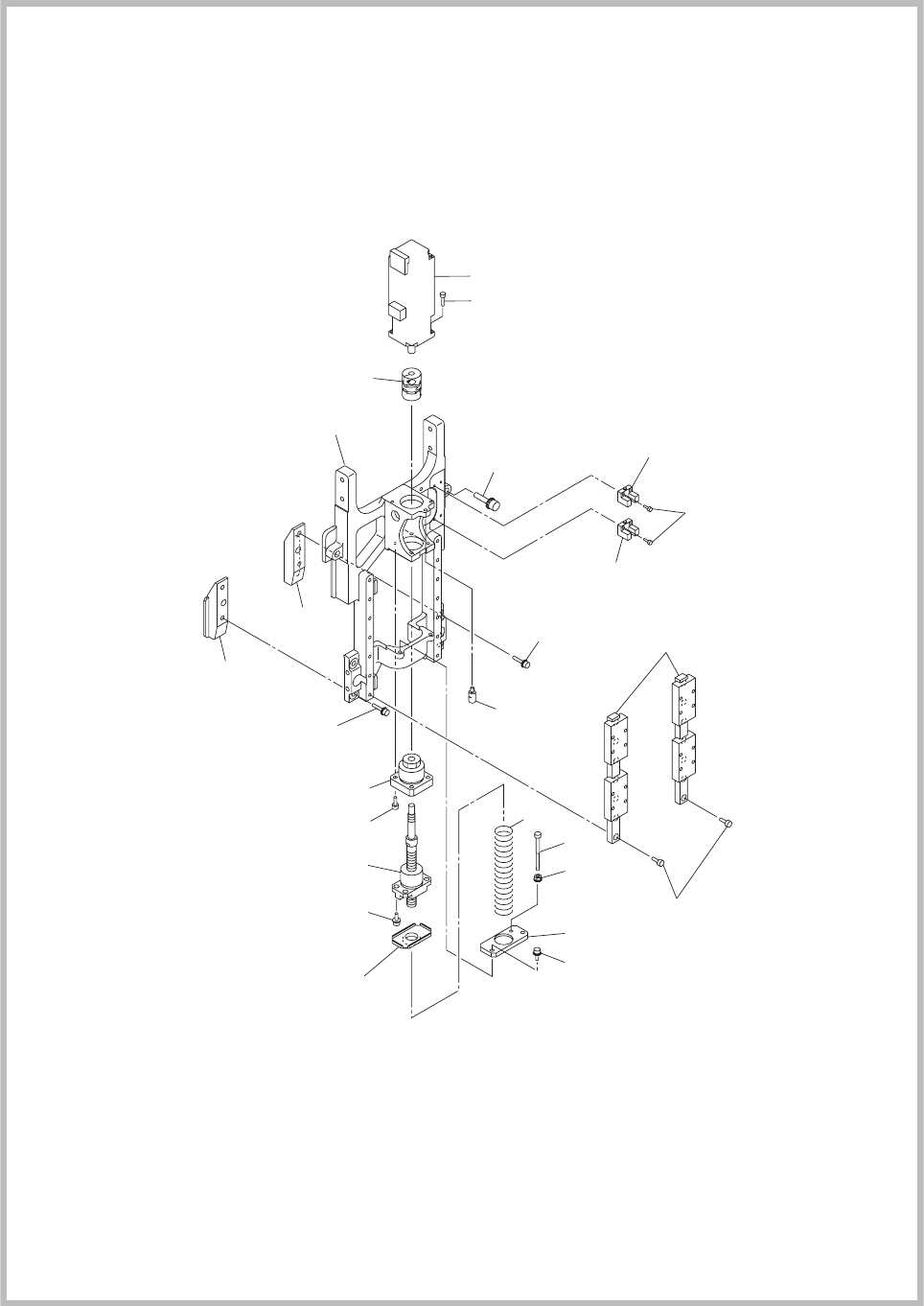

Fig. A1 MR12
ヘッド
MR12 HEAD
