MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
8.18 Technical Reference Manual Chapter Issue 4, Jun 18
M36SK01 (Camera Y Encoder)
M36SK02 (Camera Y Hall Sensors)
M36SK03 (Camera Y Motor Power)
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4 Chassis 9 ! CHA
5CHA
Pin No. Signal Pin No. Signal
1+5.5V 9N/C
20V 10N/C
3Hall U - 11N/C
4Hall V + 12N/C
5Hall U + 13N/C
6Hall W - 14N/C
7Hall V - 15N/C
8Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2 MTR Phase V
9 Way D Type Socket
1
6
15 Way D Type Socket
9
1
1
3
3 Way Power D Type
Socket
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 4, Jun 18 Technical Reference Manual 8.19

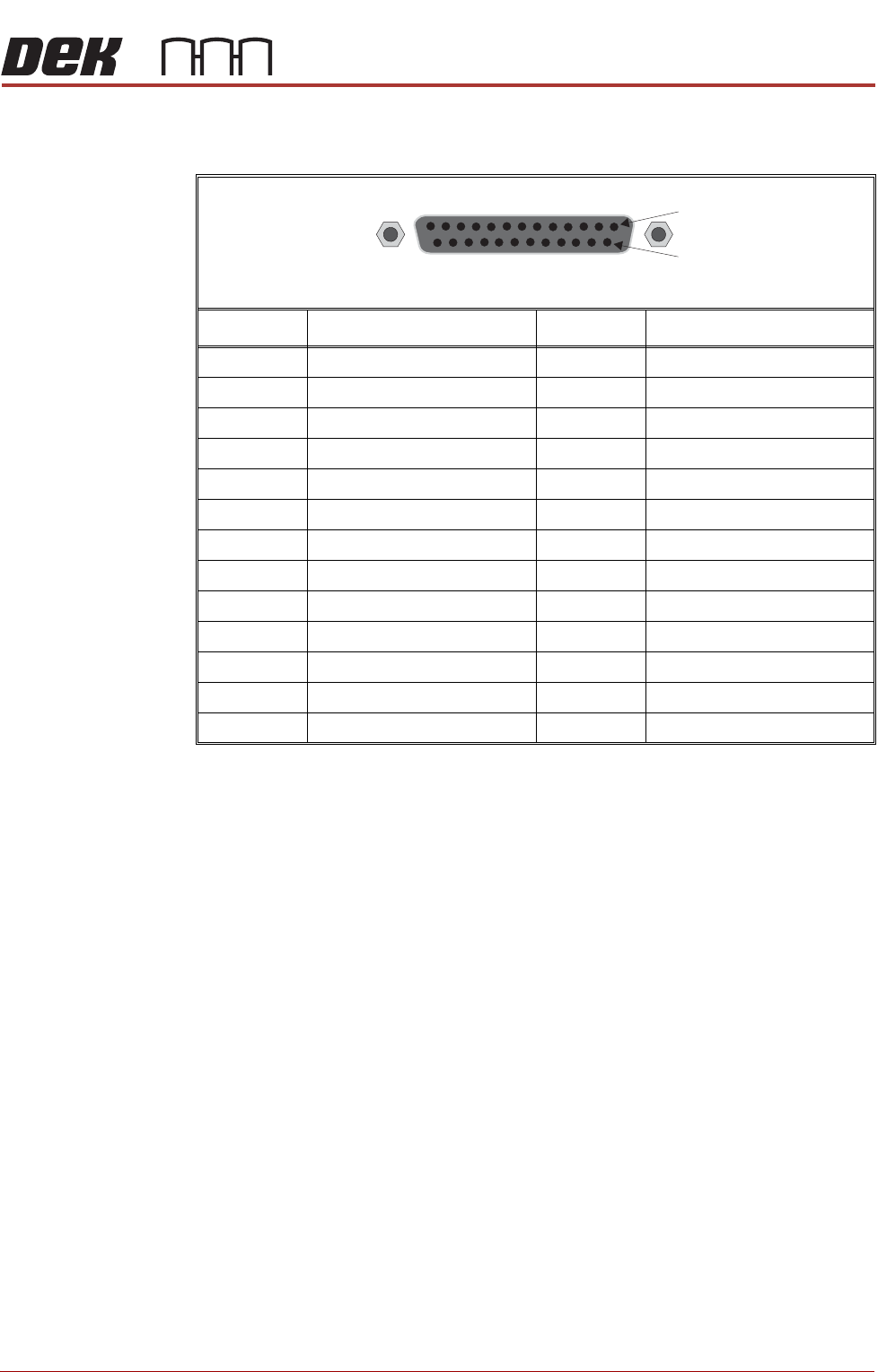

M36SK04 (FMI)
Pin No. Signal Pin No. Signal
1N/C 14N/C
2 N/C 15 Send Upline
3N/C 16N/C
4N/C 17N/C
5 Board Pass I/P 18 Upline Ready
6 Send Downline 19 N/C
70V 20+24V US
8N/C 21N/C
9 Downline Ready 22 +12V
10 N/C 23 +24V SW
11 N/C 24 N/C
12 N/C 25 N/C
13 Board Pass O/P
25 Way D Type Socket
14
1
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
8.20 Technical Reference Manual Chapter Issue 4, Jun 18

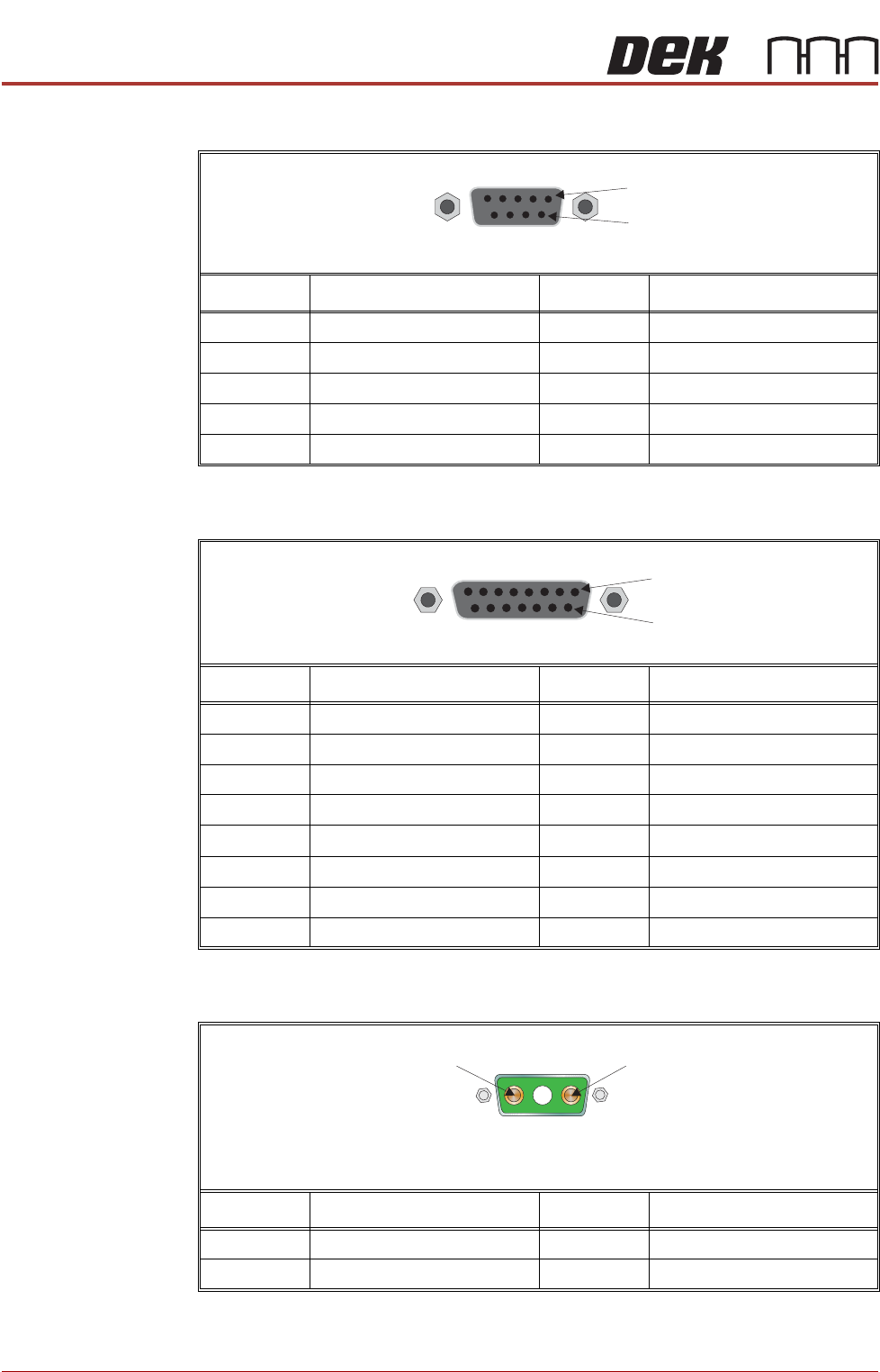

M36SK05 (Camera X Encoder)
M36SK06 (Camera X Hall Sensors)
M36SK07 (Camera X Motor Power)
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4 Chassis 9 ! CHA
5CHA
Pin No. Signal Pin No. Signal
1+5.5V 9N/C
20V 10N/C
3Hall U - 11N/C
4Hall V + 12N/C
5Hall U + 13N/C
6Hall W - 14N/C
7Hall V - 15N/C
8Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2 MTR Phase V
9 Way D Type Socket
1
6
15 Way D Type Socket
9
1
1
3
3 Way Power D Type
Socket
