MACHINE CONTROL M36 MACHINE CONTROL E N CLOSURE 8.2 4 Tech ni cal Ref ere nce Ma nual Cha pter I ssue 4, Jun 18 M3 6SK1 4 (Saf ety I/O ) M3 6SK1 5 (Ca mera X Ho me) M3 6SK1 6 (Ca mera T ri gge r) Pin No. Signal Pin No. S…
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 4, Jun 18 Technical Reference Manual 8.23

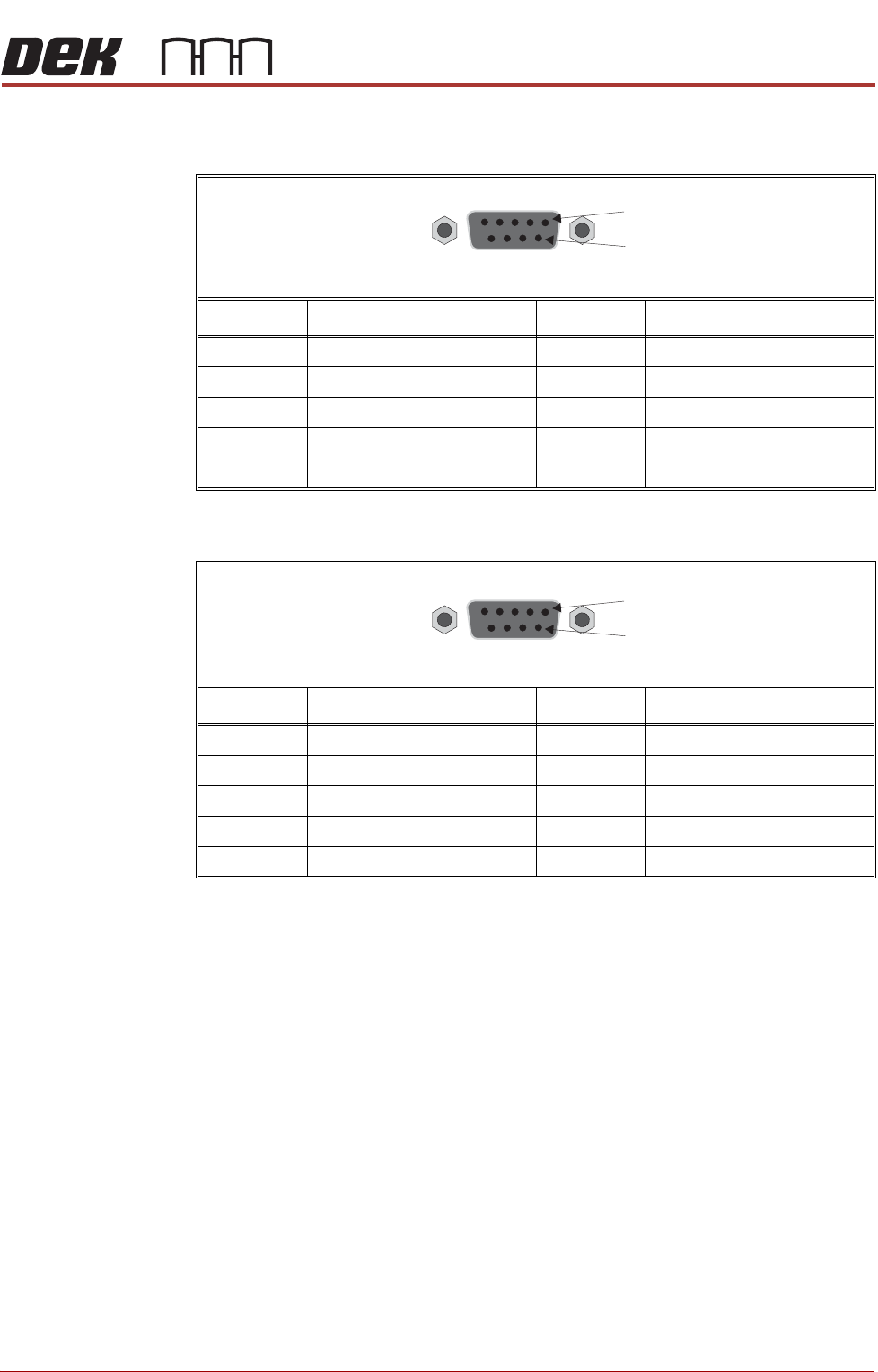

M36SK12 (Squeegees Home)
M36SK13 (Fans)
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 Front Squeegee Home 7 N/C
30V 8 N/C
4 +12V 9 N/C
5 Rear Squeegee Home
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 N/C 6 0V Fan 3
2N/C 7+24V Fan 1
3 0V Fan 1 8 +24V Fan 2
4N/C 9+24V Fan 3
50V Fan 2
9 Way D Type Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
8.24 Technical Reference Manual Chapter Issue 4, Jun 18

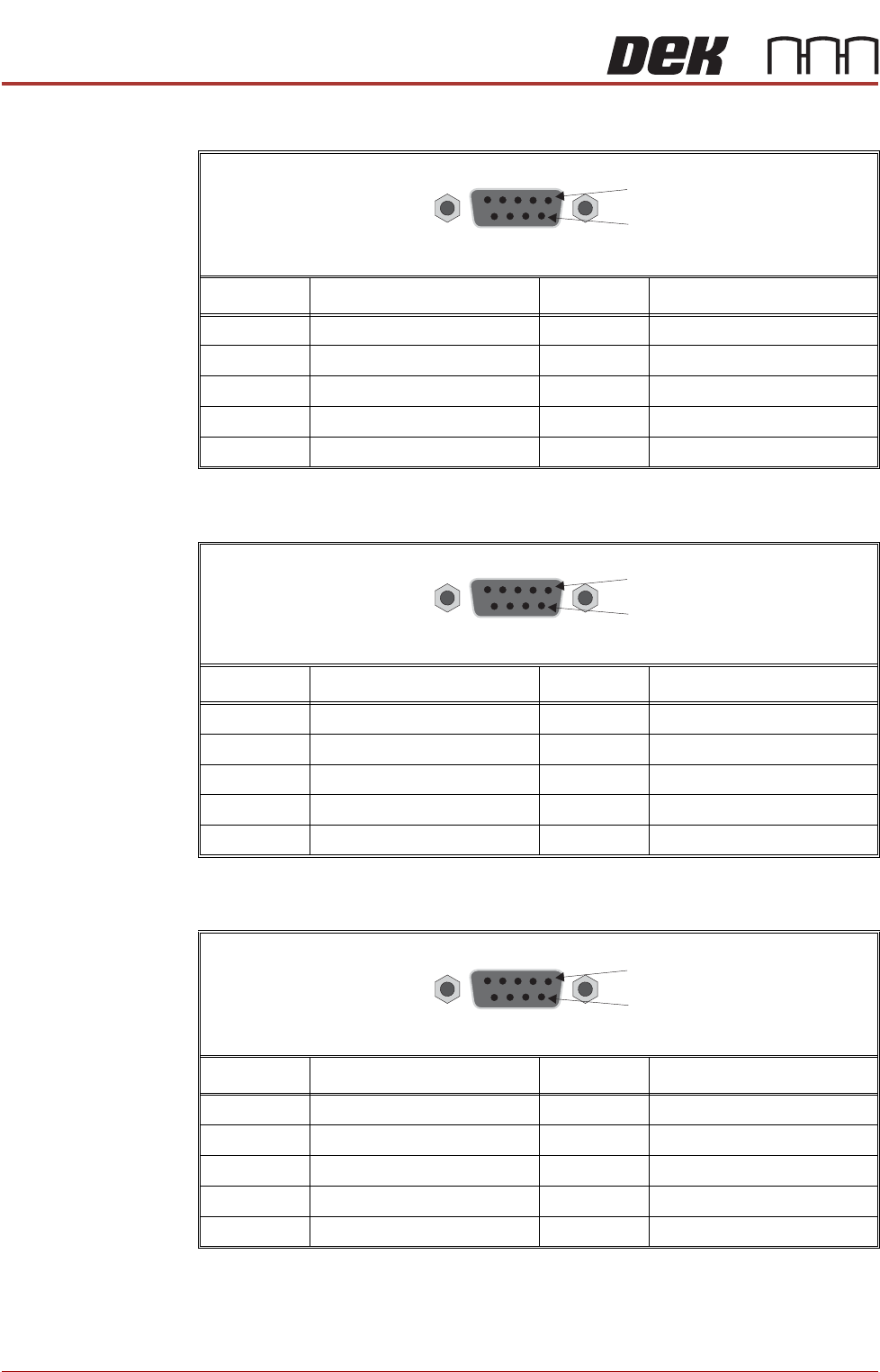

M36SK14 (Safety I/O)
M36SK15 (Camera X Home)
M36SK16 (Camera Trigger)
Pin No. Signal Pin No. Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E-Stop Loop Supply
3 Jog Right 8 0V
4N/C 9N/C
5 Power ‘On’ Monitor
Pin No. Signal Pin No. Signal
1 +12V 6 N/C
2 Camera X Home 7 N/C
30V 8N/C
4N/C 9N/C
5N/C
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 Trigger 7 24V US
30V 8N/C
4N/C 9N/C
5N/C
9 Way D Type Socket
1
6
9 Way D Type Socket
1
6
9 Way D Type Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 4, Jun 18 Technical Reference Manual 8.25

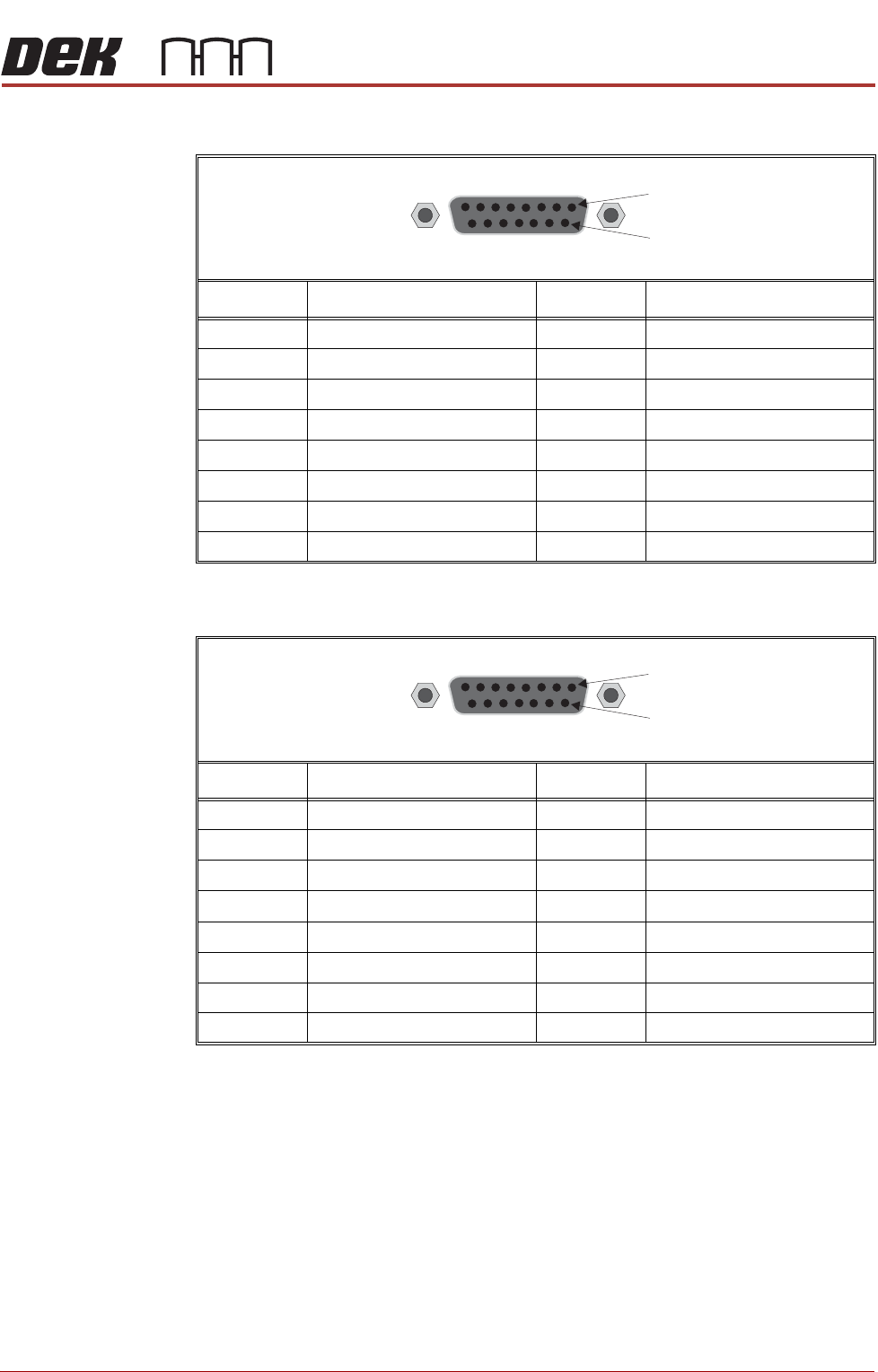

M36SK17 (Rails Left)
M36SK18 (Rails Right)
Pin No. Signal Pin No. Signal
1 +12V 9 0V
2 Board At Left 10 +12V
30V 11N/C
4 +12V 12 0V
5 Board At Right 13 N/C
60V 14N/C
7 +12V 15 N/C
8 Rail Lifted Left
Pin No. Signal Pin No. Signal
1 +12V 9 Belt Motor #1 0V
2 Rail Lifted Right 10 N/C
3 0V 11 Belt Motor #4 Enable
4 +12V 12 N/C
5 Belt Motor #1 Enable 13 Belt Motor #4 24V SW
6 0V 14 Belt Motor #4 Direction
7 Belt Motor #1 24V SW 15 Belt Motor #4 0V
8 Belt Motor #1 Direction
15 Way D Type Socket
9
1
15 Way D Type Socket
9
1
