MACHINE CONTROL CAN BUS 8.3 8 Tech ni cal Ref ere nce Ma nual Cha pter I ssue 4, Jun 18 I/O Node 3 (Print Carriage I /O ) Figure 8 - 1 1 I/ O Node Boa rd 3 (Conne ctor Side) Connector Descri ption I/O N3PL1 Power Inpu t …
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.37
N2SK10
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Sensor
1
3 Way Trident Connector
MACHINE CONTROL
CAN BUS
8.38 Technical Reference Manual Chapter Issue 4, Jun 18
I/O Node 3 (Print Carriage I/O)

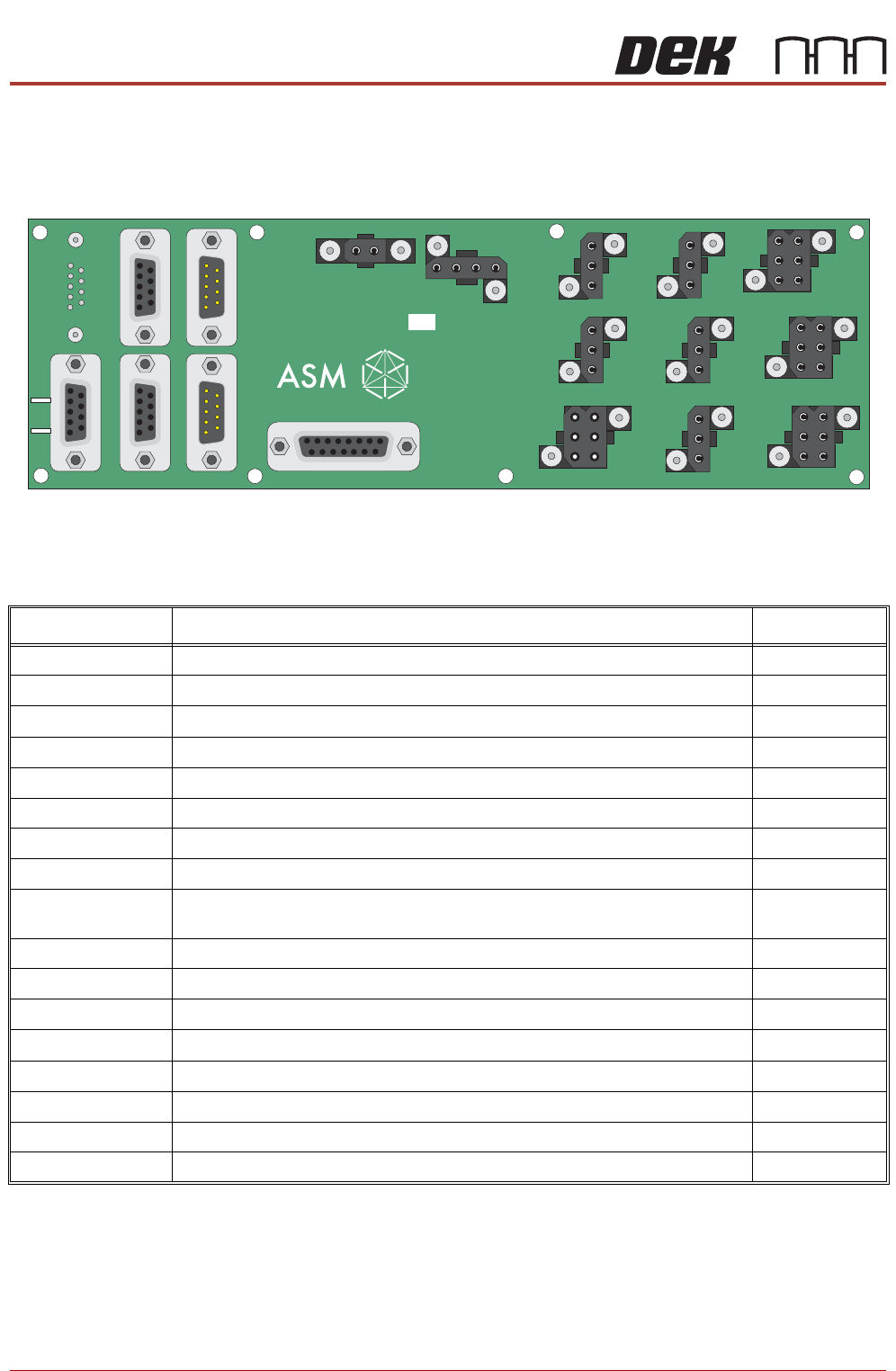

Figure 8-11 I/O Node Board 3 (Connector Side)
Connector Description I/O
N3PL1 Power Input
N3PL2 CAN Signal In Input
N3PL3 CAN Signal Out Output
N3SK1 Spare Output Output
N3SK4 Paste Height Laser - Paste Roll Low Input/Output
N3SK5 Screen Position Input
N3SK6 Spare Output Output
N3SK7 Screen Cylinder Extended & Retracted Sensors Input
N3SK8 ProFlow Paste Pressure - Paste Dispense Solenoid - Paste Cartridge Tilt - Drip
Tray Solenoid - Stencil Actuator
Output
N3SK9 Drip Tray Retracted Sensor Input
N3SK10 Cartridge Horizontal - Cartridge Vertical Input
N3SK11 Cartridge Empty/Paste Level Input
N3SK12 Spare Input Input
N3SK13 ProFlow Pressure Regulator Input/Output
N3SK14 Ball Escape (Ball Bumping only) Input
N3SK15 Temperature/Humidity (External Option) Input
N3SK17 ProFlow Input
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.39

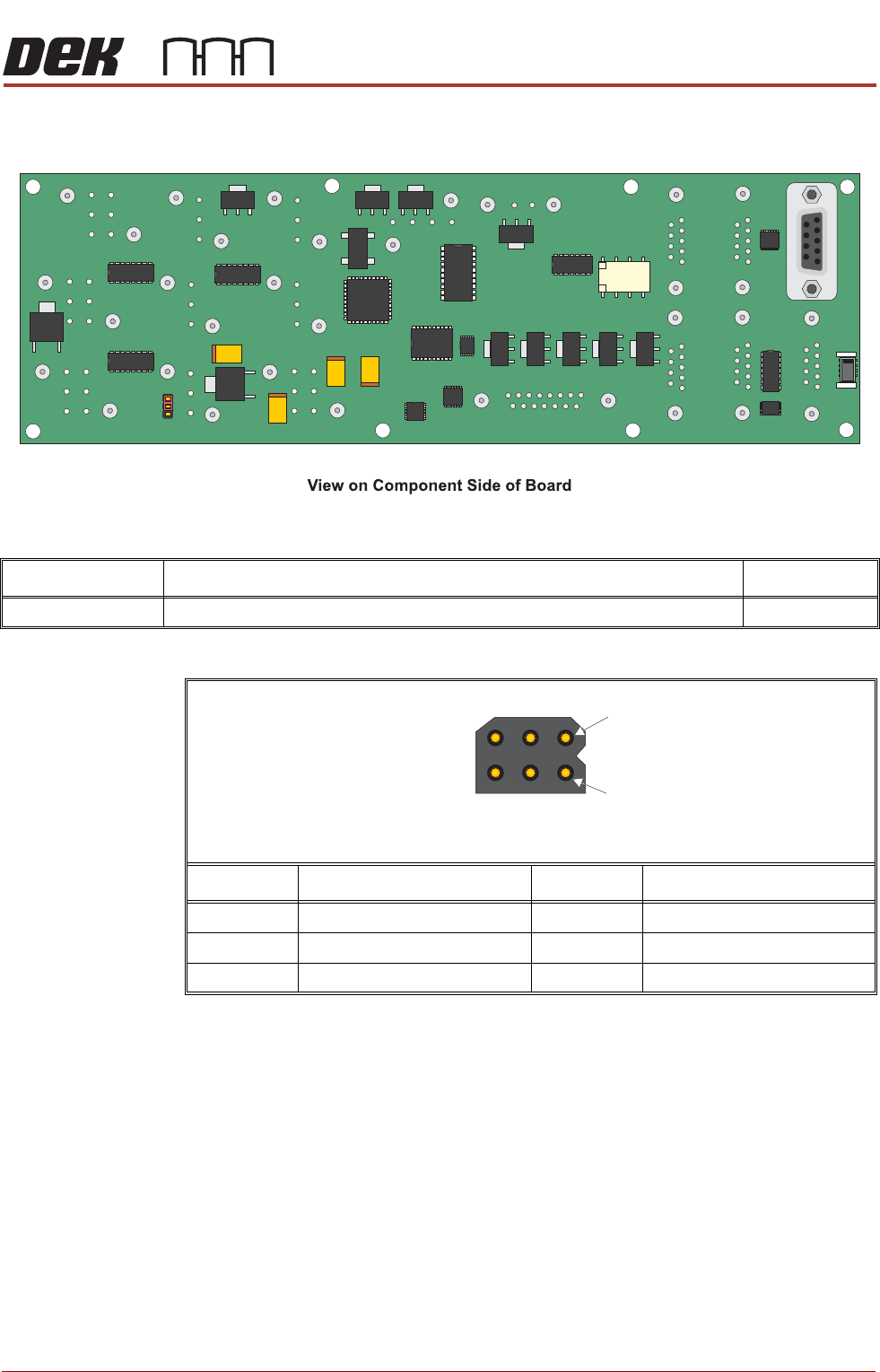

Figure 8-12 I/O Node Board 3 (Component Side)
N3PL1
Connector Description I/O
N3SK16 Squeegee Mechanism Input
N3SK16
3
Pin No. Signal Pin No. Signal
1 24V US 4 0V
2 0V 5 12V
3 24V SW 6 0V
4
1
6 Way Trident Connector
(with pins)
