MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.43
N3SK10
N3SK11
N3SK12
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cartridge Vertical 5 Cartridge Horizontal
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 30V
2 Cartridge Empty/Paste Level
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 30V
2 Spare Input
1
3 Way Trident Connector
MACHINE CONTROL
CAN BUS
8.44 Technical Reference Manual Chapter Issue 4, Jun 18

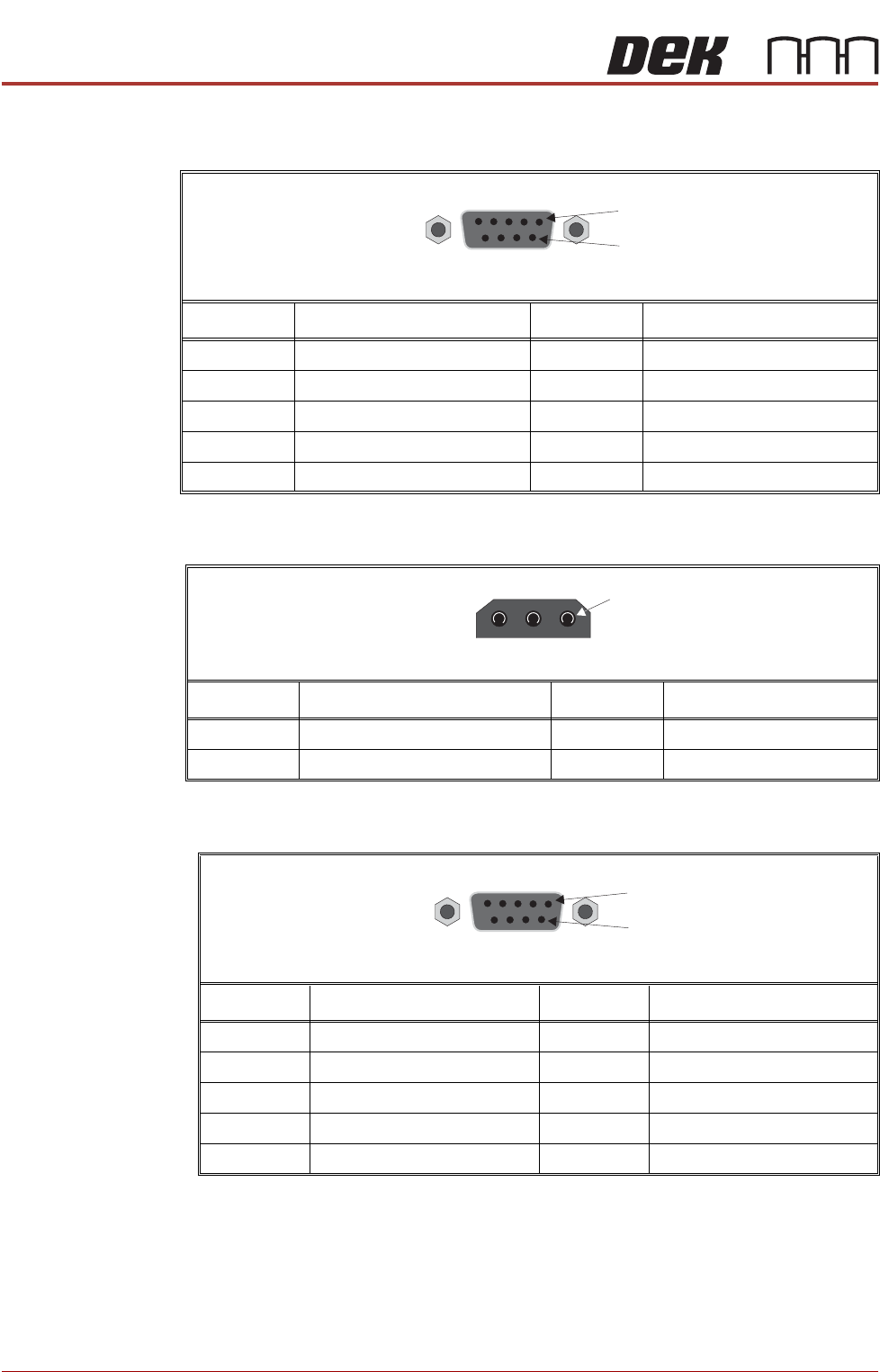

N3SK13
N3SK14
N3SK15
Pin No. Signal Pin No. Signal
1 24V US 6 ProFlow Pressure Demand
20V 724V US
3 Spare Output 8 0V
4 12V 9 ProFlow Pressure Monitor
50V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1+12V 30V
2 Ball Escape (Ball Bumping only)
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1 I DAT 6 5.5V
20V 7I CLOCK
3DAT_INT 8IO_B
4 VPP 9 0V
5IO_C
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.45

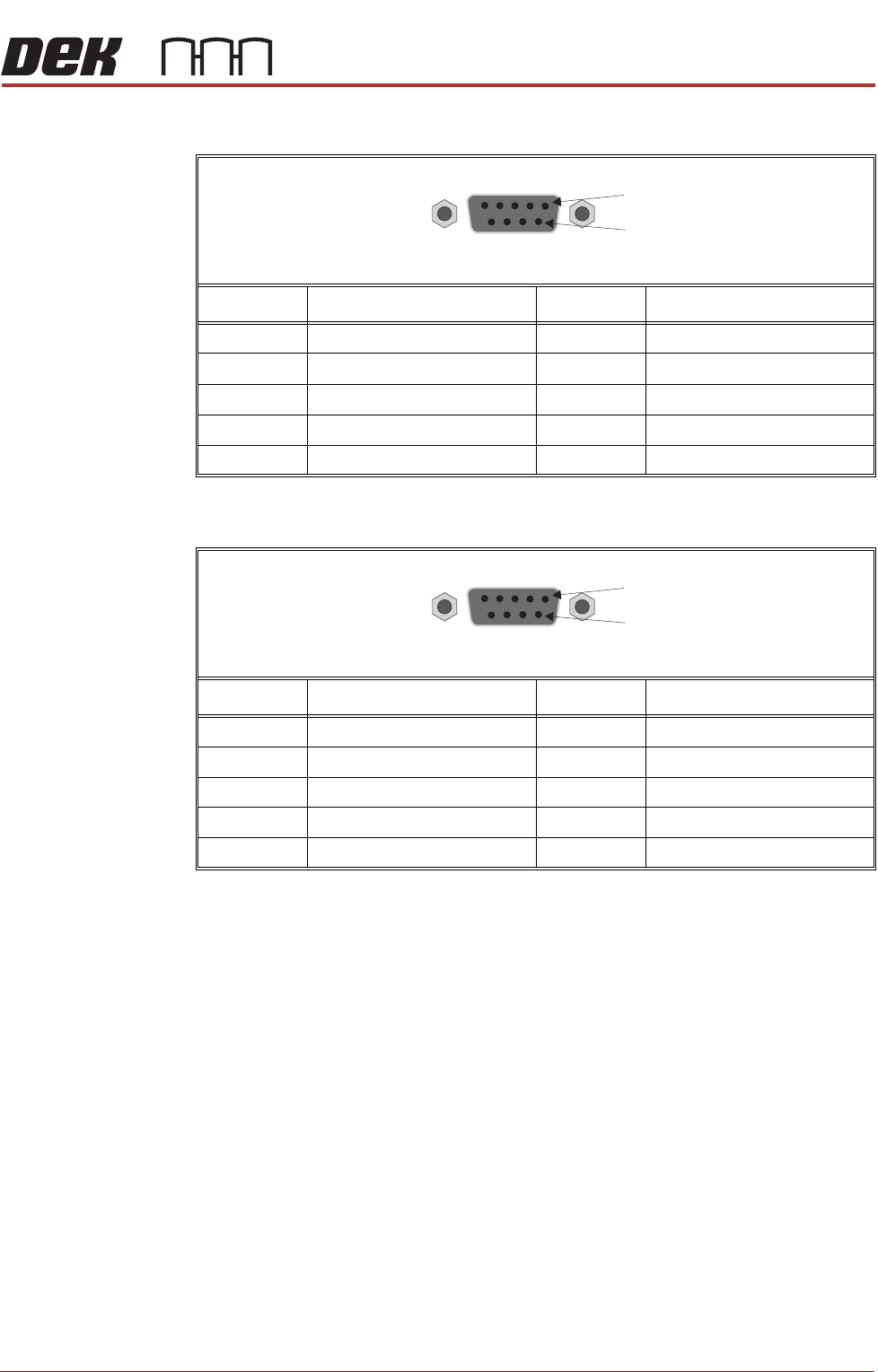

N3SK16
N3SK17
Pin No. Signal Pin No. Signal
10V 6N/C
2 N/C 7 Bridge O/P +
3 N/C 8 Bridge O/P -
4N/C 9N/C
5+4.1V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 0V 7 ProFlow Cassette Low
3 Paste Level 8 0V
4 +12V 9 +12V
5 ProFlow Fitted
9 Way D Type Socket
1
6
