MACHINE CO NTROL CAN BUS Ch apte r Issue 4, Jun 18 Tech nical Ref erenc e Ma nual 8.45 N3SK16 N3SK17 Pin No. Signal Pin No. Si gna l 10 V 6N / C 2 N/C 7 Brid ge O /P + 3 N/C 8 Brid ge O /P - 4N / C 9 N / C 5+ 4 . 1 V 9 W…
MACHINE CONTROL
CAN BUS
8.44 Technical Reference Manual Chapter Issue 4, Jun 18
N3SK13
N3SK14
N3SK15
Pin No. Signal Pin No. Signal
1 24V US 6 ProFlow Pressure Demand
20V 724V US
3 Spare Output 8 0V
4 12V 9 ProFlow Pressure Monitor
50V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1+12V 30V
2 Ball Escape (Ball Bumping only)
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1 I DAT 6 5.5V
20V 7I CLOCK
3DAT_INT 8IO_B
4 VPP 9 0V
5IO_C
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.45
N3SK16
N3SK17
Pin No. Signal Pin No. Signal
10V 6N/C
2 N/C 7 Bridge O/P +
3 N/C 8 Bridge O/P -
4N/C 9N/C
5+4.1V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 0V 7 ProFlow Cassette Low
3 Paste Level 8 0V
4 +12V 9 +12V
5 ProFlow Fitted
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
8.46 Technical Reference Manual Chapter Issue 4, Jun 18

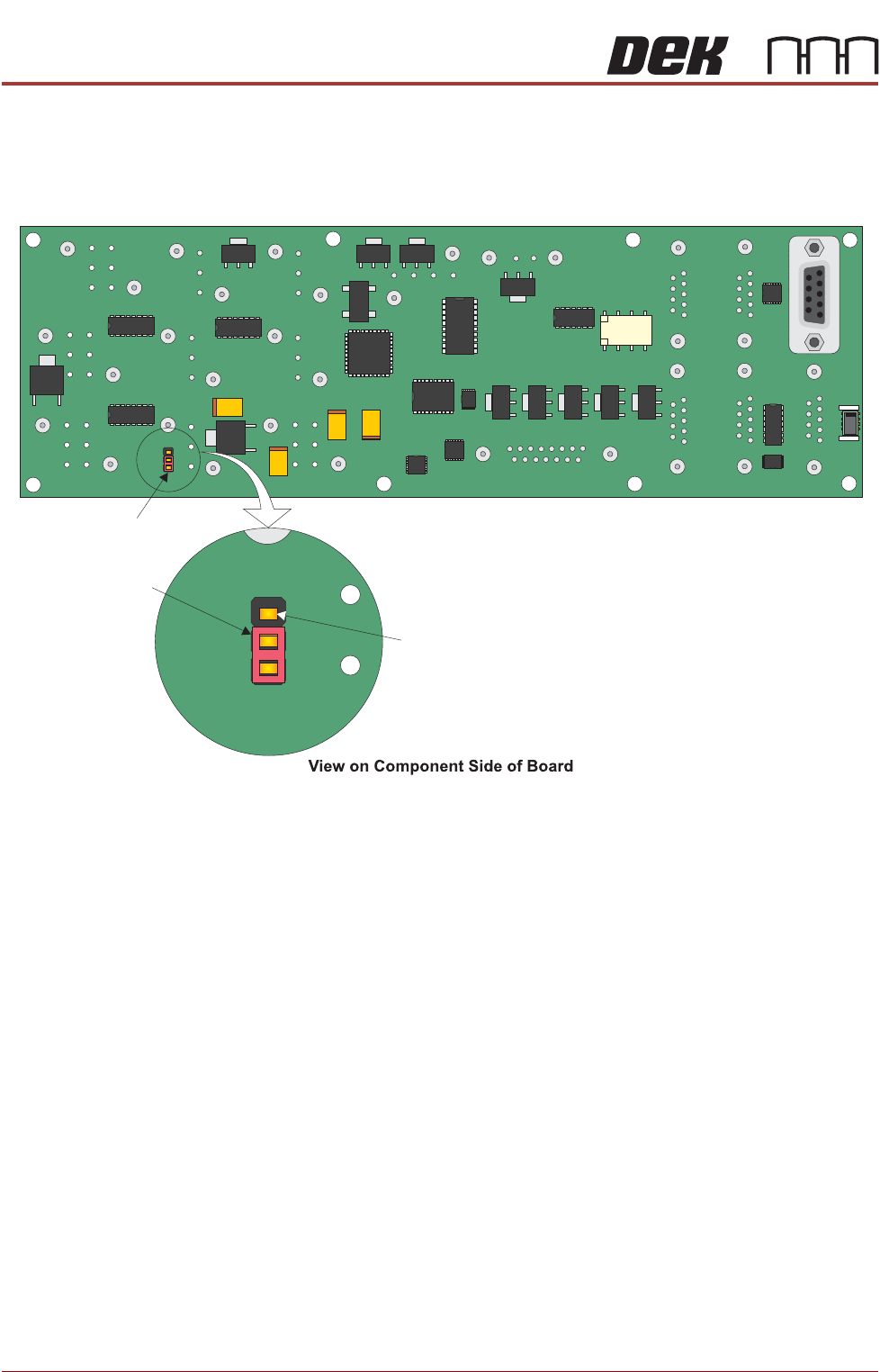

Link (LK1) The link LK1 on the component side of I/O node board 3 must be set so that
the jumper is shorting out Pins 2 & 3.
3
N3SK16
Link (LK1)
3
Jumper
Pin 1
