MACHINE CONTROL
CAN BUS
8.48 Technical Reference Manual Chapter Issue 4, Jun 18
N4PL1
N4PL2
N4PL3
Pin No. Signal Pin No. Signal
1 24V US 4 0V
20V 512V
3 24V SW 6 0V
4
1
6 Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2 CAN_L 7 CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2 CAN_L 7 CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.49

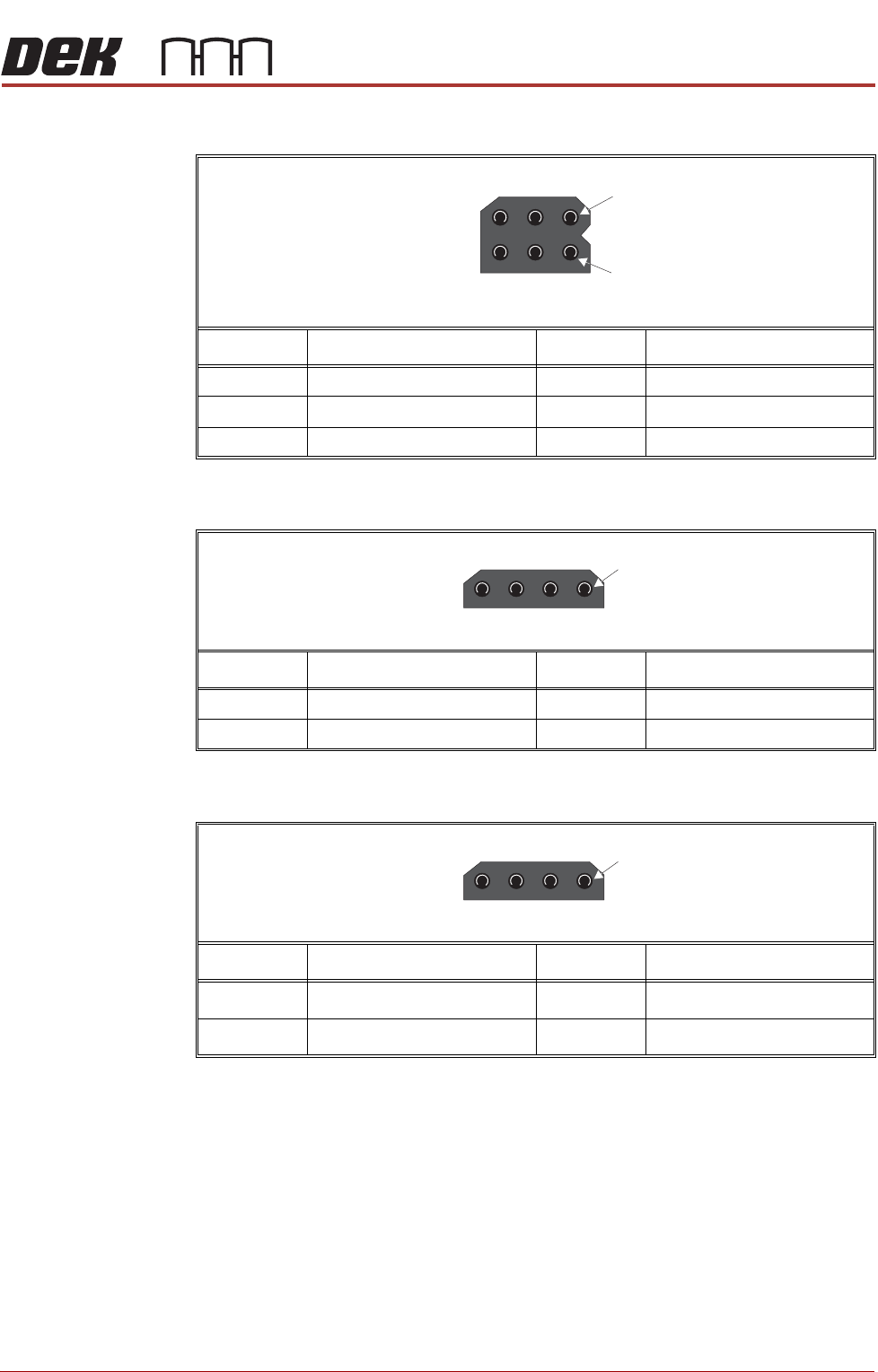

N4SK1
N4SK2
N4SK3
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Solvent Low Sensor 5 Paper Low/Paper Usage
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Home Clamps 3 Cleaner Home Clamps
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Solvent Pinch Valve
3
Paper Feed Motor
20V
4
0V
1
4 Way Trident Connector
MACHINE CONTROL
CAN BUS
8.50 Technical Reference Manual Chapter Issue 4, Jun 18
N4SK4
N4SK5
N4SK6
N4SK7
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Home Right 5 Cleaner Home Left
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Solvent Pump (DUI) 3 Paper Feed Motor
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Vacuum Power 2 0V
2 Way Trident Connector
1
Pin No. Signal Pin No. Signal
1+12V 30V
2 Cleaner Vacuum Sense
1
3 Way Trident Connector
