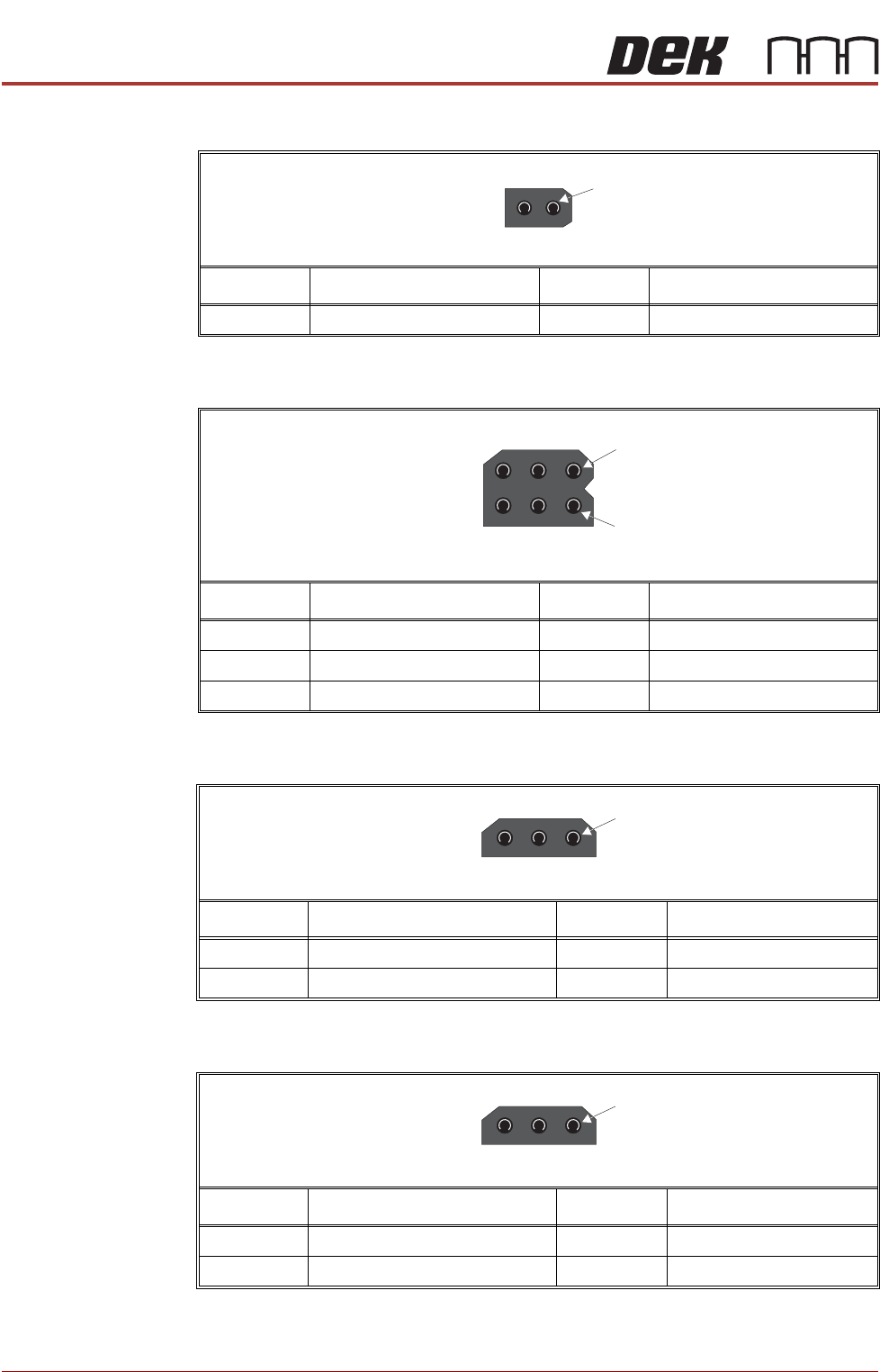

MACHINE CONTROL
CAN BUS
8.50 Technical Reference Manual Chapter Issue 4, Jun 18
N4SK4
N4SK5
N4SK6
N4SK7
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Home Right 5 Cleaner Home Left
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Solvent Pump (DUI) 3 Paper Feed Motor
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Cleaner Vacuum Power 2 0V
2 Way Trident Connector
1
Pin No. Signal Pin No. Signal
1+12V 30V
2 Cleaner Vacuum Sense
1
3 Way Trident Connector
MACHINE CONTROL
CAN BUS
Chapter Issue 4, Jun 18 Technical Reference Manual 8.51
N4SK8
N4SK9
N4SK10
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Levelness Screen Sensor 5 Levelness Cylinder Extended
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4 Way Trident Connector
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Board Present 5 Product Sensor
30V 60V
4
1
6 Way Trident Connector
MACHINE CONTROL
CAN BUS
8.52 Technical Reference Manual Chapter Issue 4, Jun 18
N4SK11
N4SK12
N4SK13
N4SK14
Pin No. Signal Pin No. Signal
1 Oscillating Motor 2 0V
2 Way Trident Connector
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Dropped 5 Spare Input
30V 60V
4
1
6 Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 30V
2 Spare Input
1
3 Way Trident Connector
Pin No. Signal Pin No. Signal
1+12V 30V
2 Spare Input
1
3 Way Trident Connector
