Proven & Robust Innovative Standard and Optional Features Camalot Inside Only ITW EAE, with industry-leading core competencies in printer AND dispenser technologies, can bring both together to the customer’s advantag…
High Performance
Momentum:
Thinking Ahead
Momentum’s
Patented Technology
• EnclosedFlow™ Print System
• Paste Management System
• Camalot Inside
• EdgeLoc™ Board Clamping
• RapidClean™
• Auto Pin Placement
• RapidView™ Inspection
• BridgeVision®
• StencilVision™
• Closed-loop
SPI Print Optimizer
• Benchmark™ 5.0
Momentum
®
II HiE & Elite
The MPM Momentum II
is designed to meet the
ever-growing challenges
of today’s electronics
manufacturing world:
high performance, user-
friendliness, space and
operational efficiency, and
flexibility.
The Momentum II HiE (for High Efficiency)
is a single-rail printer with servo motors,
rather than stepper motors, driving the
vision system’s X, Y, and Z axes. Faster than
steppers, servos drive the vision gantry at
higher speed and thus increase throughput
and cut cycle time, making the Hi-E an
efficient high volume printer.
The Momentum II Elite is the top-performer
of the Momentum series, boasting the
highest throughput and shortest cycle times
of all. It is configured with a highly efficient
triple track rail system featuring an input
buffer, a central processing section, and an
output buffer.
Repeatable Printing Quality for High Yields
Momentum II is designed and built to be a no-nonsense production machine. Cost-efficient
and featuring a modest footprint, it grows with the user; innovative patented features can
be added on or retrofitted as needed as the user’s throughput demands grow. Numerous
patents protect the Momentum, which incorporates tried and true systems and features from
other successful MPM printers that were designed prior to Momentum II (and still in use
today). Momentum’s alignment repeatability is ±11 microns @ 6 sigma, Cpk ≥2. Its 6 sigma
capability is designed in and independently verified. Wet print accuracy is ±17 microns @ 6
sigma, Cpk ≥2. Tighter performance tolerances mean higher repeatability with fewer defects.
Momentum® II New Features
¡ Newly designed cover set with larger window and wider access inside the printer.
¡ Adjustable stencil shelf for exibility handling board varieties.
¡ EdgeLoc II and EdgeLoc+ precise board clamping.
¡ New jar paste dispenser for increased productivity.
¡ Solder paste roll height monitoring for yield improvement and traceability.
¡ Solder paste temperature monitoring for yield improvement and traceability.
¡ Quick release squeegee for faster changeover.
¡ Upgraded Benchmark GUI with customizable production page and Quickstart program.
¡ Windows 10 operating system.
Best Performance Closed-loop Squeegee
Momentum II oers an advanced print head with a high precision load cell with closed-
loop pressure control and motor drive system enabling precise and consistent squeegee
force control across print stroke in both directions, which helps improve yields especially for
challenging thin substrate printing and stencil printing applications, such as semicon back
end packaging.
Proven & Robust
Innovative Standard and Optional Features
Camalot Inside
Only ITW EAE, with industry-leading
core competencies in printer AND
dispenser technologies, can bring
both together to the customer’s
advantage. Camalot Inside consists of
two dispense pumps integrated into
one printing machine. Camalot Inside
provides ultimate flexibility, allowing
the dispensing of two different
materials, or the same material
(doubling dispense throughput
speed) with two needle sizes to easily
administer multiple dot sizes.
EnclosedFlow™
The MPM EnclosedFlow Print Head
delivers uniform aperture filling
and superb printing performance
especially for fine pitch devices,
with tremendous savings on solder
paste over squeegee blade printing
– in excess of 50% over blades for
dramatically fast ROI. Printing fine
features such as 01005s and 0.3mm
pitch CSPs with up to 50% greater
volume and 25% lower deviation than
metal blades.
RapidClean™
RapidClean is a high speed stencil
solvent cleaning innovation that
slashes cycle time and improves
stencil cleaning performance,
especially for fine-pitch. RapidClean
reduces 3 wipe strokes to 2 and cuts
cycle time by 5 – 6 seconds per print
cycle over the standard wiper; and
because fewer cleaning cycles are
required, RapidClean can save up to
$10K USD per annum in paper savings
per printer.
Triple Track Rail System
(Elite only)
A highly efficient triple track rail system
featuring an input buffer, a central
processing section, and an output
buffer. A new board can be indexed
into the machine and positioned
next to the centernest, readying to
print, while the two others are being
loaded and off loaded. Cycle time is
shortened because boards don’t have
to move single file through the printer.
Instead of one board at a time linear
processing, cycle time can be shaved
by buffering PCBs inside the machine.
Momentum
®
II HiE & Elite
Momentum
®
II HiE & Elite
Momentum
®
II HiE & Elite

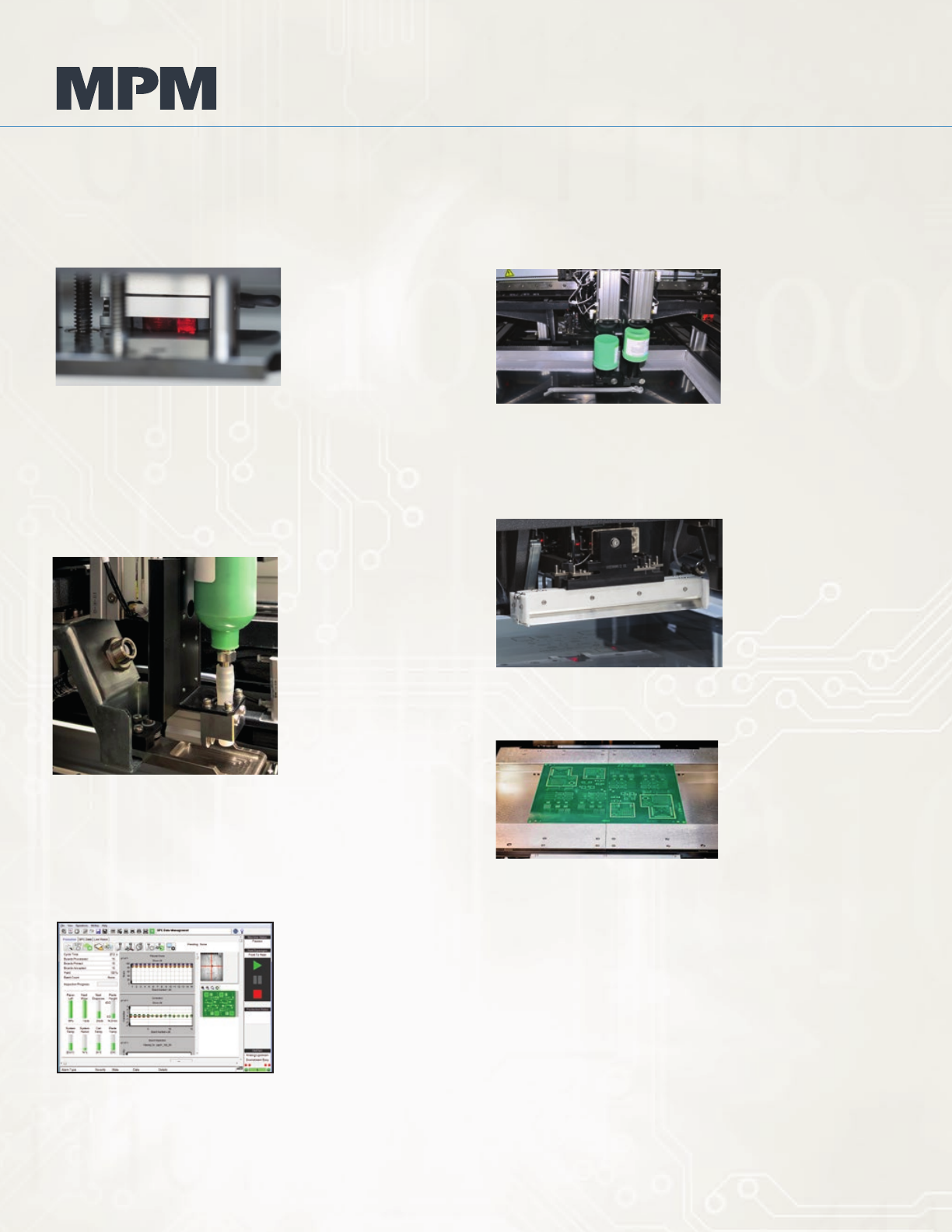

Features and Enhanced Technology that Deliver Measurable Value.
NEW Paste Height Monitor
The Paste Height
Monitor is designed to
prevent defects caused
by inadequate volumes
of paste on the stencil.
It combines advanced
software and sensor technology to accurately monitor the
paste bead for volume consistency. Upper and lower limit
roll-height monitoring eliminates insufficient or excess paste
volumes. It is a non-contact solution that can automatically
add more paste to the stencil as it is needed.
NEW Paste Temperature Monitor
Temperature monitoring
ensures proper paste
viscosity to avoid
bridging and voiding.
MPM patent-pending
paste temperature
monitor allows paste
to be measured in the
cartridge or on the
stencil.
NEW Automatic Paste Dispensing System
Dispense for standard
cartridges or choose the
new patent-pending
jar dispenser. Paste
is released in precise,
measured amounts
across the stencil in a
clean, uniform bead. Deposition volumes, frequency and
placement are user programmable.
NEW Quick Release Squeegee
New quick release
squeegee blades makes
changing blades quick
and easy with no tools
required. It takes less
than 30 seconds to
change the blade.
Updated Benchmark™ User Interface
Easy to learn and use for the average operator, MPM’s
Benchmark software is powerful yet intuitive, and facilitates
rapid setup, assists with operational tasks, and makes
changeover quick and easy. The software has been
upgraded to Windows
10 and new production
tools and new Quickstart
programming to make it
even easier to use.
NEW EdgeLoc™ Board Clamping
The EdgeLoc system
uses a side snugging
technique that removes
the need for top clamps
which interfere with the
PCB to stencil contact.
The result is optimal gasketing and more volumetrically
consistent edge-to-edge prints. With EdgeLoc II, robust
flippers engage to secure the board across the top edge
ensuring board flatness then move out of the way once
the board is firmly gripped from the side. EdgeLoc+ board
clamping can change between edge and top clamping
simply through software.
NEW Adjustable Stencil Shelf
Provides the exibility to handle all stencil sizes with
a simple adjustment of the shelf. The robust design
provides better stability on all stencil sizes.
