Data reader 1D and 2D_20211123_100126
Data reader 1D and 2D Page 1 / 3 23.11.2021
Data reader 1D and 2D
Page 1 / 3 23.11.2021
Data reader 1D and 2D
Page 2 / 3 23.11.2021
Data reader 1D and 2D
Page 3 / 3 23.11.2021
Pos. Item no. Description Part marking
00519880-01 PCB-BARCODE READER 1D-CODES
SX MACHINE

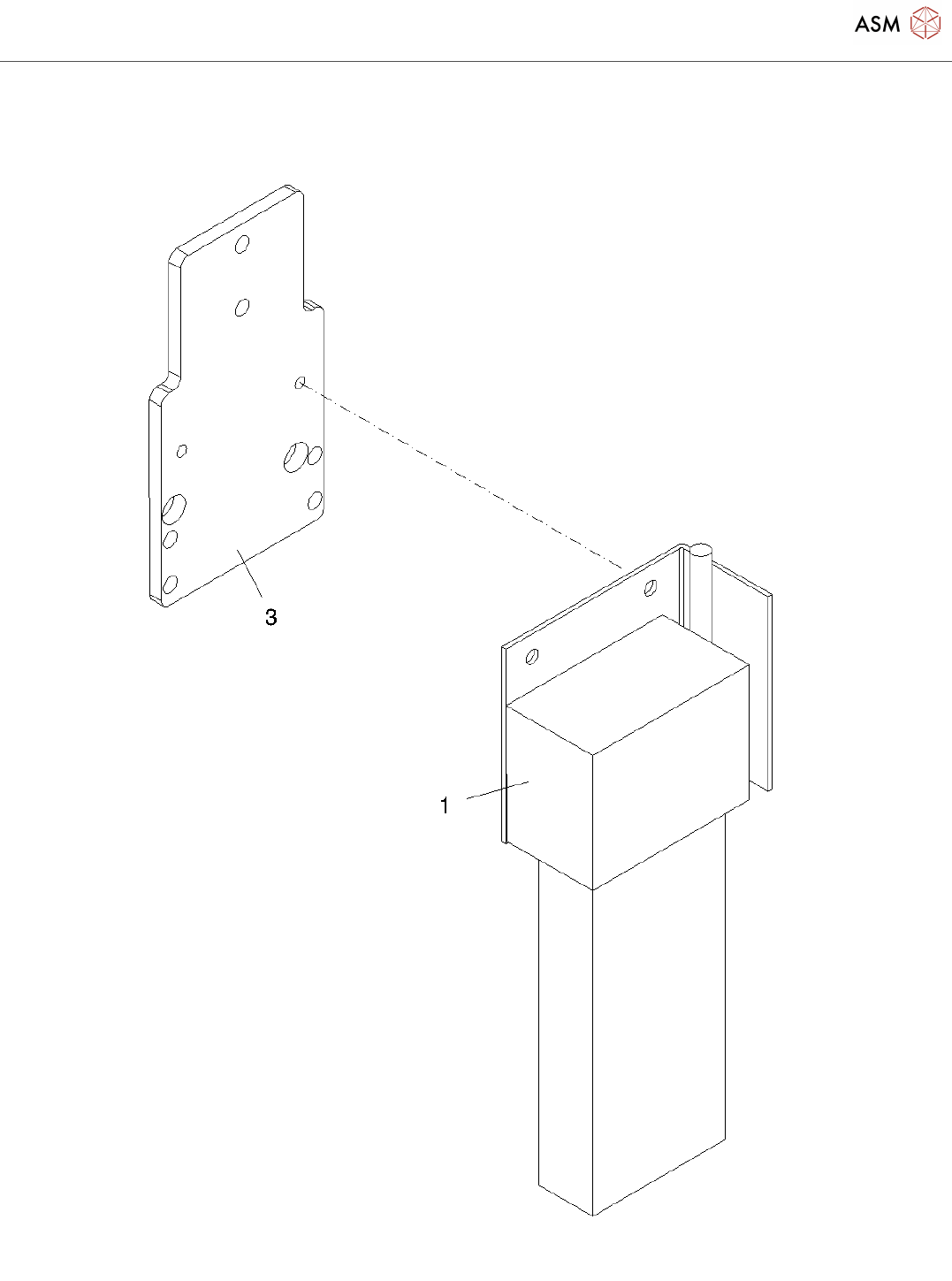

1 03078082-01 DS1500 KPL.
00519881-01 PCB-BARCODE READER 2D-CODES
X/SX MACHINE

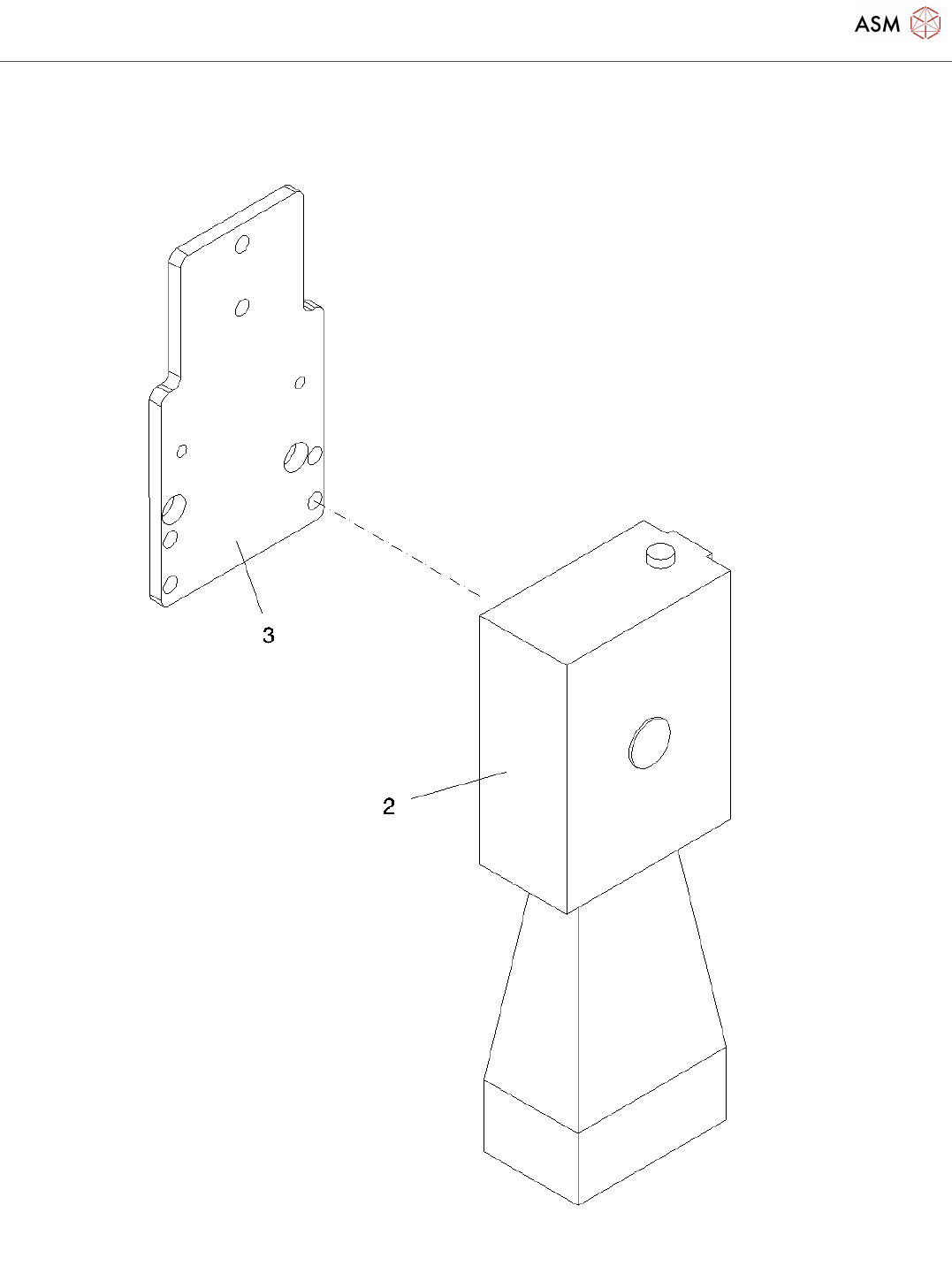

2 03055769-01 2D-BARCODE READER
3 03078083-01 FIXING PLATE DS1500
00519838S01 MOUNTINGKIT PCB BARCODE
MECHANICS 1D SX4
Spare
03066808-01 ISO 7092 - 3 - 200 HV - A2 STANDARD PARTS
03042532-01 ISO 4762 - M 2,5 X 5-A2-70 STANDARD PARTS
03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
03045200-01 DIN EN ISO 7380-M4 X 6-A2-70 STANDARD PARTS
00304932-01 AMPMODU CONNECTOR SOCKET
2X5POLE
SPARE PART
00304932-01 AMPMODU CONNECTOR SOCKET
2X5POLE
SPARE PART
03074536-01 USB EXTENSION CABLE A-PLUG - A-
JACK 1.5M
SPARE PART
03053145-02 USB HUB 2.0 4-PORT DUB-H4 SPARE PART
00519839S01 MOUNTINGKIT PCB BARCODE
MECHANICS 2D SX4
Spare Part
00316904-01 DIN 125-A 3,2-140HV-A2
03042532-01 ISO 4762 - M 2,5 X 5-A2-70 STANDARD PARTS
00304932-01 AMPMODU CONNECTOR SOCKET
2X5POLE
SPARE PART
03032359-01 USB EXTENSION CABLE A-PLUG - A-
JACK 5M
Spare Part
00304932-01 AMPMODU CONNECTOR SOCKET
2X5POLE
SPARE PART
03032359-01 USB EXTENSION CABLE A-PLUG - A-
JACK 5M
Spare Part
03032359-01 USB EXTENSION CABLE A-PLUG - A-
JACK 5M
Spare Part
03032359-01 USB EXTENSION CABLE A-PLUG - A-
JACK 5M
Spare Part
03053145-02 USB HUB 2.0 4-PORT DUB-H4 SPARE PART
03074536-01 USB EXTENSION CABLE A-PLUG - A-
JACK 1.5M
SPARE PART
03078149-02 CABLE HUB SUPPLY SPARE PART
